PP 751 HIA - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 124802 Parts Diagram

Walk-Behind Mower

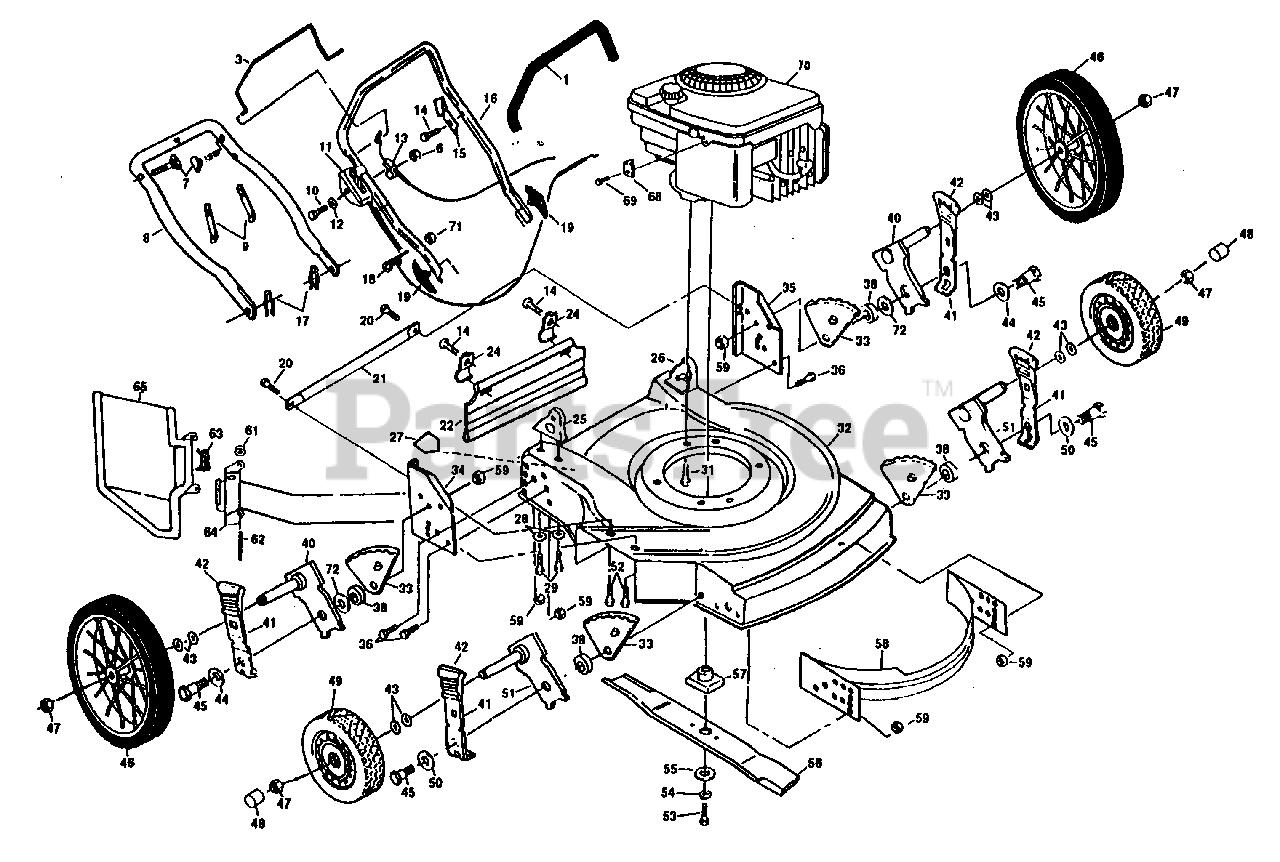

MOWER ASSEMBLY, ENGINE B/S 124802 Parts Diagram

  • Title

1

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

3

Poulan 532131036

Control Bar (AYP part number)
(Superseded to 532851659)

$15.99

$

Usually ships in 3-10 days

0

6

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532131959

Handle Bolt 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

8

Poulan 532125377

Lower Handle (AYP part number)

$

$

Not available

9

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532086055

Machine Screw 1/4-20 x 2-1/8 (AYP part number)

$

$

Not available

11

Poulan 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

12

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 532130861

Engine Zone Control Cable

$12.99

$

In Stock, only 1 left!

0

14

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

15

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

16

Poulan 532125271

Upper Handle (AYP part number)

$

$

Not available

17

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

In Stock, only 1 left!

0

18

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 8

0

19

Poulan 532136376

Handle Knob (AYP part number)
(Superseded to 532183724)

$

$

Not available

20

Poulan 532054583

Self-tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

21

Poulan 532107611

Support Rod (AYP part number)

$

$

Not available

22

Poulan 532134254

Rear Skirt (AYP part number)
(Superseded to 532140539)

$

$

Not available

24

Poulan 532125207

Skirt Bracket (AYP part number)
(Superseded to 532087584)

$

$

Not available

25

Poulan 532139532

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

26

Poulan 532139533

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

27

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

28

Poulan 532059289

Washer (AYP part number)

$4.99

$

In Stock, only 3 left!

0

29

Poulan 532055187

Thread Cutting Screw 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

31

Poulan 532850998

Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

32

Poulan 532702159

Lawn Mower Housing

Note: (Includes Key No. 27 & 58)

$

$

Not available

33

Poulan 532850955

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532139901)

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 532125166

Wheel Support Bracket (Right) (AYP part number)

$

$

Not available

35

Poulan 532125165

Wheel Support Bracket (Left) (AYP part number)

$

$

Not available

36

Poulan 874760612

Hex Head Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, Qty 19

0

38

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532125373

Axle Arm Assembly (Rear) (AYP part number)

$

$

Not available

41

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$4.99

$

In Stock, Qty 11

0

42

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

43

Poulan 532057143

Washer (AYP part number)
(Superseded to 532428450)

$7.99

$

In Stock, only 3 left!

0

44

Poulan 532061651

Washer (AYP part number)
(Superseded to 61651)

$2.99

$

Usually ships in 3-10 days

0

45

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

46

Poulan 532107620

Wheel & Tire Assembly (AYP part number)

$

$

Not available

47

Poulan 532083923

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

48

Poulan 532851908

Hubcap (AYP part number)

$

$

Not available

49

Poulan 532702666

Wheel & Tire Assembly

$

$

Not available

50

Poulan 532062335

Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

51

Poulan 532125169

Axle Arm Assembly (Front) (AYP part number)
(Superseded to 532750610)

$

$

Not available

52

Poulan 532851856

Hex Screw W/Sems 1/4-20 3/8 (AYP part number)
(Superseded to 817600406)

$6.49

$

In Stock, Qty 5

0

53

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532850263

Helical Washer 3/8 (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

55

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

56

Poulan 532850973

22" Blade
(Superseded to 532406713)

$14.99

$

In Stock, Qty 20+

0

57

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

58

Poulan 532139771

Front Baffle & Rear (AYP part number)
(Superseded to 532700929)

$

$

Not available

59

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

Poulan 532083731

Speed-Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

62

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 12

0

63

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

64

Poulan 532125175

Housing Bracket Assembly (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 532851750

Discharge Guard

$

$

Not available

68

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

69

Poulan 532083816

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

71

Poulan 873510400

Locknut, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

72

Poulan 532088348

Flat Washer 3/8 (AYP part number)

$7.49

$

In Stock, only 4 left!

0

Poulan 532700490

Owner's Manual (English) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532701429

Owner's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532702162

Replacement Parts Manual

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0

Poulan GCK2200

Grass Catcher (AYP part number)

$

$

Not available

Poulan MK1000

Mulcher Kit (AYP part number)

$

$

Not available
