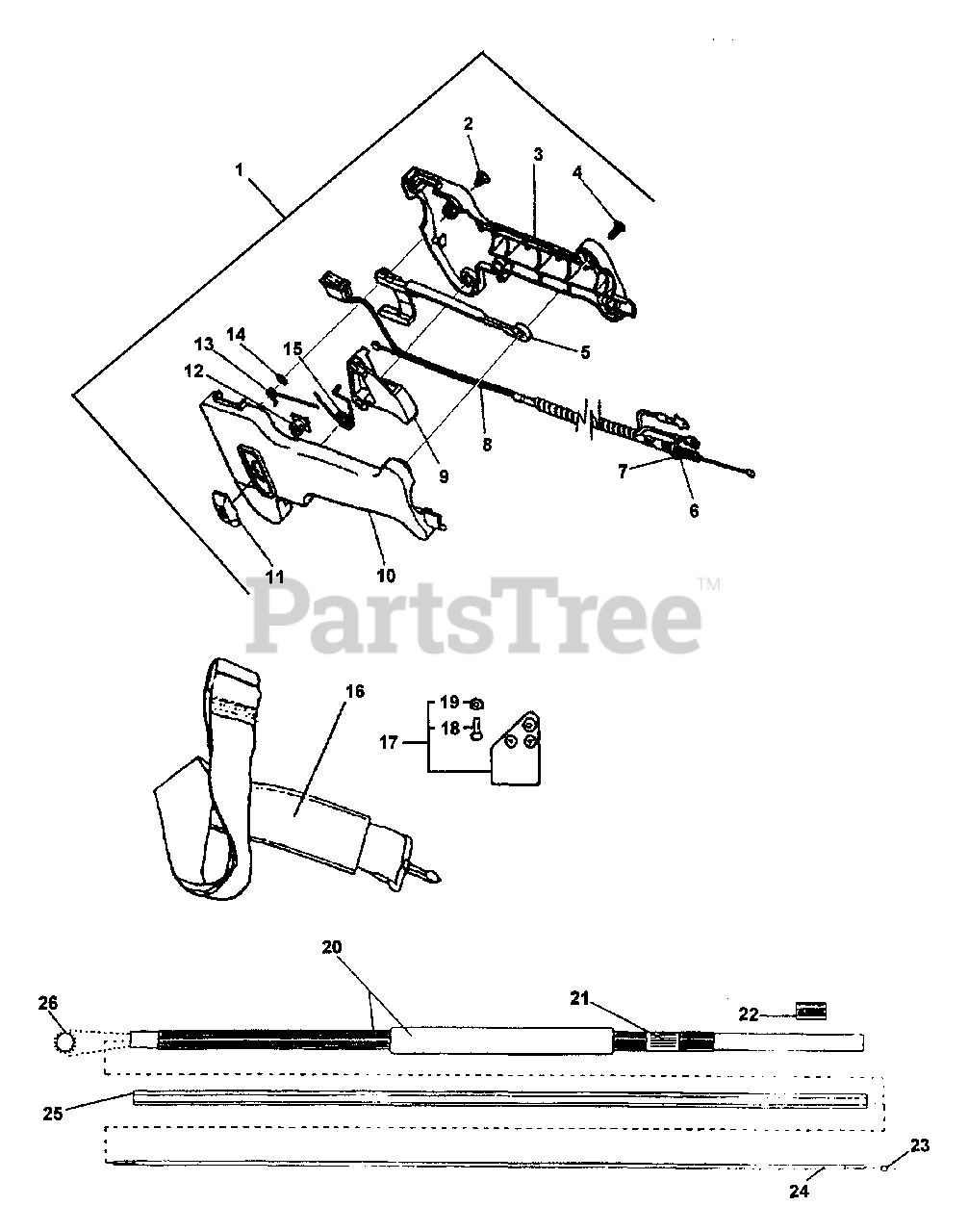

PP-800 - Echo Pole Saw (Type 1E) Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 17800322060

CONTROL HANDLE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2 - 15

$

$

Not available

2

Echo 90005500200

SCREW - 12 X 1/2"
(Superseded to Discontinued)

$

$

Not available

3

Echo 35111022060

HANDLE - RIGHT
(Superseded to Discontinued)

$

$

Not available

4

Echo 90005900100

SCREW
(Superseded to Discontinued)

$

$

Not available

5

Echo 17809022060

LOCKOUT, THROTTLE

$3.49

$

In Stock, only 4 left!

0

6

Echo 17802022060

WASHER - 6
(Superseded to Discontinued)

$

$

Not available

7

Echo 43723522060

NUT - 6
(Superseded to Discontinued)

$

$

Not available

8

Echo 17810022260

CONTROL CABLE ASSY
(Superseded to Discontinued)

$

$

Not available

9

Echo 17801022060

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 35112922060

HANDLE, CONTROL - LEFT
(Superseded to Discontinued)

$

$

Not available

11

Echo 17812722060

SWITCH, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 17801222060

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 17801322060

SPRING, LOCKOUT LEVER
(Superseded to Discontinued)

$

$

Not available

14

Echo 66031622160

NUT, SPEED

$1.49

$

Usually ships in 2-4 days

0

15

Echo 17804322060

SPRING, TRIGGER
(Superseded to Discontinued)

$

$

Not available

16

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 12

0

17

Echo 30061022160

HANGER KIT
(Superseded to 30060522160)

Note: INCLUDES ITEMS 18 & 19

$

$

Not available

18

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

19

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

20

Echo 61029922660

MAIN PIPE ASSY

$76.99

$

Usually ships in 2-4 days

0

21

Echo 89016022260

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

22

Echo 17812722160

SLEEVE, HOUSING 2-5/8"
(Superseded to V475000040)

Note: TO BE ANNOUNCED

$4.49

$

Usually ships in 2-4 days

0

23

Echo 90003810100

LOCKWASHER - INTERNAL

$1.49

$

Usually ships in 2-4 days

0

24

Echo 61001322060

DRIVESHAFT - FLEXIBLE

$17.99

$

Usually ships in 2-4 days

0

25

Echo 61021722060

LINER - FLEXIBLE
(Superseded to 61021722061)

$22.99

$

In Stock, only 1 left!

0

26

Echo 90003800100

LOCKWASHER - EXTERNAL

$0.99

$

In Stock, Qty 8

0
