PP 850 PX - Poulan Pro Walk-Behind Mower DRIVE ASSEMBLY Parts Diagram

Walk-Behind Mower

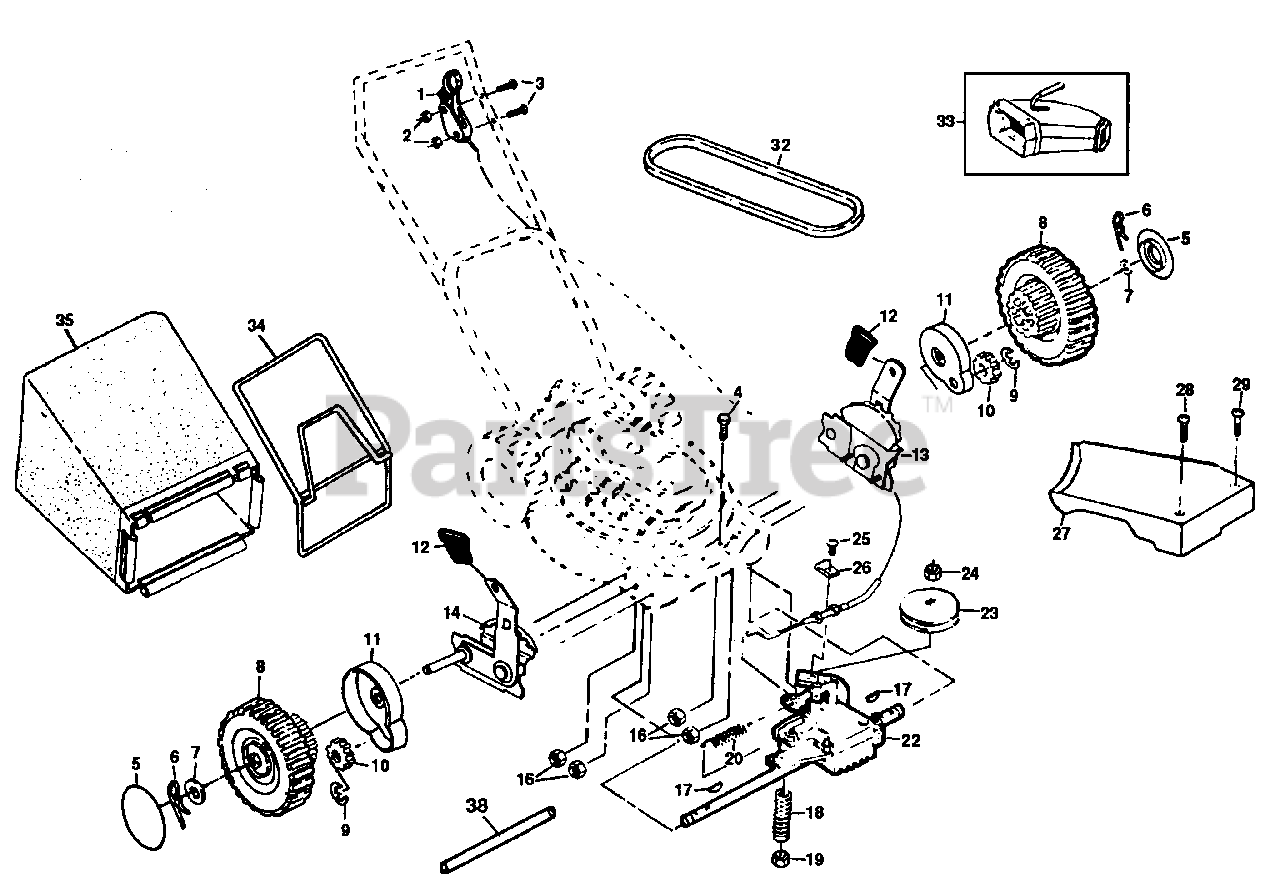

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532133051

Drive Control (AYP part number)

$

$

Not available

2

Poulan 532074189

Locknut #10-24 (AYP part number)

$

$

Not available

3

Poulan 532750029

Pan Head Machine Screw #10-24 x 2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 874760444

Hex Head Bolt 1/4-20 x 2-3/4 (AYP part number)

$

$

Not available

5

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

6

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532134613

Wheel & Tire Assembly 8.00 x 1-3/4

$

$

Not available

9

Poulan 812000003

E-ring

$

$

Not available

10

Poulan 532074507

Pinion (AYP part number)

$

$

Not available

11

Poulan 532076401

Dust Cover (AYP part number)

$

$

Not available

12

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 532851032

Wheel Adjuster Assembly (Left) (AYP part number)

$

$

Not available

14

Poulan 532851031

Wheel Adjuster Assembly (Right) (AYP part number)

$

$

Not available

16

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 532065692

Woodruff Key #3 (AYP part number)

$

$

Not available

18

Poulan 532083632

Spring (AYP part number)
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

19

Poulan 532068038

Locknut 1/4-20 (AYP part number)
(Superseded to 73850400)

$

$

Not available

20

Poulan 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532132232

Gear Case Assembly (AYP part number)
(Superseded to 532048281)

$

$

Not available

23

Poulan 532131482

Drive Pulley (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 532132010

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532750108

Pan Head Self-tapping Screw #10-24 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 532083700

Cable Clamp (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

27

Poulan 532133215

Drive Cover (AYP part number)

$

$

Not available

28

Poulan 532075725

Pan Head Machine Screw #10-24 x 2-3/4 (AYP part number)

$

$

Not available

29

Poulan 874981028

Pan Head Machine Screw #10-24 x 1-3/4 (AYP part number)

$

$

Not available

32

Poulan 532083691

V-Belt

$

$

Not available

34

Poulan 532133413

Frame Grass Bag 2-1/2 (AYP part number)

$

$

Not available

35

Poulan 532134724

Grass Bag 2-1/2 Soft

$

$

Not available

38

Poulan 532086012

Drive Shaft Cover (AYP part number)

$

$

Not available
