PP LGT 2248 (960480093-00) - Poulan Pro Lawn Tractor (2015-09) ENGINE Parts Diagram

Lawn Tractor

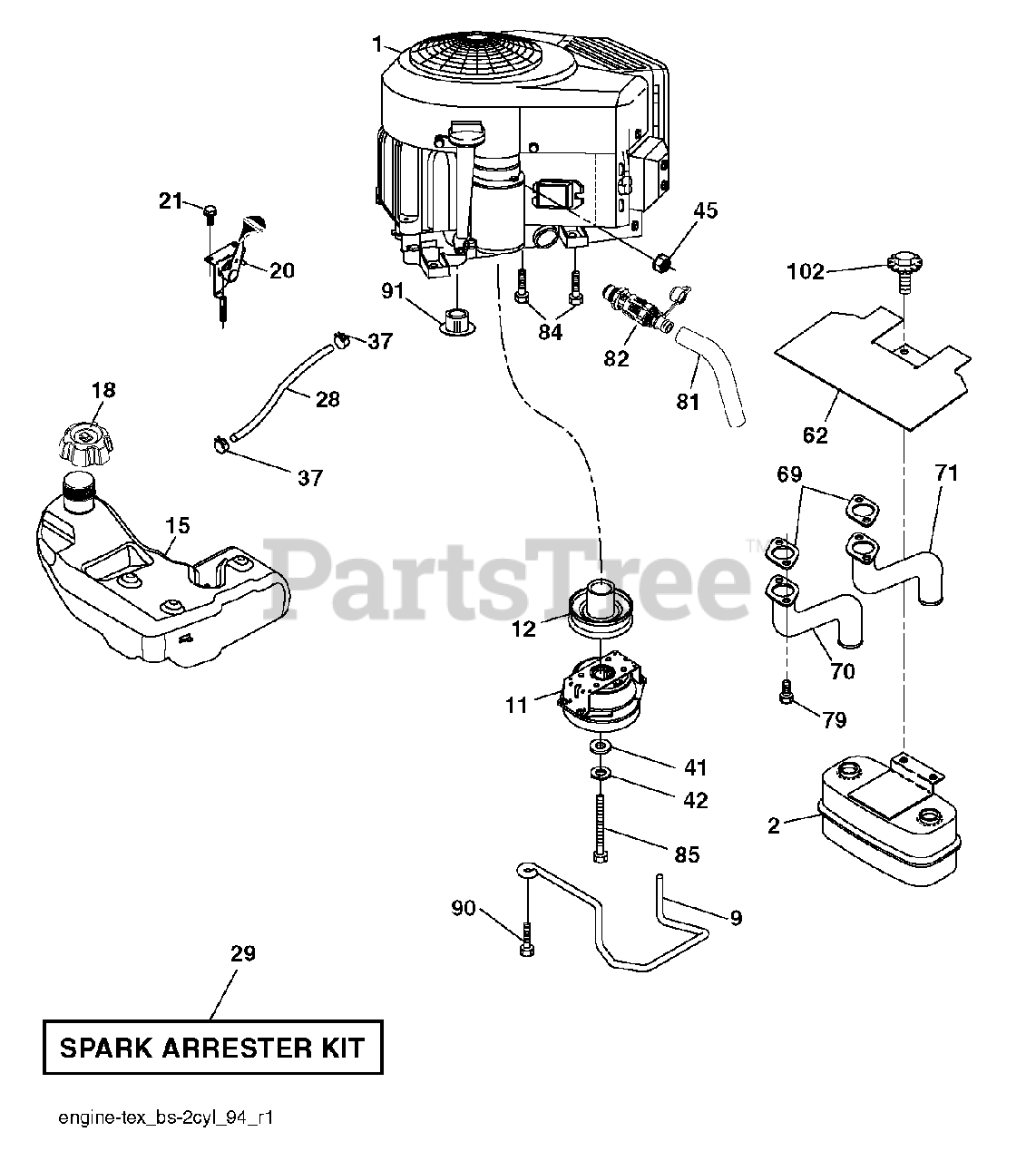

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: B S MODEL 44N677-0006-G1 (587798101)

$

$

Not available

2

Poulan 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$56.99

$

In Stock, only 3 left!

0

9

Poulan 584908001

KEEPER BELT ENGINE
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

11

Poulan 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$250.99

$

In Stock, Qty 20+

0

12

Poulan 532194343

PULLEY ENGINE

$51.99

$

In Stock, only 2 left!

0

15

Poulan 532193499

TANK.FUEL.4GAL

$96.99

$

In Stock, only 1 left!

0

18

Poulan 584248701

Fuel Tank Cap Assembly, 3" N-EPA Black

$20.99

$

In Stock, only 1 left!

0

20

Poulan 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$26.99

$

In Stock, Qty 10

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

28

Poulan 587044664

HOSE.1/4".FUEL.LINE.64".LENGTH

$

$

Not available

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$193.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

Poulan 532126197

WASHER

$7.99

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 19

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Poulan 581881101

EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 532159955)

$34.99

$

In Stock, Qty 5

0

71

Poulan 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK
(Superseded to 532160589)

$28.99

$

In Stock, only 3 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

84

Poulan 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

85

Poulan 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, only 4 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

91

Poulan 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

102

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0
