PPB 100 E - Poulan String Trimmer, Type 2 (2007-09) Shaft Parts Diagram

String Trimmer, Type 2

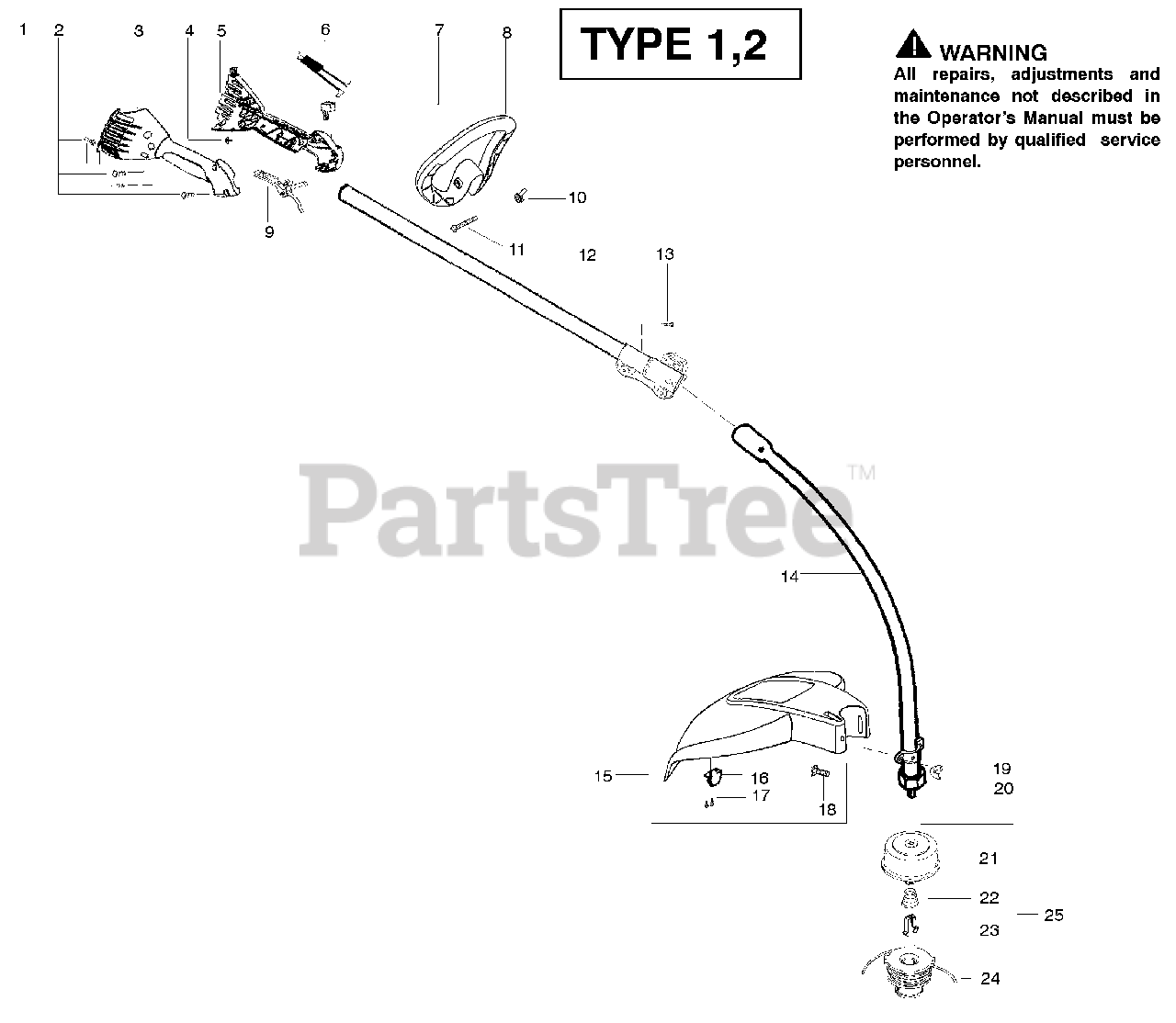

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

3

Electrolux/AYP 530057983

Hsg.-Throttle right

$

$

Not available

4

Electrolux/AYP 530016326

Screw-Cable Retention

$

$

Not available

5

Electrolux/AYP 530057984

Hsg.-Left throttle

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530058583

Assy-Assist Handle

Note: (Incl . 10,11)

$8.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 545006039

Kit-Upper Shaft

Note: (Incl. flex, clamp & 13)

$

$

Not available

13

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545024301

Kit-Lower Shaft
(Superseded to 530071788)

$66.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530071802

Kit-Shield Assy.

Note: (incl. 16,17,18,19)

$26.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

17

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530057559

Dustcup

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530095776

Assy-Hub/Arbor
(Superseded to 530071306)

$

$

Not available

22

Electrolux/AYP 530053241

Spring-Return

$

$

Not available

23

Electrolux/AYP 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 5

0

24

Electrolux/AYP 952711624

Accy-Wound Spool

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 952711630

Accy-Cutting Head

Note: ( Incl. 21,22,23,24)

$

$

Not available

25

Electrolux/AYP 545137273

Operator Manual

Note: Not Shown

$

$

Not available

25

Electrolux/AYP 530056220

Decal-Shaft Warning
(Superseded to 545209101)

Note: Not Shown

$

$

Not available

25

Electrolux/AYP 530056221

Decal-Upper Shaft

Note: Not Shown

$

$

Not available
