PPB 100 - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

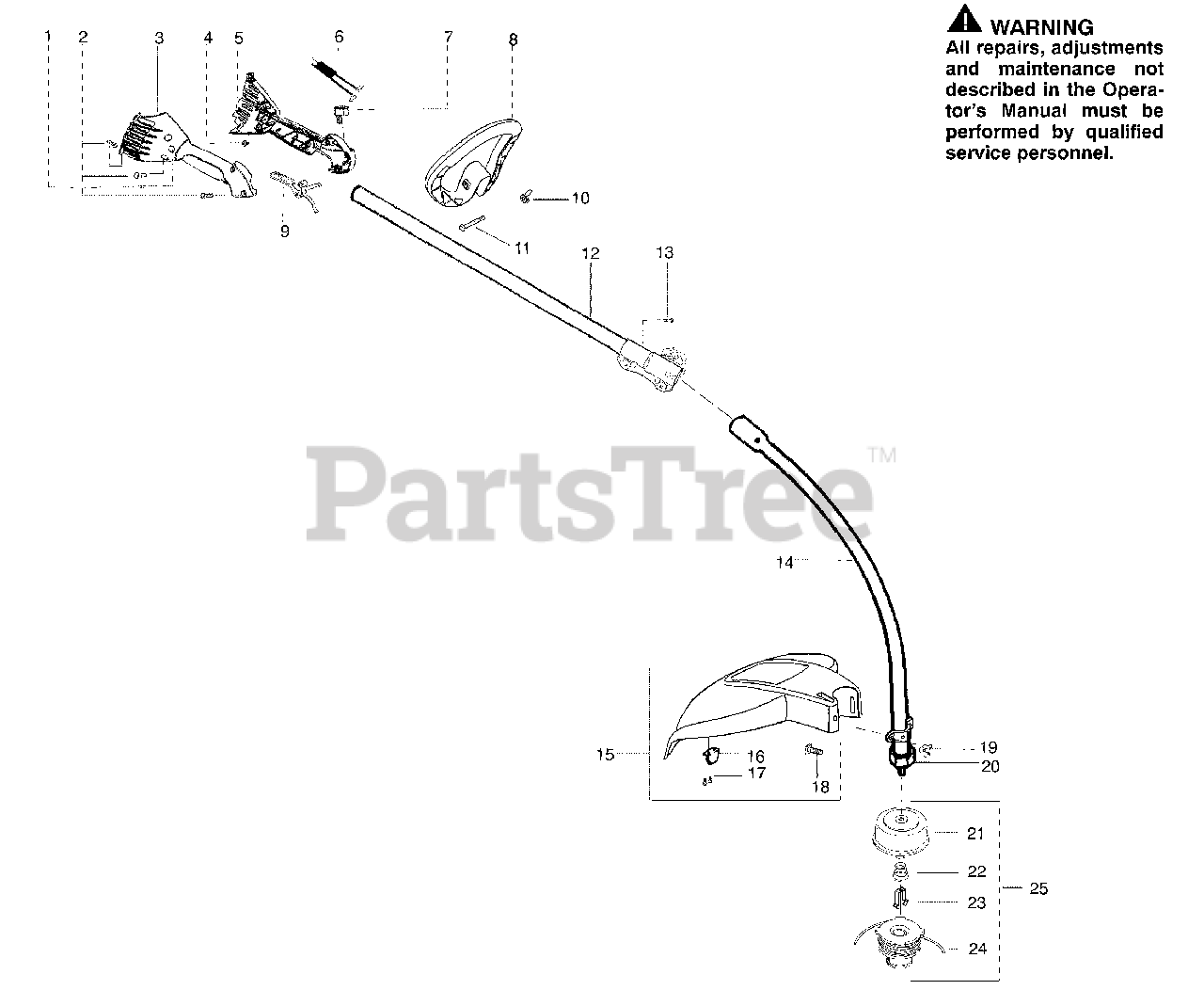

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 16

0

3

Poulan 530057983

Hsg.-Throttle right

$

$

Not available

4

Poulan 530016326

Screw-Cable Retention

$

$

Not available

5

Poulan 530057984

Hsg.-Left throttle

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Poulan 530057546

Handle-Assist
(Superseded to 530058583)

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Poulan 530071791

Assy-Upper Shaft
(Superseded to 575260201)

Note: Incl. flex, clamp & 13

$44.99

$

Usually ships in 3-10 days

0

13

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 545024301

Assy-Lower Shaft
(Superseded to 530071788)

$66.99

$

In Stock, only 1 left!

0

15

Poulan 530071802

Kit-Shield Assy.

Note: incl. 16,17,18,19

$26.99

$

Usually ships in 3-10 days

0

16

Poulan 530052286

Limiter-Line

$

$

Not available

17

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

18

Poulan 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

19

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 530057559

Dustcup

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 530095776

Assy-Hub/Arbor
(Superseded to 530071306)

$

$

Not available

22

Poulan 530053241

Spring-Return

$

$

Not available

23

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 5

0

24

Poulan 952711624

Accy-Wound Spool

$8.99

$

Usually ships in 3-10 days

0

25

Poulan 952711630

Accy-Cutting Head

Note: Incl. 21-24

$

$

Not available

Poulan 545123428

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530056220

Decal-Shaft Warning
(Superseded to 545209101)

Note: Not Shown

$

$

Not available

Poulan 530056221

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available
