PPB 1000 E - Poulan String Trimmer, Type 3 (2009-02) Cutting Equipment - Type 3 Parts Diagram

String Trimmer, Type 3

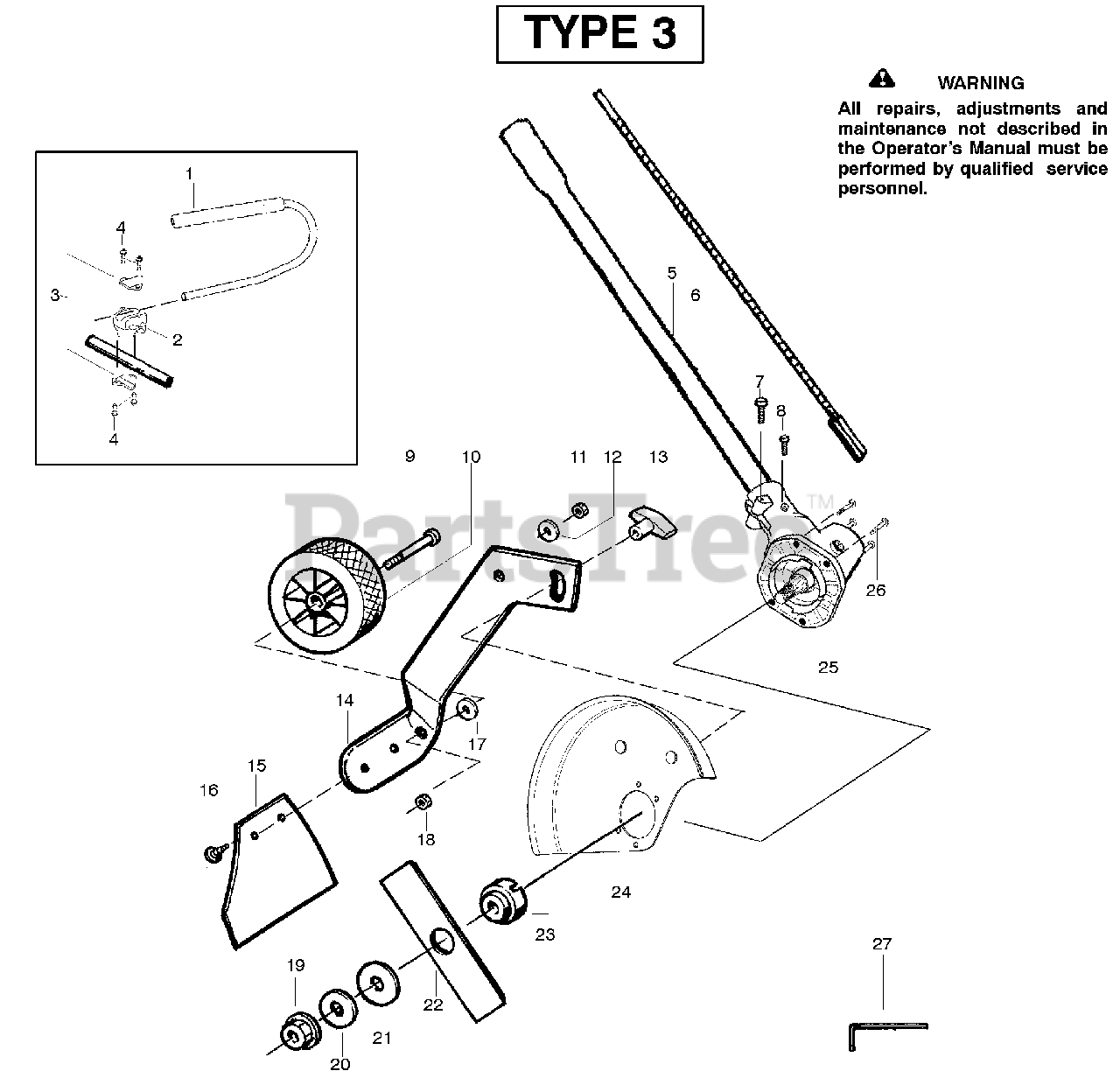

Cutting Equipment - Type 3 Parts Diagram

  • Title

1

Electrolux/AYP 530071394

Kit-Handlebar

$12.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530058766

Clamp-Handlebar ( 7/8" )

$

$

Not available

2

Electrolux/AYP 530058765

Clamp-Handlebar ( 1" )

$

$

Not available

3

Electrolux/AYP 530058563

Bracket-Clamp

$4.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

5

Electrolux/AYP 530071913

Assy.-Driveshaft
(Superseded to 545003364)

$27.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530096183

Flexshaft-Split boom

$

$

Not available

7

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530016224

Screw-Alignment

$4.99

$

In Stock, Qty 5

0

9

Electrolux/AYP 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530095125

Wheel-4" (rubber)

$8.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530053009

Bracket-Adj. Wheel

$12.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530071251

Kit-Mud Flap

Note: (incl.#16)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530053012

Fastener-Mud Flap

$3.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530015793

Nut-Flange (L.H.)

$6.49

$

In Stock, Qty 11

0

20

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

21

Electrolux/AYP 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 952711625

Accy-7.5" Blade

$

$

Not available

23

Electrolux/AYP 530054623

Dustcup

$10.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 530071930

Kit-Edger Guard

$21.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530071586

Kit-Gearbox

$

$

Not available

26

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, Qty 6

0

27

Electrolux/AYP 530031159

Wrench-Hex (5/32")

$4.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 545133458

Manual

Note: Not Shown

$

$

Not available

28

Electrolux/AYP 530095894

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

28

Electrolux/AYP 545005908

Decal-Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530053138

Decal-Guard Warning
(Superseded to 545074501)

Note: Not Shown

$

$

Not available
