PPB 150 E - Poulan Pro String Trimmer, Type 2 Handle & Shaft Assembly Type 1,2 Parts Diagram

String Trimmer, Type 2

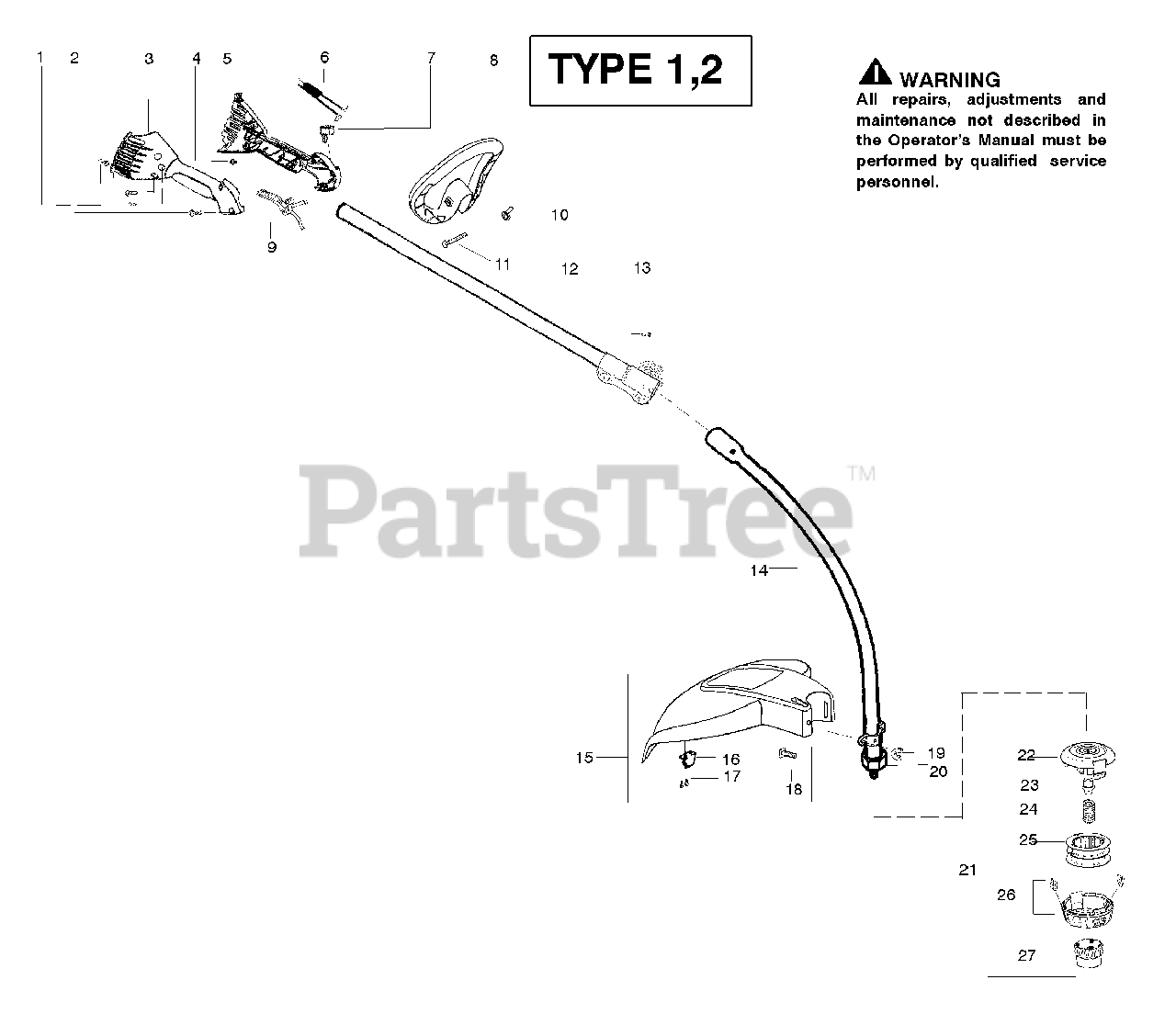

Handle & Shaft Assembly Type 1,2 Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

3

Poulan 530057983

Hsg.-Throttle right

$

$

Not available

4

Poulan 530016326

Screw-Cable Retention

$

$

Not available

5

Poulan 530057984

Hsg.-Left throttle

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Poulan 530058583

Assy-Assist Handle

Note: (Incl . 10,11)

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Poulan 545006039

Kit-Upper Shaft

Note: (Incl. flex, clamp & 13)

$

$

Not available

13

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 545024301

Kit-Lower Shaft
(Superseded to 530071788)

$66.99

$

In Stock, only 1 left!

0

15

Poulan 530071802

Kit-Shield Assy.

Note: (incl. 16,17,18,19)

$26.99

$

Usually ships in 3-10 days

0

16

Poulan 530052286

Limiter-Line

$

$

Not available

17

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

18

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 530057559

Dustcup

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 537419205

Assy-TNG7 Head
(Superseded to 537419214)

$28.99

$

In Stock, only 1 left!

0

22

Poulan 537419303

Housing

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 537419901

Adapter

$8.99

$

In Stock, only 4 left!

0

24

Poulan 537338801

Spring

$6.49

$

In Stock, Qty 7

0

25

Poulan 952711636

Accy-Wound Spool

$8.99

$

In Stock, only 1 left!

0

26

Poulan 545003365

Kit-Cover and Eyelet

$12.99

$

In Stock, only 3 left!

0

27

Poulan 537419601

Knob

$6.49

$

In Stock, Qty 20+

0

Poulan 545186744

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
