PPB 150 E - Poulan String Trimmer, Type 1 (2009-03) Engine - Type1 Parts Diagram

String Trimmer, Type 1

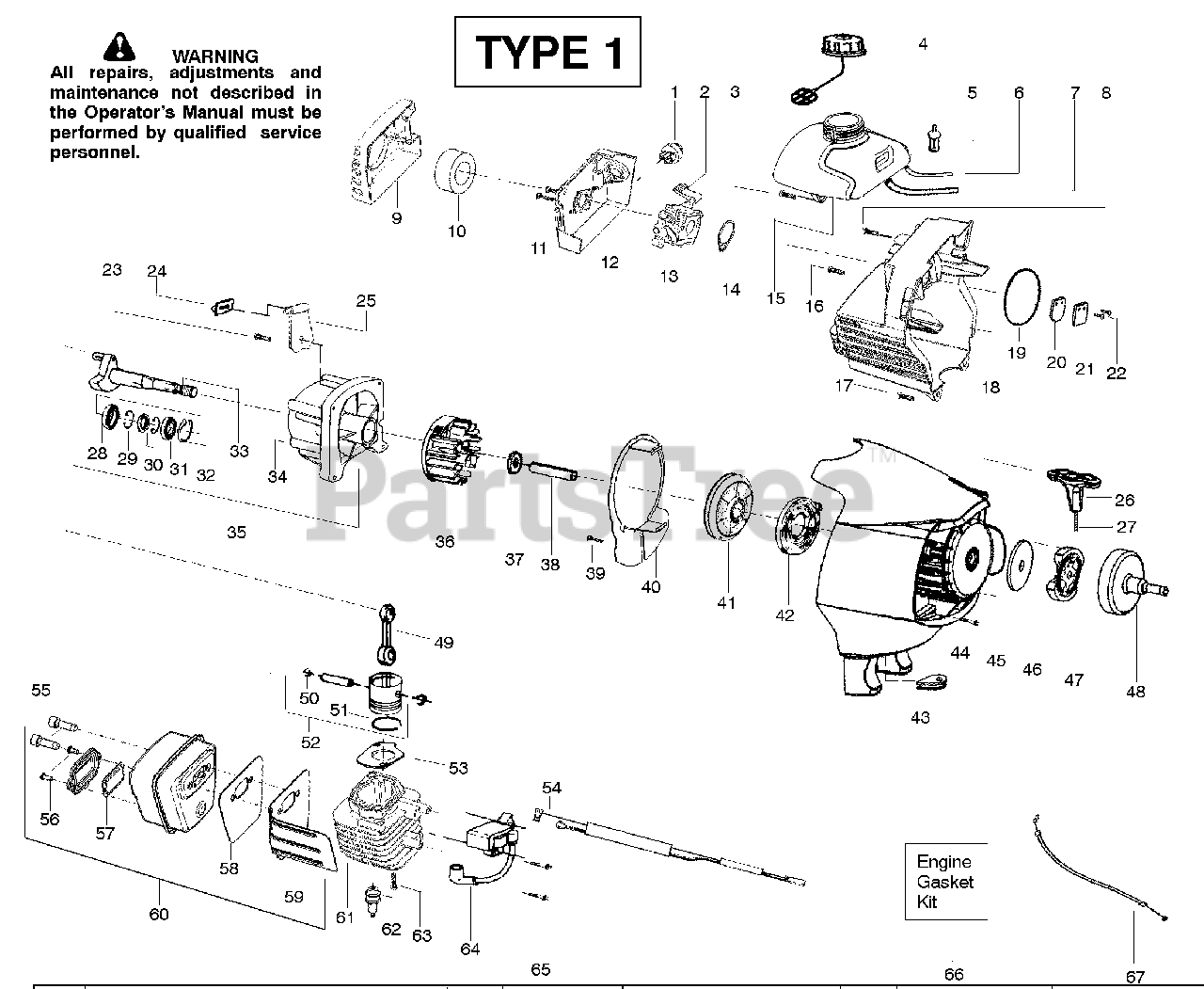

Engine - Type1 Parts Diagram

  • Title

1

Electrolux/AYP 530047721

Bulb-Purge

$6.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530015843

Screw-tank

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530049386

Cap-Fuel w/ret.
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530095646

Assy-Fuel pickup

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530071404

Kit-Fuel line
(Superseded to 530069247)

$6.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Fuel/Purge line

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 545000501

Cover-Air box

$6.49

$

In Stock, Qty 12

0

10

Electrolux/AYP 545082301

Filter-Air

$6.49

$

In Stock, Qty 9

0

11

Electrolux/AYP 530015849

Screw-Carb.

$6.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545000601

Box-Air

$

$

Not available

13

Electrolux/AYP 545006017

Kit-Carb assy. (C1U-W32)

$47.99

$

In Stock, Qty 7

0

14

Electrolux/AYP 545030102

Seal-Carb.(kit)

$

$

Not available

15

Electrolux/AYP 545075304

Assy-Fuel Tank
(Superseded to 545075305)

$

$

Not available

16

Electrolux/AYP 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

Electrolux/AYP 530015952

Screw-Shroud

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 545000701

Assy-Rear Shroud

$

$

Not available

19

Electrolux/AYP 545030102

O-ring-Shroud (kit)

$

$

Not available

20

Electrolux/AYP 530027593

Valve-Reed

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 530029781

Stop-Reed

$2.23

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016064

Screw-Reed stop

$4.99

$

In Stock, Qty 8

0

23

Electrolux/AYP 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530055492

Isolator-Tank

$

$

Not available

25

Electrolux/AYP 530054941

Ret.-Tank

$

$

Not available

26

Electrolux/AYP 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 545050410

Kit-Rope
(Superseded to 545050409)

$7.49

$

In Stock, only 3 left!

0

28

Electrolux/AYP 545081601

Bearing-Inner

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530015787

Retainer

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530019158

Seal

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530032102

Bearing-Outer

$

$

Not available

32

Electrolux/AYP 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530028807

Assy-Crankshaft

$28.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 545081901

Assy-Crankcase

Note: (Incl. 28,29,30,31)

$

$

Not available

35

Electrolux/AYP 545006037

Assy-C'case/C'shaft

Note: (Incl. 32,33,34)

$

$

Not available

36

Electrolux/AYP 530055524

Assy-Flywheel

$34.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530055620

Spacer

$7.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530015775

Screw-Baffle

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530054939

Plate-Baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 545050408

Kit-Pulley

$

$

Not available

42

Electrolux/AYP 545054901

Spring-Starter
(Superseded to 545008014)

$7.49

$

In Stock, Qty 9

0

43

Electrolux/AYP 530019182

Grommet

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530015810

Screw-F/hsg.
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

45

Electrolux/AYP 530059254

Assy-Fan Housing

$

$

Not available

46

Electrolux/AYP 530094189

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

47

Electrolux/AYP 530055122

Assy-Clutch

$13.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 530150247

Assy-Drum/Adapter

$31.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530015162

Ret.-Piston pin

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530012594

Ring-Piston

$

$

Not available

52

Electrolux/AYP 530071998

Kit-Piston

Note: (Incl. 50,51)

$26.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 545030102

Gasket-Cylinder(kit)

$

$

Not available

54

Electrolux/AYP 530058846

Assy-Leadwire

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 530016387

Bolt-Muffler 1/4"-20

$

$

Not available

56

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 545030502

Kit-Spark Arrestor

$7.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 545030102

Gasket-Muffler (kit)

$

$

Not available

59

Electrolux/AYP 545033201

Shield

$

$

Not available

60

Electrolux/AYP 545006016

Kit-Muffler

Note: (Incl. 55,56,57,58,59)

$42.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 530012586

Cylinder

$

$

Not available

62

Electrolux/AYP 952030249

Plug-Spark(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 530001624

Bolt-Cyl. 1/4"-20

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 530039234

Module-Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 530016357

Screw-Module

$6.49

$

In Stock, Qty 5

0

66

Electrolux/AYP 545030102

Kit-Gasket/Seal

Note: (Incl. 14,19, 53,58)

$

$

Not available

67

Electrolux/AYP 530058962

Assy-Throttle cable
(Superseded to 545026801)

$18.99

$

In Stock, only 2 left!

0
