PPB 250 E - Poulan Pro String Trimmer, Type 3 Handle & Shaft Assembly Type 3 Parts Diagram

String Trimmer, Type 3

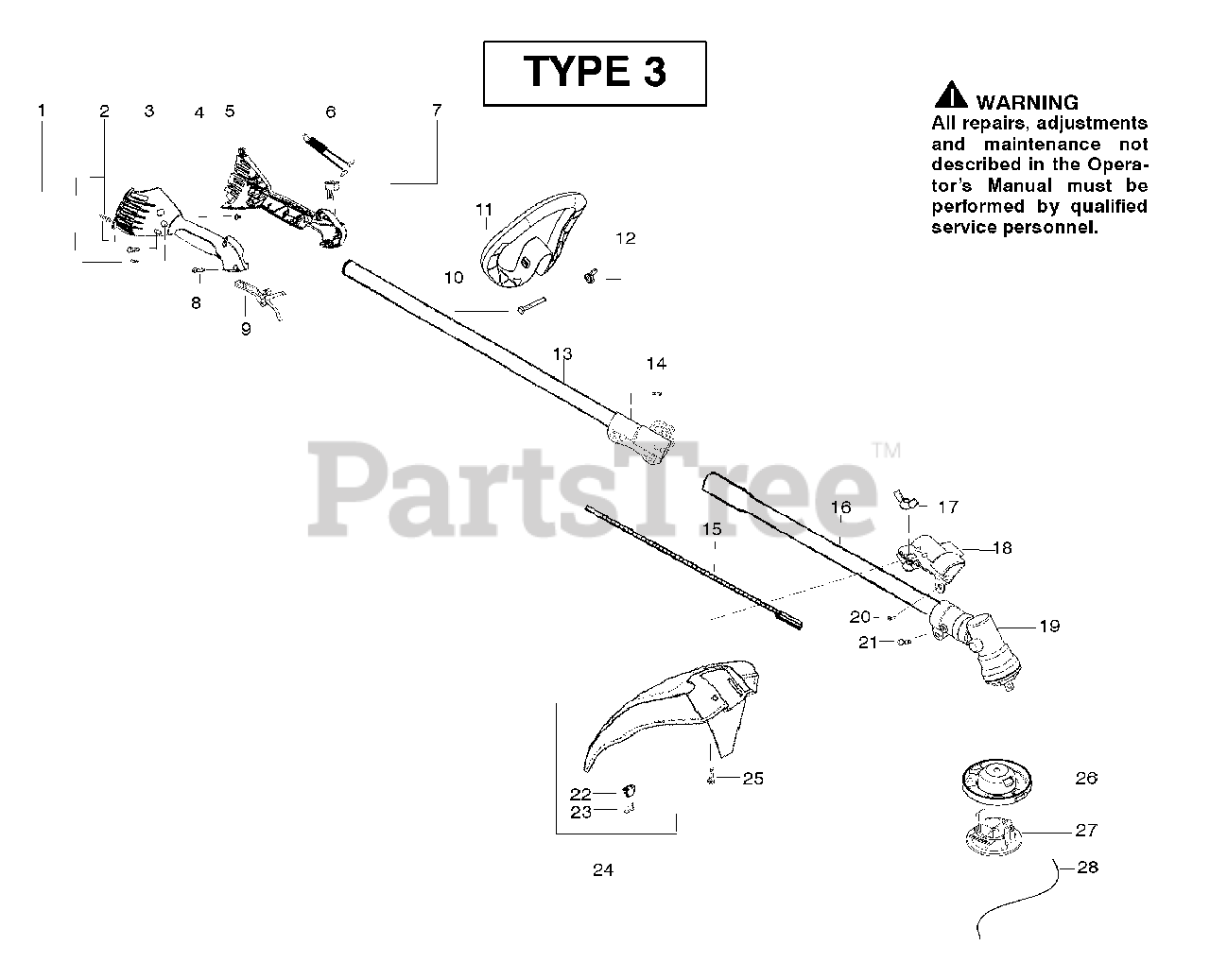

Handle & Shaft Assembly Type 3 Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 15

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 15

0

3

Poulan 530057983

Hsg.-Throttle right

$

$

Not available

4

Poulan 530016326

Screw-Cable Retention

$

$

Not available

5

Poulan 530057984

Hsg.-Left throttle

$

$

Not available

6

Poulan 530058843

Assy-Wire

$

$

Not available

7

Poulan 530071356

Kit-Switch

$8.99

$

In Stock, Qty 12

0

8

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 15

0

9

Poulan 530058759

Lever-Throttle
(Superseded to 545017701)

$

$

Not available

10

Poulan 530015786

Bolt

$5.99

$

In Stock, only 4 left!

0

11

Poulan 530058583

Assy-Handle

Note: (Incl. 10,12)

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 530016152

Wingnut
(Superseded to 530401992)

$3.49

$

In Stock, Qty 19

0

13

Poulan 545006039

Kit-Upper Shaft

Note: (Incl. flex,clamp & 14)

$

$

Not available

14

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530096218

Shaft-Flex
(Superseded to 545173003)

Note: (lower)

$10.99

$

In Stock, only 2 left!

0

16

Poulan 545006040

Kit-Lower Shaft
(Superseded to 530071790)

$

$

Not available

17

Poulan 530016152

Wingnut
(Superseded to 530401992)

$3.49

$

In Stock, Qty 19

0

18

Poulan 530150701

Bracket-Shield

$

$

Not available

19

Poulan 530096099

Gearbox

$53.99

$

In Stock, Qty 5

0

20

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

21

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 12

0

24

Poulan 530071765

Kit-Shield Assy.

Note: (incl. 22,23)

$

$

Not available

25

Poulan 530015820

Bolt

$4.99

$

In Stock, Qty 9

0

26

Poulan 545049401

Head-Fixed Line
(Superseded to 545053902)

$37.99

$

In Stock, only 3 left!

0

27

Poulan 545049501

Cap-Fixed Line

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 952711635

Accy-Line

Note: (12 pcs)

$

$

Not available

Poulan 545177330

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
