PPB 250 E - Poulan String Trimmer, Type 2 (2009-01) Shaft - Type 1-2 Parts Diagram

String Trimmer, Type 2

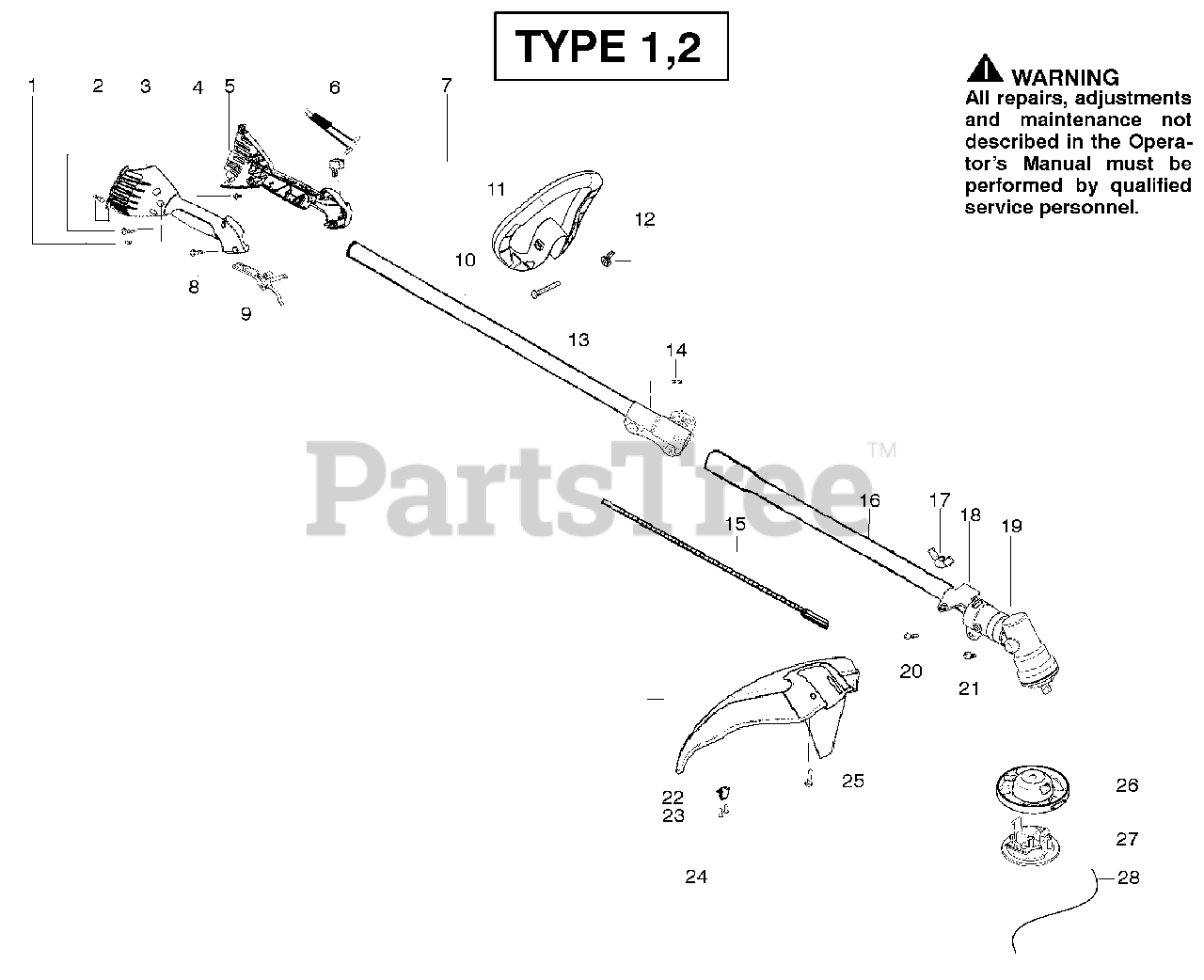

Shaft - Type 1-2 Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

3

Electrolux/AYP 530057983

Hsg.-Throttle right

$

$

Not available

4

Electrolux/AYP 530016326

Screw-Cable Retention

$

$

Not available

5

Electrolux/AYP 530057984

Hsg.-Left throttle

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

9

Electrolux/AYP 530058759

Lever-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 530058583

Assy-Handle

Note: (Incl. 10,12)

$8.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 545006039

Kit-Upper Shaft

Note: (Incl. flex,clamp & 14)

$

$

Not available

14

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530096218

Shaft-Flex (lower)
(Superseded to 545173003)

$11.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 545006040

Kit-Lower Shaft
(Superseded to 530071790)

$

$

Not available

17

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 530096099

Gearbox

$53.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

24

Electrolux/AYP 530071765

Kit-Shield Assy.
(Superseded to 545081001)

Note: (incl. 22,23)

$27.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 545049401

Head-Fixed Line
(Superseded to 545053902)

$37.99

$

In Stock, only 3 left!

0

27

Electrolux/AYP 545049501

Cap-Fixed Line

$9.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 952711635

Accy-Line (12 pcs)

$

$

Not available

28

Electrolux/AYP 545186743

Operator Manual

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545176003

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

28

Electrolux/AYP 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
