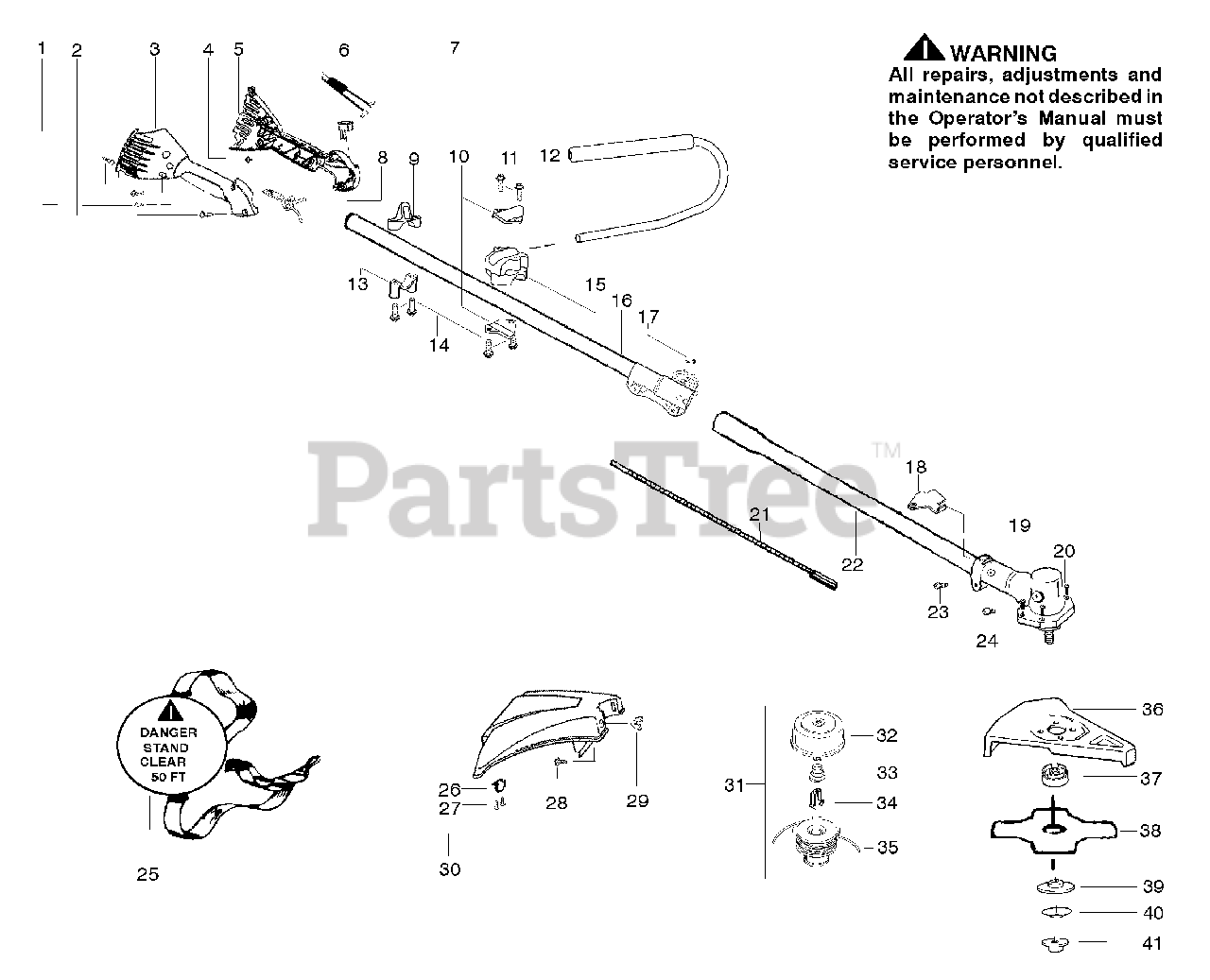

PPB 300 - Poulan Pro String Trimmer Handle / Shaft Assembly Parts Diagram

String Trimmer

Handle / Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

3

Poulan 530057983

Hsg.-Throttle-right

$

$

Not available

4

Poulan 530016326

Screw-Cable Ret.

$

$

Not available

5

Poulan 530057984

Hsg.-Throttle-left

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Poulan 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530057986

Clamp-Harness

Note: (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

12

Poulan 530071394

Assy.-Handlebar

Note: (incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

13

Poulan 530057987

Clamp-Harness

Note: (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

15

Poulan 530058765

Clamp-Handlebar

$

$

Not available

16

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. Flex, clamp & 17)

$44.99

$

In Stock, only 3 left!

0

17

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

19

Poulan 530096100

Gearbox

$78.99

$

Usually ships in 3-10 days

0

20

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

21

Poulan 530096218

Shaft-Flex
(Superseded to 545173003)

Note: (lower)

$11.99

$

In Stock, only 1 left!

0

22

Poulan 530071790

Assy-Lower Shaft

$

$

Not available

23

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

24

Poulan 530016224

Screw

$4.99

$

In Stock, Qty 5

0

25

Poulan 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

26

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

28

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

30

Poulan 530071765

Kit-Shield Assy.

Note: (incl. 26,27)

$

$

Not available

31

Poulan 952711581

Accy-Cutting Head
(Superseded to 952711550)

Note: (Incl. 32-35)

$

$

Not available

32

Poulan 530095772

Assy-Hub/Arbor

$

$

Not available

33

Poulan 530053241

Spring-Return

$

$

Not available

34

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 7

0

35

Poulan 952711580

Accy-Wound Spool
(Superseded to 952711551)

$

$

Not available

36

Poulan 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

37

Poulan 530095815

Dust cup

$10.99

$

In Stock, Qty 7

0

38

Poulan 952711584

Accy.-Weed Blade

$

$

Not available

39

Poulan 530095816

Washer

$10.99

$

In Stock, Qty 5

0

40

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

41

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 11

0

Poulan 530164256

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 545176003

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available

Poulan 530031159

Wrench-Hex 5/32"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530056221

Decal-Upper Shaft Warning

Note: Not Shown

$

$

Not available
