PPB 3000 B - Poulan Blower (2009-02) Product Complete Parts Diagram

Blower

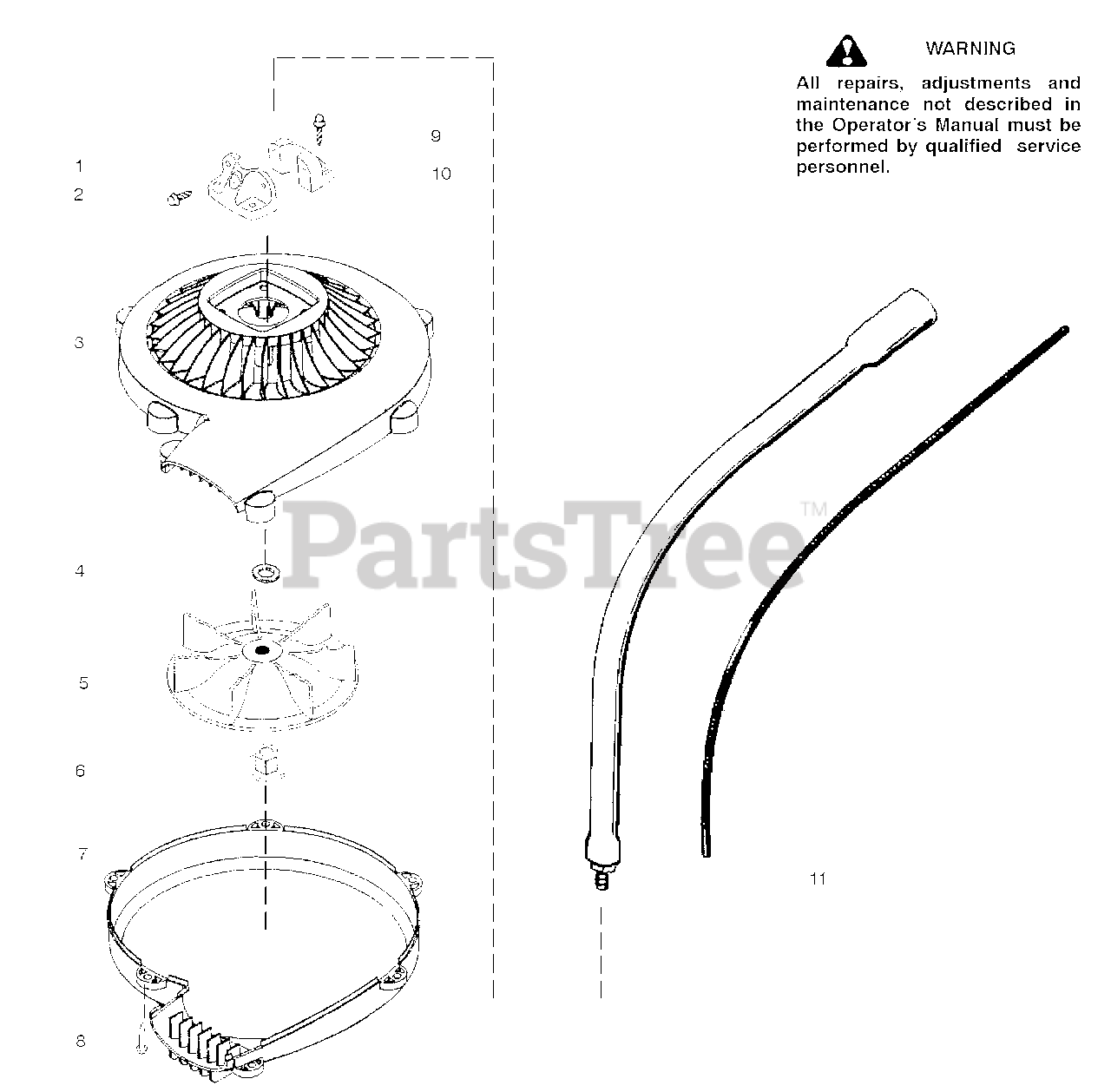

Product Complete Parts Diagram

  • Title

1

Electrolux/AYP 530096026

Clamp-Right

$7.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530015814

Screw

$3.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 530096042

Hsg.-Blower (upper)

$

$

Not available

4

Electrolux/AYP 530016389

Washer

$

$

Not available

5

Electrolux/AYP 530055123

Impeller

$

$

Not available

6

Electrolux/AYP 530095893

Arbor-Impeller

$

$

Not available

7

Electrolux/AYP 530095892

Hsg.-Blower (lower)

$20.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530016273

Screw

$4.99

$

In Stock, Qty 8

0

9

Electrolux/AYP 530016179

Screw

$

$

Not available

10

Electrolux/AYP 530096025

Clamp-Left

$

$

Not available

11

Electrolux/AYP 545006088

Kit-Lower Driveshaft

Note: (incl. flex)

$

$

Not available

11

Electrolux/AYP 545212828

Manual

Note: Not Shown

$

$

Not available

11

Electrolux/AYP 530095894

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 545003363

Decal-Impeller Hsg.

Note: Not Shown

$

$

Not available
