PPB 350 - Poulan String Trimmer (2006-12) Shaft Parts Diagram

String Trimmer

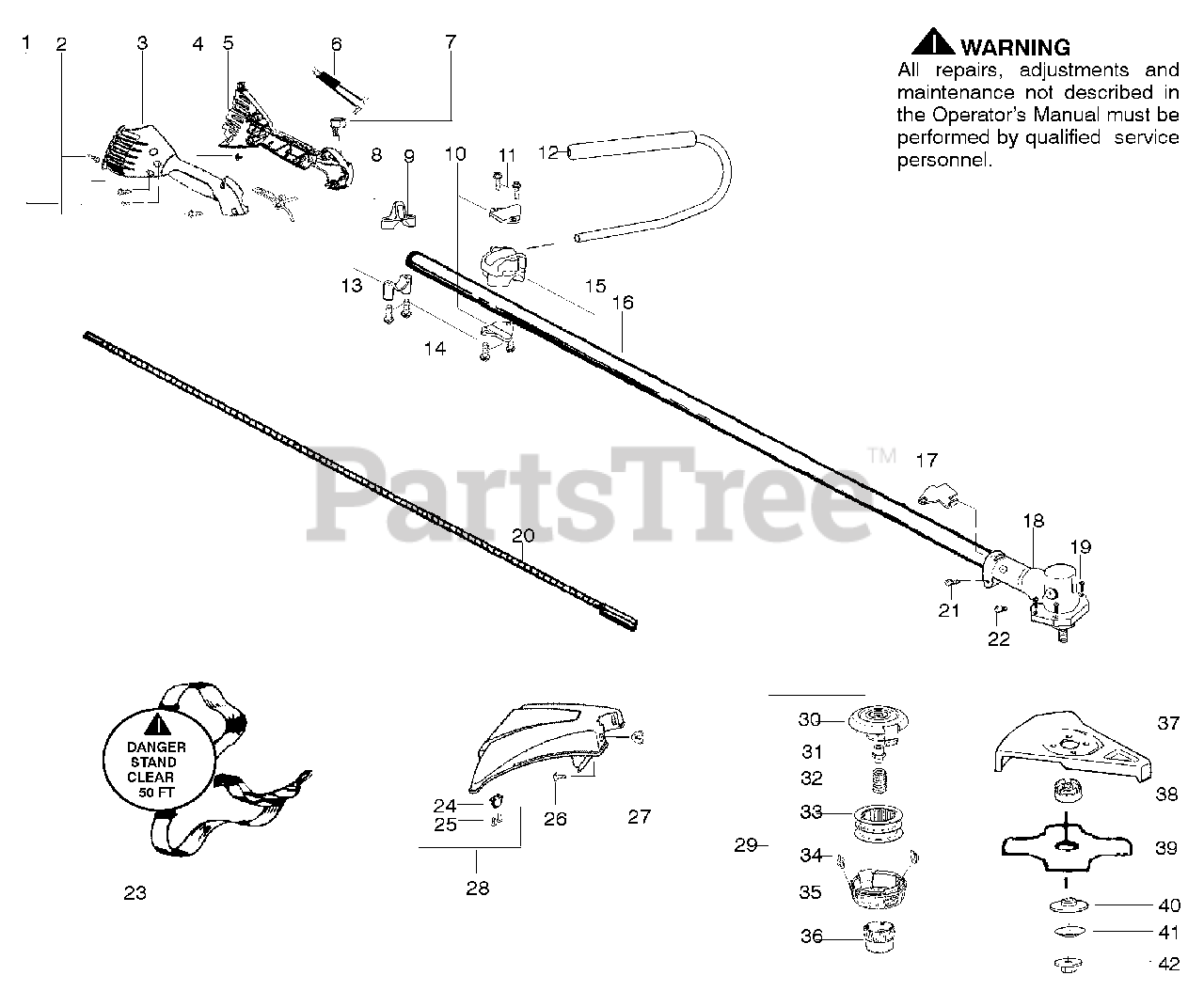

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

3

Electrolux/AYP 530057983

Hsg.-Throttle-right

$

$

Not available

4

Electrolux/AYP 530016326

Screw-Cable Ret.

$

$

Not available

5

Electrolux/AYP 530057984

Hsg.-Throttle-left

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530058759

Trigger-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

12

Electrolux/AYP 530071996

Assy.-Handlebar

Note: (incl. grip,cap,decal)

$14.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530057987

Clamp-Harness (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

15

Electrolux/AYP 530058765

Clamp-Handlebar

$

$

Not available

16

Electrolux/AYP 530071980

Kit-Driveshaft

$42.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

18

Electrolux/AYP 530096100

Gearbox

$78.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, Qty 6

0

20

Electrolux/AYP 530096203

Shaft-Flex

$15.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530016224

Screw

$4.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

24

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

25

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

26

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530071997

Kit-Shield Assy.

Note: (incl. 24,25)

$27.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 537419202

Assy-TNG VII
(Superseded to 596585805)

Note: (Incl. 30,31,32, 33,34, 35,36)

$31.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 537419302

Housing

$15.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 537419801

Adapter
(Superseded to 537419801)

$8.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, Qty 7

0

33

Electrolux/AYP 952711631

Accy-Wound Spool

$10.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 537419701

Eyelet
(Superseded to 545003365)

$12.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 537419401

Cover
(Superseded to 545003365)

$12.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.49

$

In Stock, Qty 20+

0

37

Electrolux/AYP 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530095815

Dust cup

$10.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 952711584

Accy.-Weed Blade

$

$

Not available

40

Electrolux/AYP 530095816

Washer

$10.99

$

In Stock, Qty 5

0

41

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, only 4 left!

0

42

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 10

0

42

Electrolux/AYP 545117592

Operator Manual

Note: Not Shown

$

$

Not available

42

Electrolux/AYP 530055349

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

42

Electrolux/AYP 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530031159

Wrench-Hex 5/32"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
