PPB 4000 C - Poulan String Trimmer, Type 3 (2009-02) Handles & Controls - Type 3 Parts Diagram

String Trimmer, Type 3

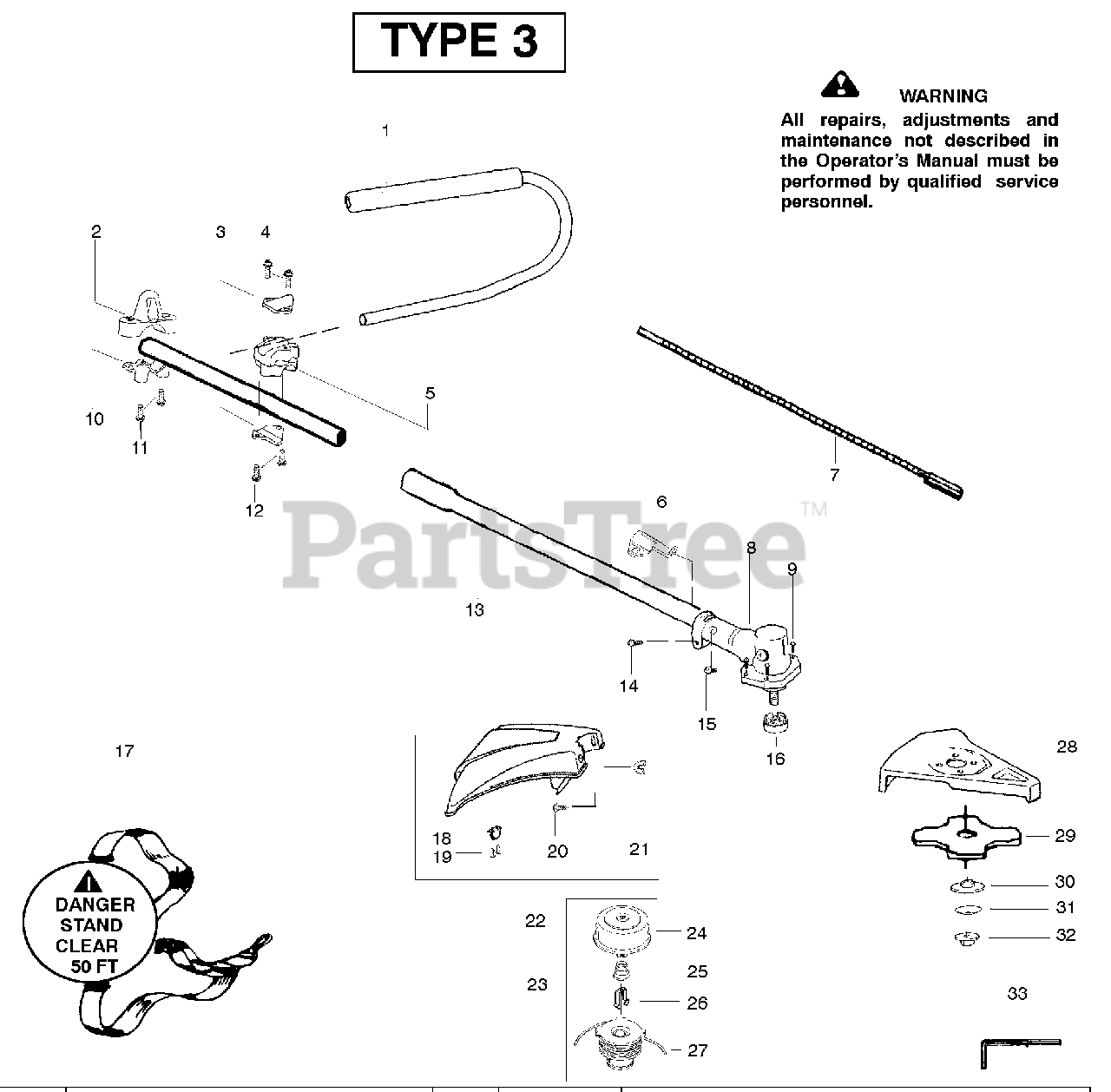

Handles & Controls - Type 3 Parts Diagram

  • Title

1

Electrolux/AYP 530071394

Kit-Handlebar

Note: (incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530055392

Clamp-Harness Upper
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

5

Electrolux/AYP 530058766

Clamp-Handlebar (7/8")

$

$

Not available

5

Electrolux/AYP 530058765

Clamp-Handlebar (1")

$

$

Not available

6

Electrolux/AYP 530095812

Bracket-Shield

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530096183

Flexshaft-Split boom

$

$

Not available

8

Electrolux/AYP 530071585

Assy-Gearbox

$

$

Not available

9

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, Qty 6

0

10

Electrolux/AYP 530055395

Clamp-Harness Lower
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 16

0

13

Electrolux/AYP 530071907

Assy.-Driveshaft

$21.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

15

Electrolux/AYP 530016224

Screw-Alignment

$4.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 530095815

Dust cup - Blade

$10.99

$

In Stock, Qty 7

0

17

Electrolux/AYP 530094408

Assy-Shoulder Strap
(Superseded to 530094417)

$

$

Not available

18

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

20

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530069779

Kit-Shield

Note: (Incl. 18,21)

$

$

Not available

23

Electrolux/AYP 952711581

Accy-Cutting Head
(Superseded to 952711550)

Note: (Incl. 24,27)

$

$

Not available

24

Electrolux/AYP 530095772

Assy-Hub

$

$

Not available

25

Electrolux/AYP 530053241

Spring

$

$

Not available

26

Electrolux/AYP 530401957

Retainer

$4.99

$

In Stock, Qty 5

0

27

Electrolux/AYP 952711580

Accy-Spool
(Superseded to 952711551)

$

$

Not available

28

Electrolux/AYP 530071383

Kit-Blade Shield

$14.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 952711584

Accy.-Weed Blade (8")

$

$

Not available

30

Electrolux/AYP 530095816

Washer-Blade Retaining

$10.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

32

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 10

0

33

Electrolux/AYP 530031159

Wrench-Hex (5/32")

$4.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 545212832

Manual

Note: Not Shown

$

$

Not available

33

Electrolux/AYP 530095894

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 525433601

Decal-Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0
