PPB 5500 P - Poulan Pro Pole Pruner Attachment Pole Pruner Attachment Assembly Parts Diagram

Pole Pruner Attachment

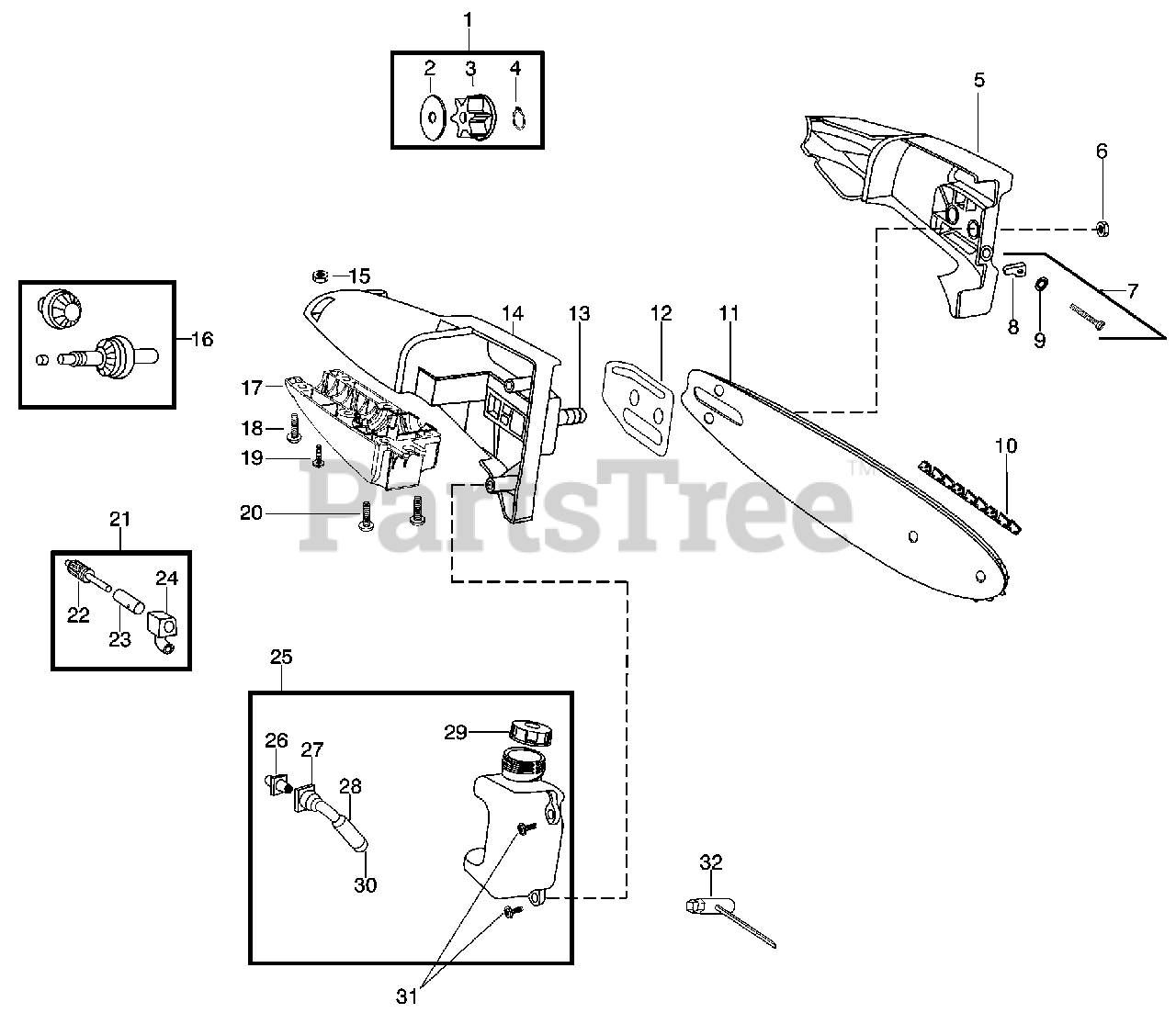

Pole Pruner Attachment Assembly Parts Diagram

  • Title

1

Poulan 530071647

Kit - Sprocket Assy.

Note: (Incl. 2,3,4)

$17.99

$

Usually ships in 3-10 days

0

2

Poulan 530056521

Washer

$4.99

$

In Stock, only 2 left!

0

3

Poulan 530056520

Sprocket

$9.99

$

Usually ships in 3-10 days

0

4

Poulan 530056563

Retainer - Sprocket

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530057100

Assy - Bar Clamp

Note: (Incl. 7)

$

$

Not available

6

Poulan 530015917

Nut - Bar Mounting

$3.99

$

In Stock, Qty 20+

0

7

Poulan 530069611

Kit - Bar Adjust

Note: (Incl. 8,9)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 530015826

Pin - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

9

Poulan 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

10

Poulan 530051524

Chain - 8"
(Superseded to 585889919)

$

$

Not available

11

Poulan 530044908

Bar - 8"

$

$

Not available

12

Poulan 530056523

Plate - Bar Pad

$4.99

$

In Stock, only 2 left!

0

13

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 4 left!

0

14

Poulan 530056513

Housing - Upper

Note: (Incl. 13)

$

$

Not available

15

Poulan 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

16

Poulan 530071646

Kit - Gear Assy.

$37.99

$

In Stock, only 1 left!

0

17

Poulan 530056514

Housing - Lower

$

$

Not available

18

Poulan 530016312

Screw (10-24)

$6.49

$

In Stock, Qty 6

0

19

Poulan 530015805

Screw - Alignment (10-14 x 1/2")
(Superseded to 530015886)

$6.49

$

In Stock, Qty 16

0

20

Poulan 530015886

Screw (10-14 x 13/16")

$6.49

$

In Stock, Qty 16

0

21

Poulan 530071645

Kit - Oil Assy

Note: (Incl. 22,23,24,26)

$

$

Not available

22

Poulan 530053764

Assy. - Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

23

Poulan 530053765

Barrel

$7.49

$

Usually ships in 3-10 days

0

24

Poulan 530057347

Assy- Oil Block

Note: (Incl. 23)

$12.99

$

Usually ships in 3-10 days

0

25

Poulan 530056528

Assy - Oil Tank
(Superseded to 530150266)

Note: (Incl. 26,27,28,29,30)

$26.99

$

Usually ships in 3-10 days

0

26

Poulan 530056524

Fitting - Oil Line

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530021160

Intake - Oil Line

$7.49

$

In Stock, only 1 left!

0

28

Poulan 530037821

Filter - Oil
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530053072

Cap - Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530030189

Plug - Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530015843

Screw (10-24 x 7/8")

$6.49

$

In Stock, only 2 left!

0

32

Poulan 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 17

0
