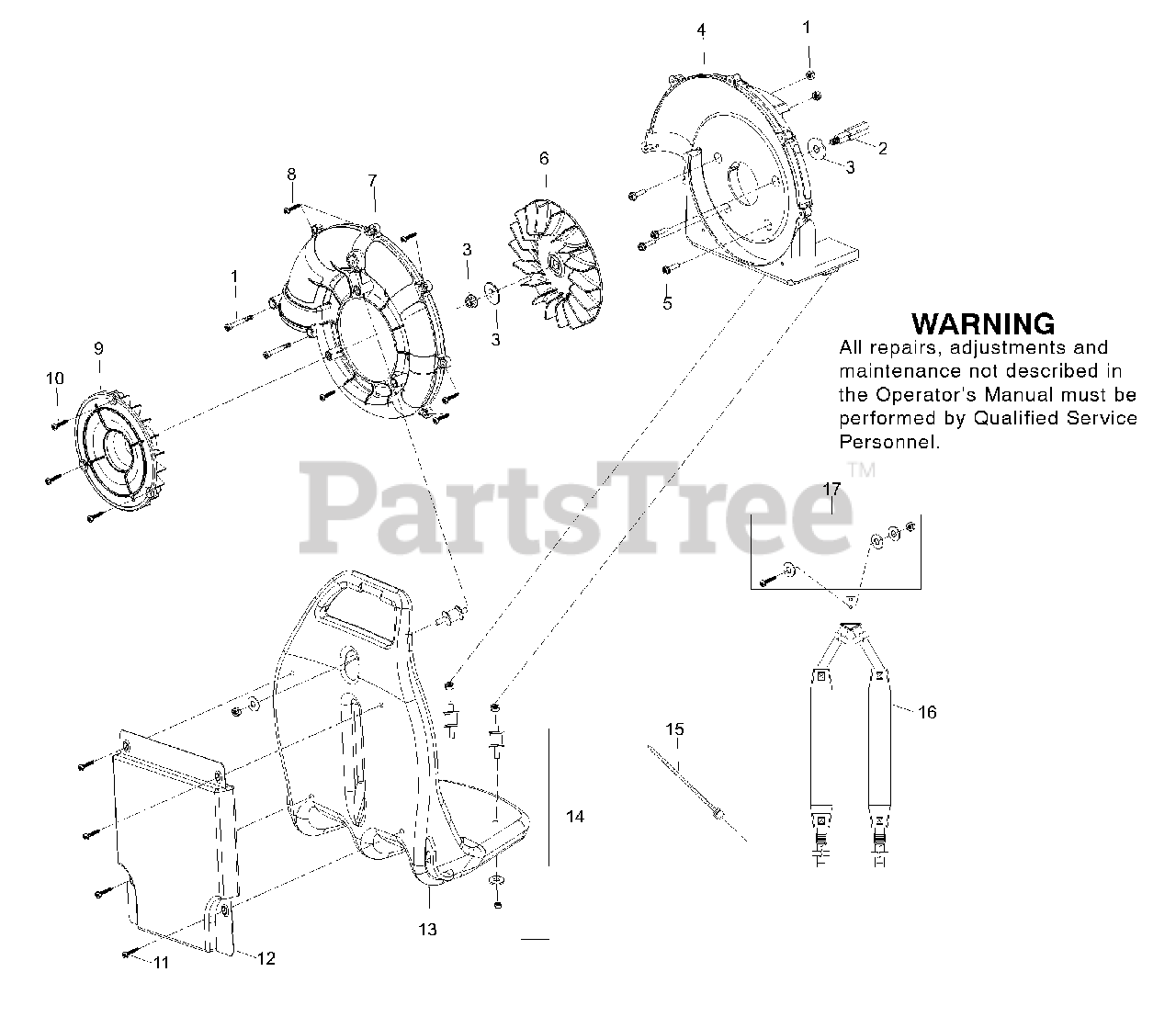

PPBP 30 - Poulan Pro Backpack Blower Blower Assembly Parts Diagram

Backpack Blower

Blower Assembly Parts Diagram

  • Title

1

Poulan 574860201

Kit - Elbow Retention

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 574592701

Connect Axis

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 574859801

Kit - Impeller Washer & Nut

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 575630801

Front Screw Housing

$13.84

$

Usually ships in 3-10 days

0

5

Poulan 575531401

Screw (4 pack) (9SRCBM05-30)

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 574593401

Impeller

$24.99

$

Usually ships in 3-10 days

0

7

Poulan 575630901

Rear Screw Housing

$24.99

$

Usually ships in 3-10 days

0

8

Poulan 575532601

Screw (6 pack) (9SKKBY8/16-0.75)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 574594001

Cover

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 575532701

Screw (6 pack) (9SKKBB05-18)

$2.23

$

Usually ships in 3-10 days

0

11

Poulan 575532801

Rivet - Ribbed (4 pack) (9RGB7.14-16.27)

$3.99

$

In Stock, only 1 left!

0

12

Poulan 574594501

Cushion Back

$8.07

$

Usually ships in 3-10 days

0

13

Poulan 574594201

Frame

$17.30

$

Usually ships in 3-10 days

0

14

Poulan 574859901

Kit - Isolator

$18.99

$

Usually ships in 3-10 days

0

15

Poulan 574596301

Ligate Tape

$

$

Not available

16

Poulan 574594801

Harness

$26.99

$

In Stock, only 1 left!

0

17

Poulan 574860001

Kit - Harness Hardware

$3.99

$

Usually ships in 3-10 days

0
