PPBP 30 - Poulan Pro Backpack Blower Engine Parts Diagram

Backpack Blower

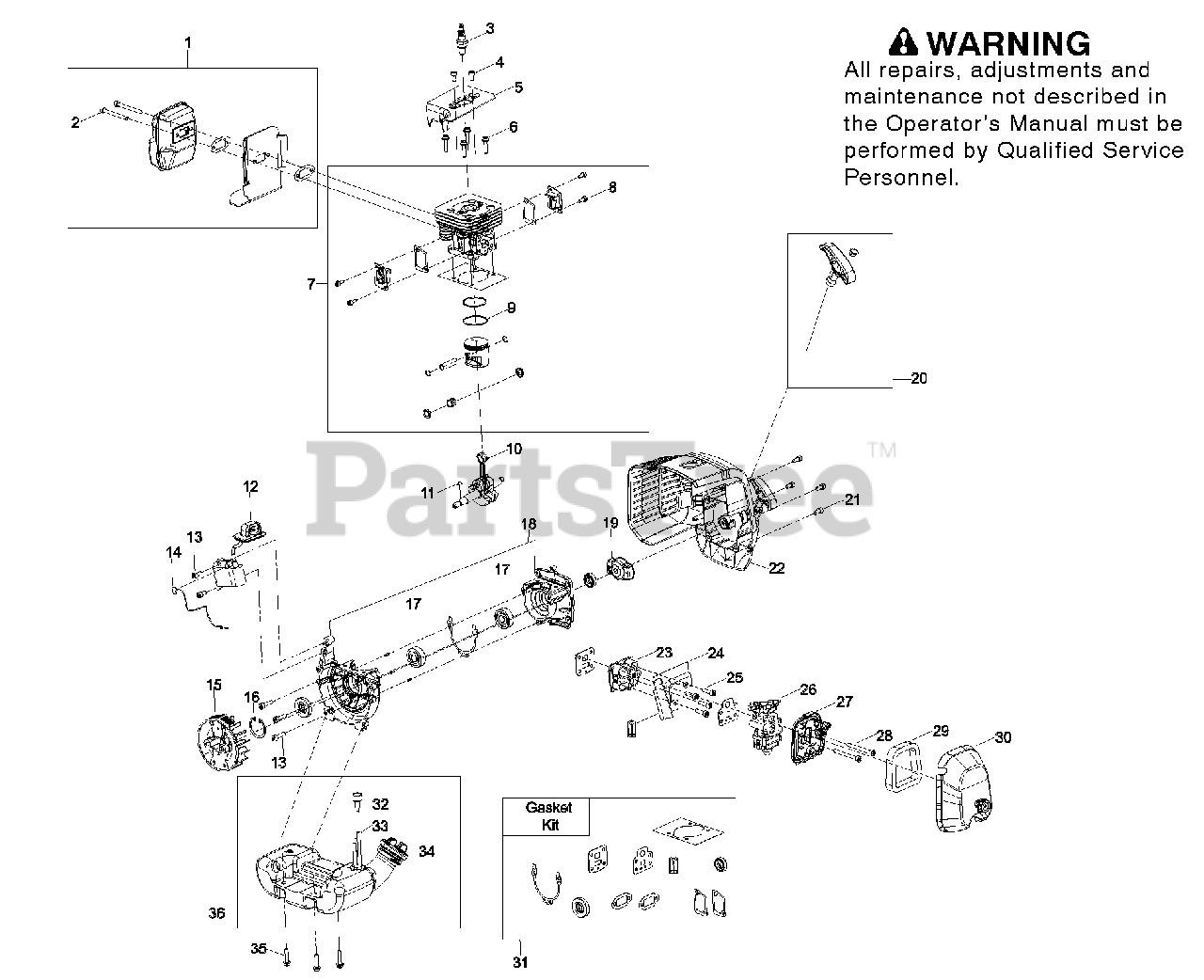

Engine Parts Diagram

  • Title

1

Poulan 574859701

Kit - Muffler

Note: (Incl. 2)

$

$

Not available

2

Poulan 575532301

Screw (2 pack) (9SXMBJ05-50)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 575630301

Spark Plug

$6.99

$

In Stock, Qty 20+

0

4

Poulan 575532501

Screw (4 pack) (9SGEB-05-10)

$2.23

$

Usually ships in 3-10 days

0

5

Poulan 574587301

Plate (spark side)

$2.23

$

Usually ships in 3-10 days

0

6

Poulan 575532401

Screw (4 pack) (9SRCB-05-22)

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 574859501

Kit - Cylinder / Piston

Note: (Incl. 8,9)

$

$

Not available

8

Poulan 575532201

Screw (4 pack) (9SGEB-04-10)

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 574588701

Ring - Piston

$

$

Not available

10

Poulan 574589401

Assembly - Crankshaft & Rod

$27.99

$

Usually ships in 3-10 days

0

11

Poulan 574589301

Key

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 575630401

Ignition Coil (9288-320601-CH)
(Superseded to 574589501)

$

$

Not available

13

Poulan 575532101

Screw (5 pack) (9SGEB-05-20)

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 574589701

Coil Wire

$2.49

$

In Stock, only 3 left!

0

15

Poulan 574592301

Flywheel

$15.99

$

Usually ships in 3-10 days

0

16

Poulan 574592201

C-Ring

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 575531601

Bearing (2 pack) (9DB-620101)

$3.99

$

In Stock, Qty 6

0

18

Poulan 574591701

Assembly - Crankcase

Note: (Incl. pins, screws)

$12.29

$

Usually ships in 3-10 days

0

19

Poulan 574590001

Assembly - Pawls

$

$

Not available

20

Poulan 574859201

Kit - Rope & Handle

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 575532001

Screw (4 pack) (9SGKB-05-12.5)

$4.99

$

In Stock, Qty 20+

0

22

Poulan 575630501

Assembly - Starter Housing

Note: (Incl. 20)

$

$

Not available

23

Poulan 574591401

Insulator

$

$

Not available

24

Poulan 574590801

Plate

$2.23

$

In Stock, Qty 5

0

25

Poulan 575531801

Screw (4 pack) (9SKKB-05-19)

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 574590501

Carburetor

$72.99

$

Usually ships in 3-10 days

0

27

Poulan 575630601

Assembly - Filter Base (with choke lever)

$

$

Not available

28

Poulan 575531901

Screw (2 pack) (9SGEB-05-52)

$3.99

$

In Stock, only 2 left!

0

29

Poulan 574590201

Filter

$4.99

$

In Stock, Qty 14

0

30

Poulan 575630701

Assembly - Filter (with knob)

$

$

Not available

31

Poulan 574859601

Kit - Gasket

$

$

Not available

32

Poulan 574859301

Kit - Vent

$3.99

$

In Stock, only 1 left!

0

33

Poulan 574859401

Kit - Fuel Line & Filter

$6.49

$

In Stock, Qty 14

0

34

Poulan 574607701

Assembly - Fuel Cap with retainer

$4.99

$

In Stock, Qty 5

0

35

Poulan 575531501

Screw (6 pack) (9SKKBY05-18)

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 574592401

Assembly - Fuel Tank

Note: (Incl. 32, 33, 34)

$

$

Not available
