PPC 31 - Poulan Pro String Trimmer ENGINE KIT #216740S Parts Diagram

String Trimmer

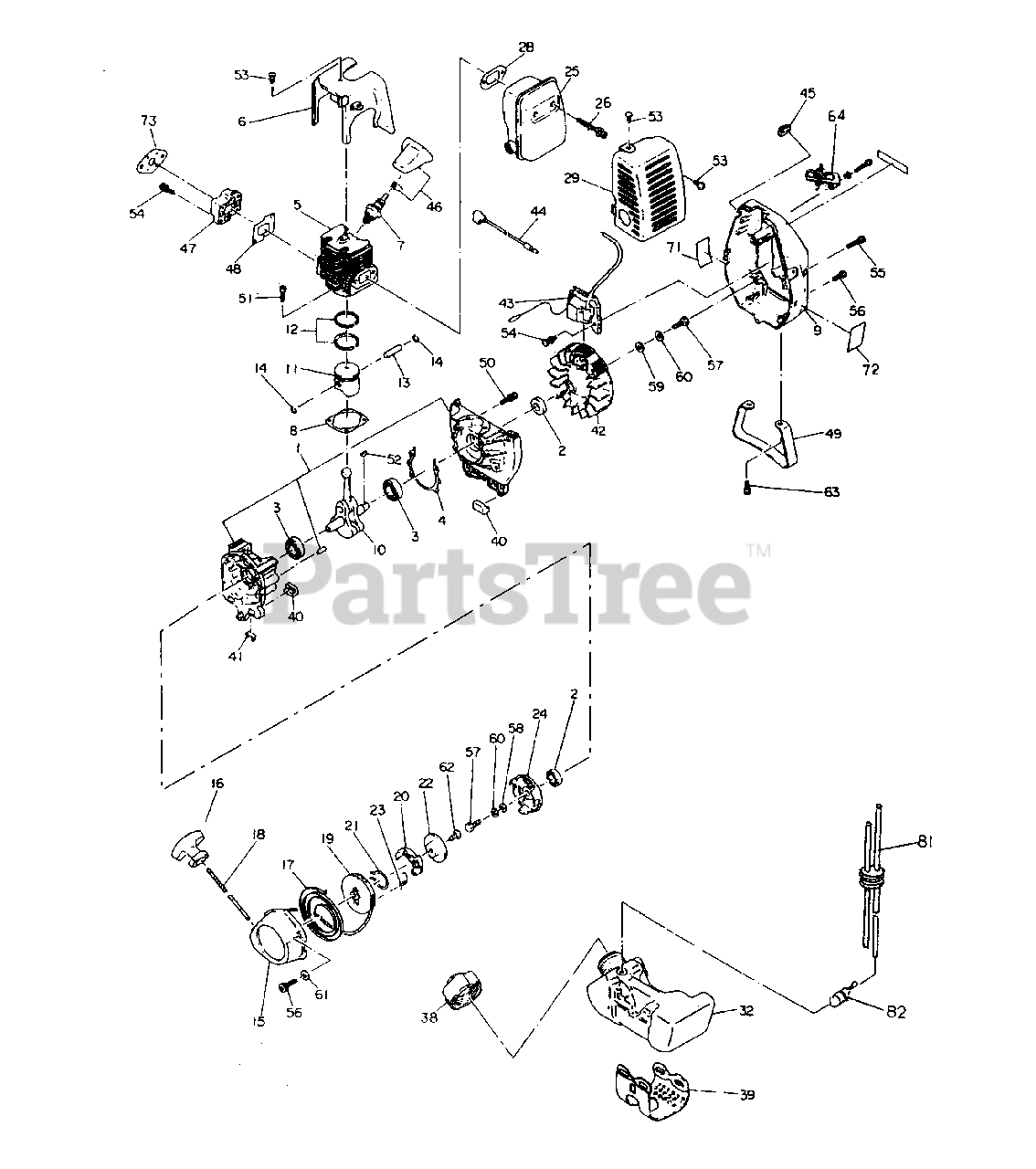

ENGINE KIT #216740S Parts Diagram

  • Title

1

Poulan 213061S

Crankcase (Incl. 2-4)

$254.99

$

Usually ships in 3-10 days

0

2

Poulan 206040S

Oil Seal
(Superseded to 216851S)

$17.99

$

Usually ships in 3-10 days

0

3

Poulan 206041S

Ball Bearing

$

$

Not available

4

Poulan 213062S

Gasket, Crankcase

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 213132S

Cylinder

$211.99

$

Usually ships in 3-10 days

0

6

Poulan 216934S

Cylinder Cover

$39.99

$

Usually ships in 3-10 days

0

7

Poulan 207534S

Spark Plug-NGK BM7A

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 213065S

Gasket, Cylinder

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 216935S

Fan Cover

$170.99

$

Usually ships in 3-10 days

0

10

Poulan 213067S

Crankshaft Assembly

$

$

Not available

12

Poulan 213135S

Piston Ring

$10.99

$

Usually ships in 3-10 days

0

Poulan 213148S

Piston Kit Ass'y (Incl. 11 - 14) (Outside vendor part number)

$

$

Not available

15

Poulan 216936S

Recoil Ass'y Kit (Incl 16-23)

$68.99

$

Usually ships in 3-10 days

0

16

Poulan 213138S

Starter Knob

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 206073S

Spiral Spring

$20.99

$

Usually ships in 3-10 days

0

18

Poulan 213073S

Starter Rope

$11.99

$

Usually ships in 3-10 days

0

19

Poulan 211160S

Reel

$11.99

$

Usually ships in 3-10 days

0

20

Poulan 211161S

Ratchet

$13.99

$

Usually ships in 3-10 days

0

21

Poulan 206077S

Friction Spring

$11.99

$

Usually ships in 3-10 days

0

22

Poulan 211163S

Friction Plate

$5.49

$

Usually ships in 3-10 days

0

23

Poulan 211162S

Return Spring

$7.49

$

Usually ships in 3-10 days

0

24

Poulan 213074S

Pulley

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 216937S

Muffler, Complete

$66.99

$

Usually ships in 3-10 days

0

26

Poulan 216938S

Bolt, Muffler

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 213078S

Gasket, Muffler

$5.49

$

Usually ships in 3-10 days

0

29

Poulan 213079S

Muffler Cover

$25.99

$

Usually ships in 3-10 days

0

32

Poulan 216939S

Fuel Tank

$56.99

$

Usually ships in 3-10 days

0

38

Poulan 216940S

Fuel Tank Cap

$13.99

$

Usually ships in 3-10 days

0

39

Poulan 213083S

Tank Bank

$

$

Not available

40

Poulan 213084S

Rubber Cushion

$5.99

$

Usually ships in 3-10 days

0

41

Poulan 213085S

Spacer, Tank Band

$12.99

$

Usually ships in 3-10 days

0

42

Poulan 216941S

Flywheel

$208.99

$

Usually ships in 3-10 days

0

43

Poulan 216942S

Igniter

$218.99

$

Usually ships in 3-10 days

0

44

Poulan 213089S

Ignition Wire

$10.99

$

Usually ships in 3-10 days

0

45

Poulan 213090S

Grommet

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 213091S

Spark Plug Cap

$27.99

$

Usually ships in 3-10 days

0

47

Poulan 216943S

Insulator

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 213093S

Gasket, Insulator

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 213094S

Stand

$16.99

$

Usually ships in 3-10 days

0

50

Poulan 213095S

Screw & Washer Ass'y

$2.99

$

Usually ships in 3-10 days

0

51

Poulan 213096S

Bolt, Socket Head

$5.99

$

Usually ships in 3-10 days

0

52

Poulan 213097S

Woodruff Key

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 213098S

Screw

$2.49

$

Usually ships in 3-10 days

0

54

Poulan 213099S

Screw & Washer Ass'y

$5.99

$

Usually ships in 3-10 days

0

55

Poulan 213100S

Bolt, Socket Head

$2.99

$

Usually ships in 3-10 days

0

56

Poulan 213101S

Bolt, Socket Head

$5.99

$

Usually ships in 3-10 days

0

57

Poulan 213102S

Bolt

$2.99

$

Usually ships in 3-10 days

0

58

Poulan 206489S

Washer

$2.49

$

Usually ships in 3-10 days

0

59

Poulan 213103S

Washer

$3.49

$

Usually ships in 3-10 days

0

60

Poulan 206294S

Spring Washer

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 213104S

Washer

$2.99

$

Usually ships in 3-10 days

0

62

Poulan 213105S

Screw

$2.99

$

Usually ships in 3-10 days

0

63

Poulan 213152S

Bolt, Socket Head

$2.99

$

Usually ships in 3-10 days

0

73

Poulan 216944S

Gasket, Air Cleaner

$1.99

$

Usually ships in 3-10 days

0

81

Poulan 216945S

Tube

$1.99

$

Usually ships in 3-10 days

0

82

Poulan 216946S

Filter

$16.99

$

Usually ships in 3-10 days

0
