PPCRT 17 (960920037-02) - Poulan Tiller (2016-06) TINE SHIELD Parts Diagram

Tiller

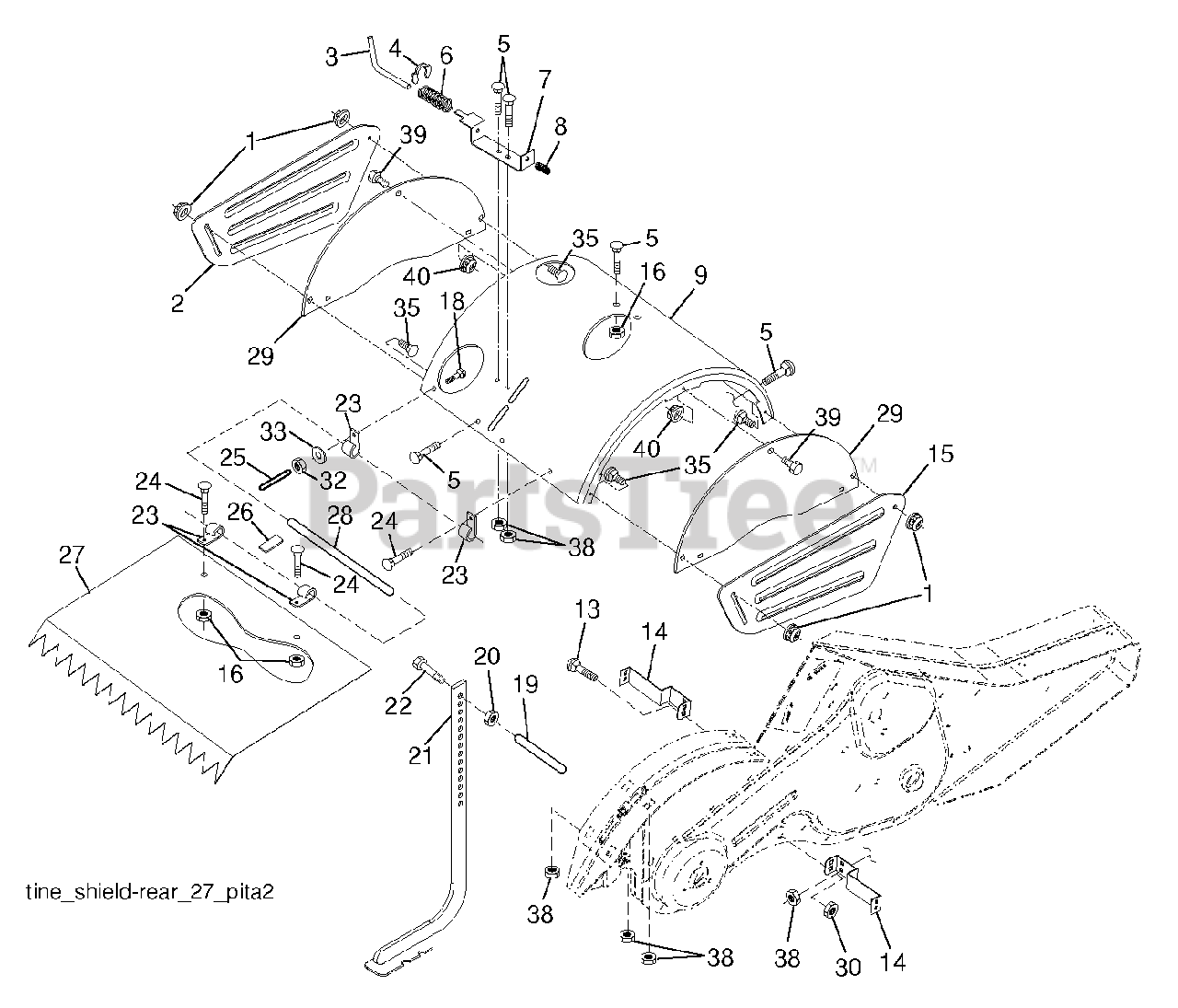

TINE SHIELD Parts Diagram

  • Title

1

Poulan 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 532195797

NO LONGER AVAILABLE
(Superseded to 532195796)

$10.99

$

Usually ships in 3-10 days

0

3

Poulan 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

4

Poulan 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

5

Poulan 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532008394

SPRING TI

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 581850801

(Superseded to 532008392)

$

$

Not available

8

Poulan 532109230

SPRING CRT

$6.49

$

In Stock, Qty 12

0

9

Poulan 532195810

NO LONGER AVAILABLE
(Superseded to 532124289)

$48.99

$

Usually ships in 3-10 days

0

13

Poulan 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

14

Poulan 581813501

BRACKET.TINE.SHIELD.TILLER.BLA

$

$

Not available

15

Poulan 532195796

SHIELD.SIDE.OUTER.LH.BLACK.GLO

$10.99

$

Usually ships in 3-10 days

0

16

Poulan 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 872040410

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532102701

GRIP CRT

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0

21

Poulan 532125000

No Description Available
(Superseded to 532102156)

$

$

Not available

22

Poulan 874930632

BOLT.375-16

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

24

Poulan 872140404

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 532006712

VINYL CAP

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

27

Poulan 532195794

NO LONGER AVAILABLE
(Superseded to 583641201)

$24.99

$

Usually ships in 3-10 days

0

28

Poulan 532120588

PIN.HINGE.TILLER

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 581812703

SHIELD.SIDE.PNT.428
(Superseded to 585414301)

$

$

Not available

30

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

35

Poulan 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

38

Poulan 873510500

(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

39

Poulan 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

40

Poulan 532181156

NUT.SPEED.5/16-18

$7.49

$

In Stock, only 2 left!

0
