PPF-210 - Echo Pole Saw (SN: 10001001 - 10999999) Fuel System Parts Diagram

Pole Saw

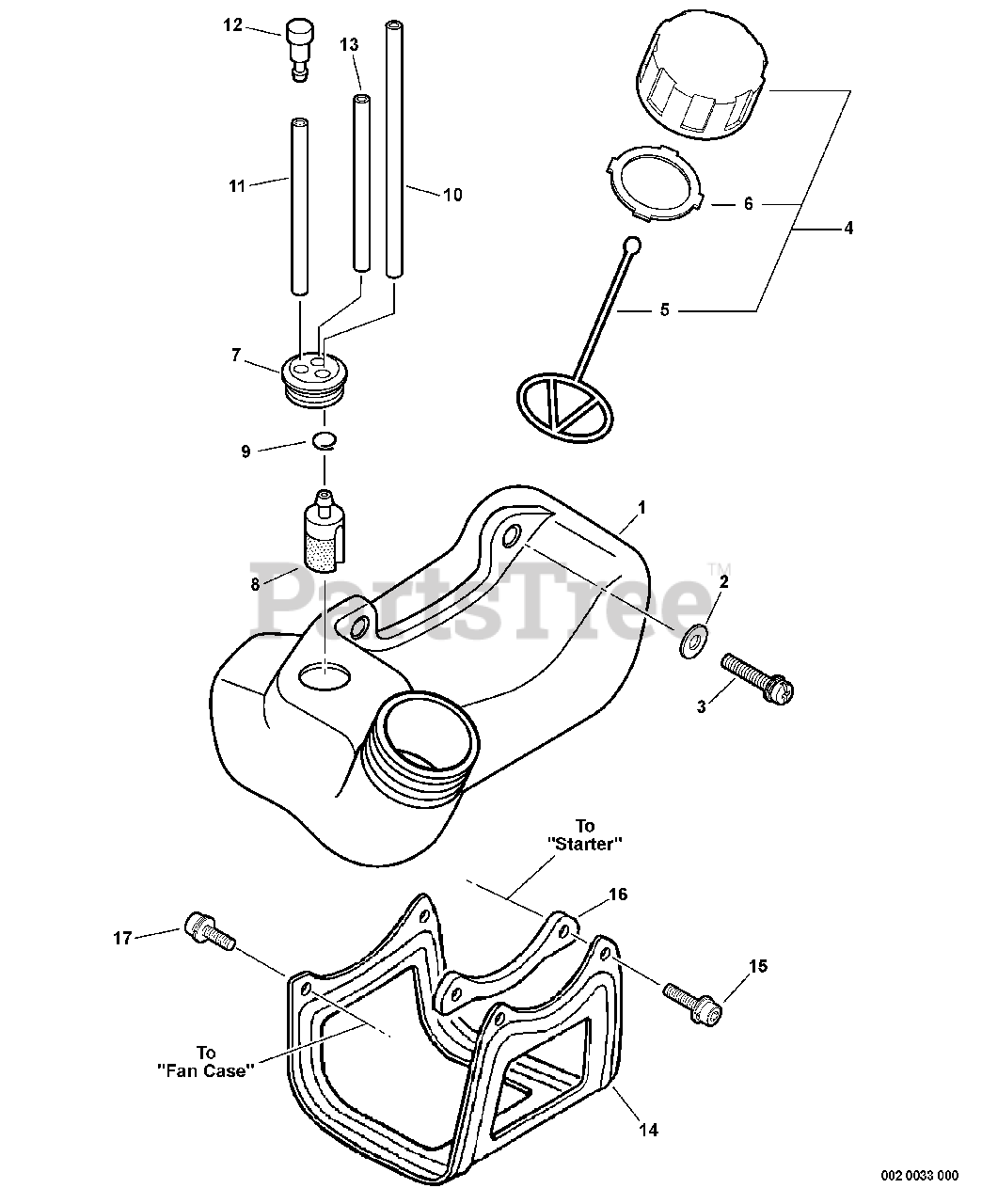

Fuel System Parts Diagram

  • Title

1

Echo A350000220

FUEL TANK ASSY

$19.99

$

In Stock, Qty 13

0

2

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

4

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 5-6

$6.99

$

In Stock, Qty 20+

0

5

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

6

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

7

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

11

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

13

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

14

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

16

Echo V150001640

PLATE

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0
