PPF-2100 - Echo Pole Saw (Type 1E) (SN: 509500 - 999999) Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

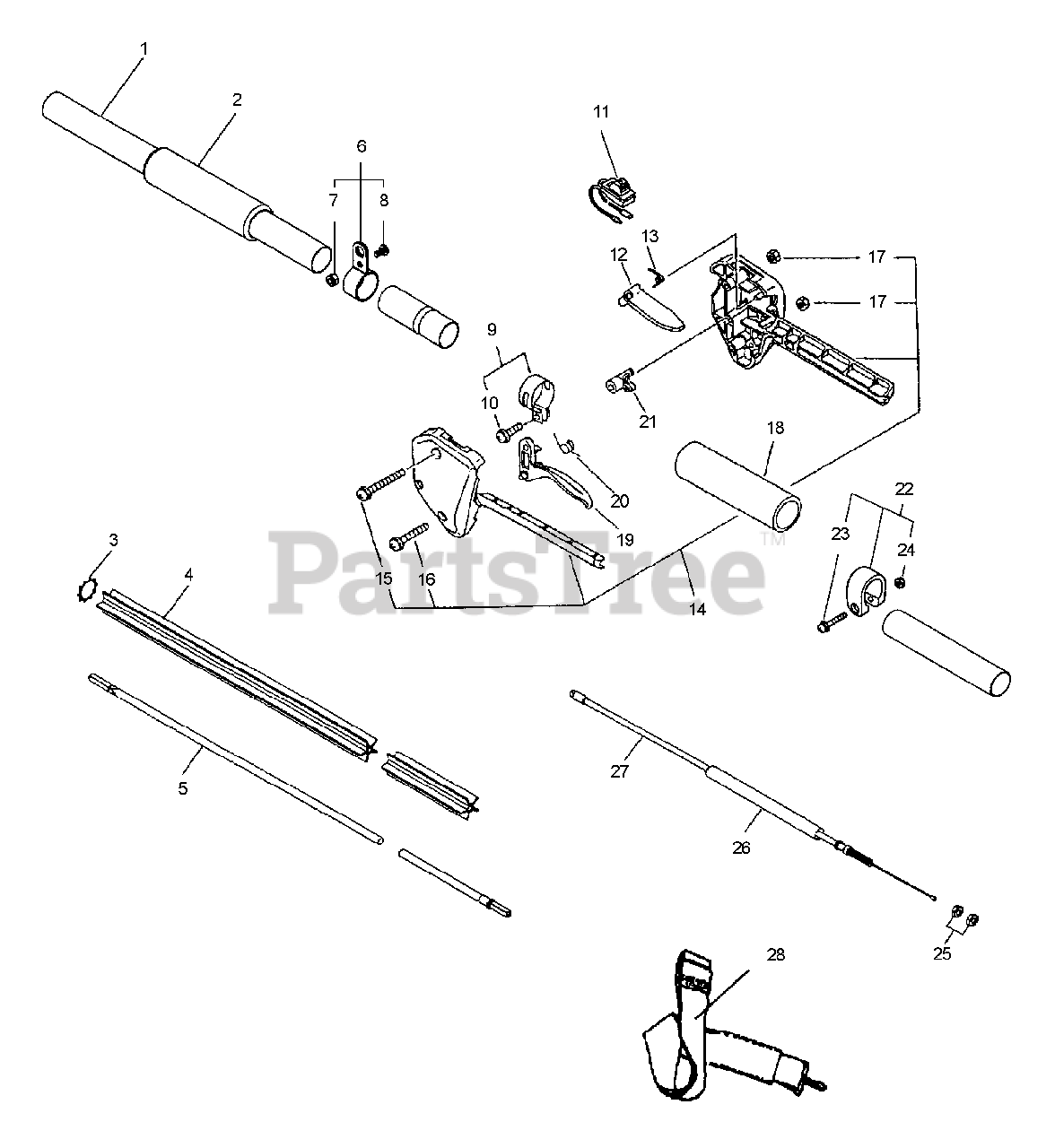

Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 61060924660

MAIN PIPE ASSY
(Superseded to 61060924661)

Note: Includes ITEMS 2 - 4

$69.99

$

In Stock, Qty 7

0

1

Echo 61020624660

MAIN PIPE ASSY

Note: Includes ITEMS 2 - 4

$170.99

$

Usually ships in 2-4 days

0

2

Echo 35131122060

GRIP, FRONT - LEFT

$7.99

$

Usually ships in 2-4 days

0

3

Echo 90003800100

LOCKWASHER - EXTERNAL

$0.99

$

In Stock, Qty 8

0

4

Echo 61021722060

LINER - FLEXIBLE
(Superseded to 61021722061)

$22.99

$

In Stock, only 1 left!

0

5

Echo 61001322060

DRIVESHAFT - FLEXIBLE

$17.99

$

Usually ships in 2-4 days

0

6

Echo 30060522060

HANGER KIT

Note: Includes ITEMS 7 & 8

$5.49

$

Usually ships in 2-4 days

0

7

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

8

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 10

$9.49

$

In Stock, only 1 left!

0

10

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

11

Echo 16340155631

IGNITION SWITCH ASSY

$8.99

$

In Stock, Qty 13

0

12

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$2.49

$

In Stock, Qty 20+

0

13

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 20+

0

14

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes ITEMS 15-17

$4.99

$

In Stock, Qty 17

0

15

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

16

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

17

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, Qty 14

0

19

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

20

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

21

Echo 17801252730

LOCKOUT, THROTTLE

$4.99

$

In Stock, Qty 20+

0

22

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 23 & 24

$9.99

$

In Stock, only 4 left!

0

23

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 9

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 10

0

26

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, only 4 left!

0

27

Echo 17800156730

CABLE, THROTTLE

$10.99

$

In Stock, only 2 left!

0

28

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 12

0
