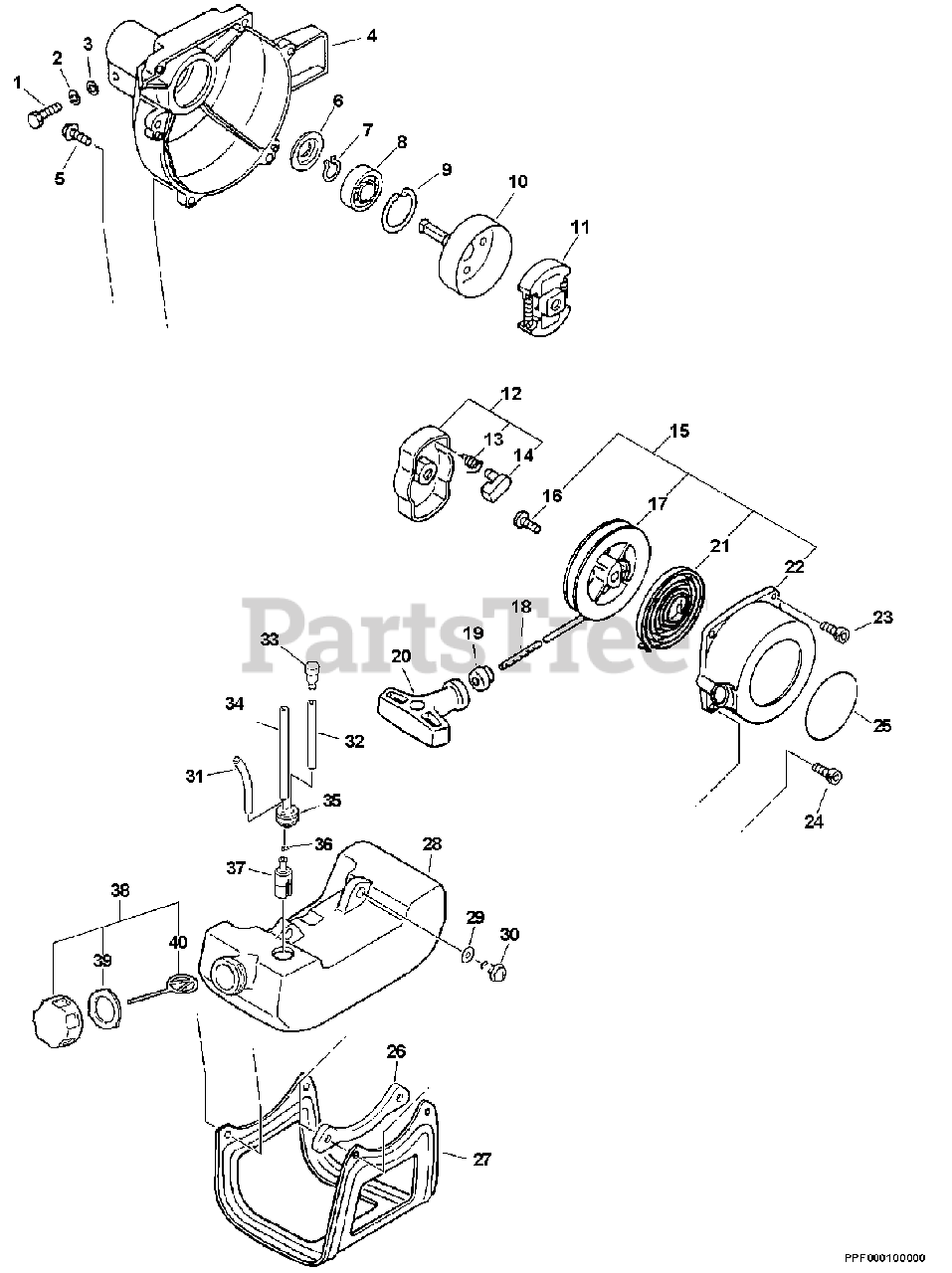

PPF-211 - Echo Pole Saw (SN: 02001001 - 02999999) Clutch, Fan Case, Fuel System, Starter Parts Diagram

Pole Saw

Clutch, Fan Case, Fuel System, Starter Parts Diagram

  • Title

1

Echo 900151-05025

BOLT 5×25

$0.99

$

Usually ships in 2-4 days

0

2

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 101511-44630

CASE, FAN

$52.99

$

In Stock, only 2 left!

0

5

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

6

Echo 175053-04920

STOPPER, PIPE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

8

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

9

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

10

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

11

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

12

Echo 17720244331

PAWL ASSY, STARTER
(Superseded to 17720212220)

Note: Includes ITEMS 13-14

$19.99

$

In Stock, only 2 left!

0

13

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

14

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

15

Echo 177200-42033

STARTER ASSY, RECOIL

Note: Includes ITEMS 16-23

$58.99

$

In Stock, Qty 10

0

16

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

17

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

18

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

19

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

20

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

21

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

22

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

23

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

24

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

25

Echo X502000190

LABEL - ECHO
(Superseded to X502000310)

$0.99

$

In Stock, Qty 20+

0

26

Echo V150001640

PLATE, EYE

$1.49

$

Usually ships in 2-4 days

0

27

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

28

Echo A350000220

TANK, FUEL

Note: Includes ITEM 29

$21.99

$

In Stock, Qty 9

0

29

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

30

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

31

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

32

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

33

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

34

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

35

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

36

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

37

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

38

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: INCLUDES ITEMS 39-40

$7.49

$

In Stock, Qty 9

0

39

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

40

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0
