PPF-211 - Echo Pole Saw (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Pole Saw

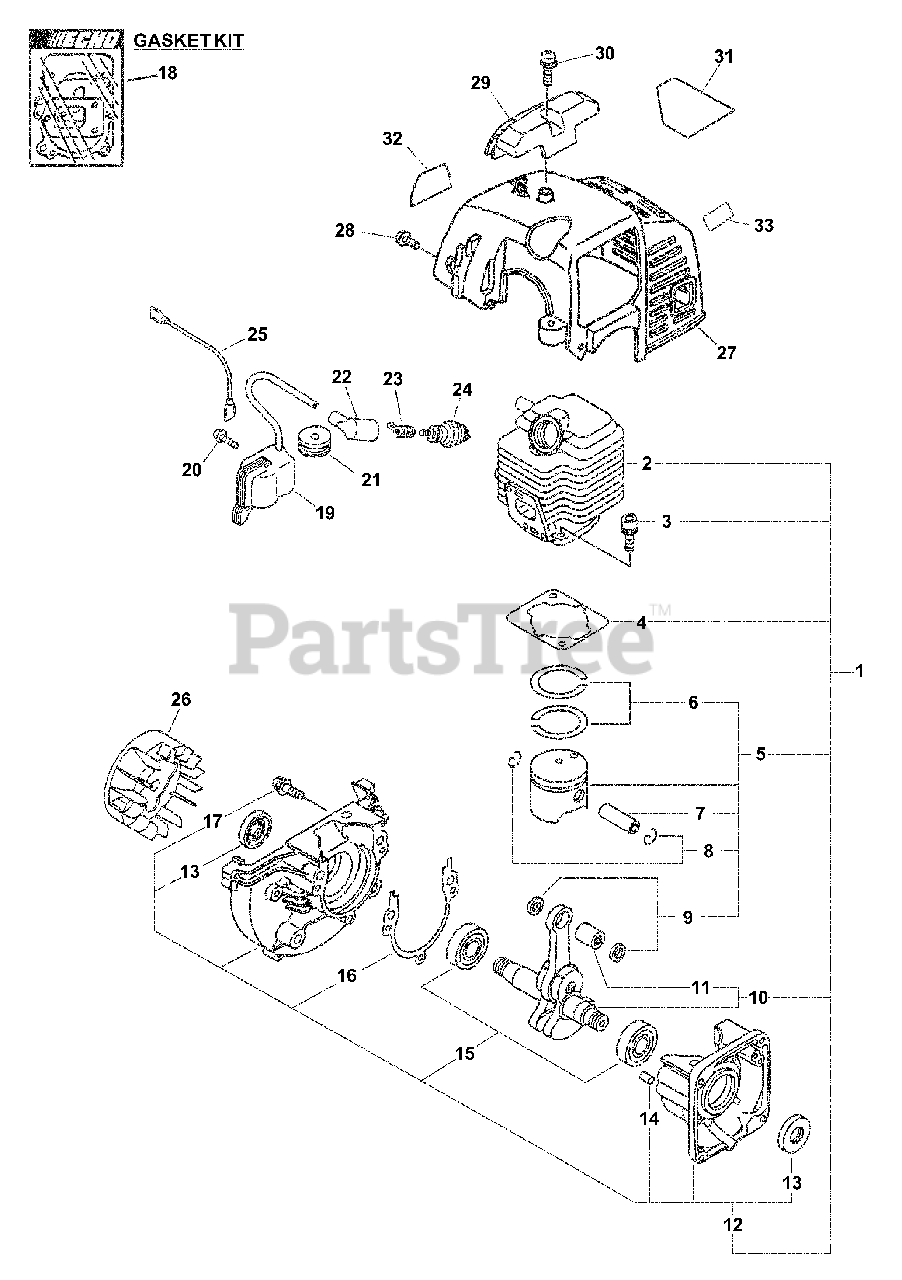

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1048

SHORT BLOCK -- SB1048
(Superseded to Discontinued)

Note: INCLUDES 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo A130000091

CYLINDER
(Superseded to A130000101)

$128.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: Includes ITEMS 6-9

$86.99

$

In Stock, only 3 left!

0

6

Echo A101000000

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, Qty 8

0

10

Echo 10010044733

CRANKSHAFT ASSY
(Superseded to A011000101)

Note: Includes ITEM 11

$172.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 18

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

Echo P021001591

GASKET KIT
(Superseded to P021001593)

$20.99

$

Usually ships in 2-4 days

0

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

22

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 1 left!

0

26

Echo A409000100

FLYWHEEL

$63.99

$

Usually ships in 2-4 days

0

27

Echo A160000192

COVER, ENGINE

$20.99

$

Usually ships in 2-4 days

0

28

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

29

Echo 15991244530

GUARD, TOP - BLACK

$7.49

$

In Stock, only 1 left!

0

30

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

31

Echo 89016022660

LABEL - CAUTION
(Superseded to 89016022661)

$8.99

$

In Stock, only 3 left!

0

32

Echo X503001370

LABEL - MODEL PPF-211

$3.99

$

In Stock, only 1 left!

0

33

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, only 4 left!

0
