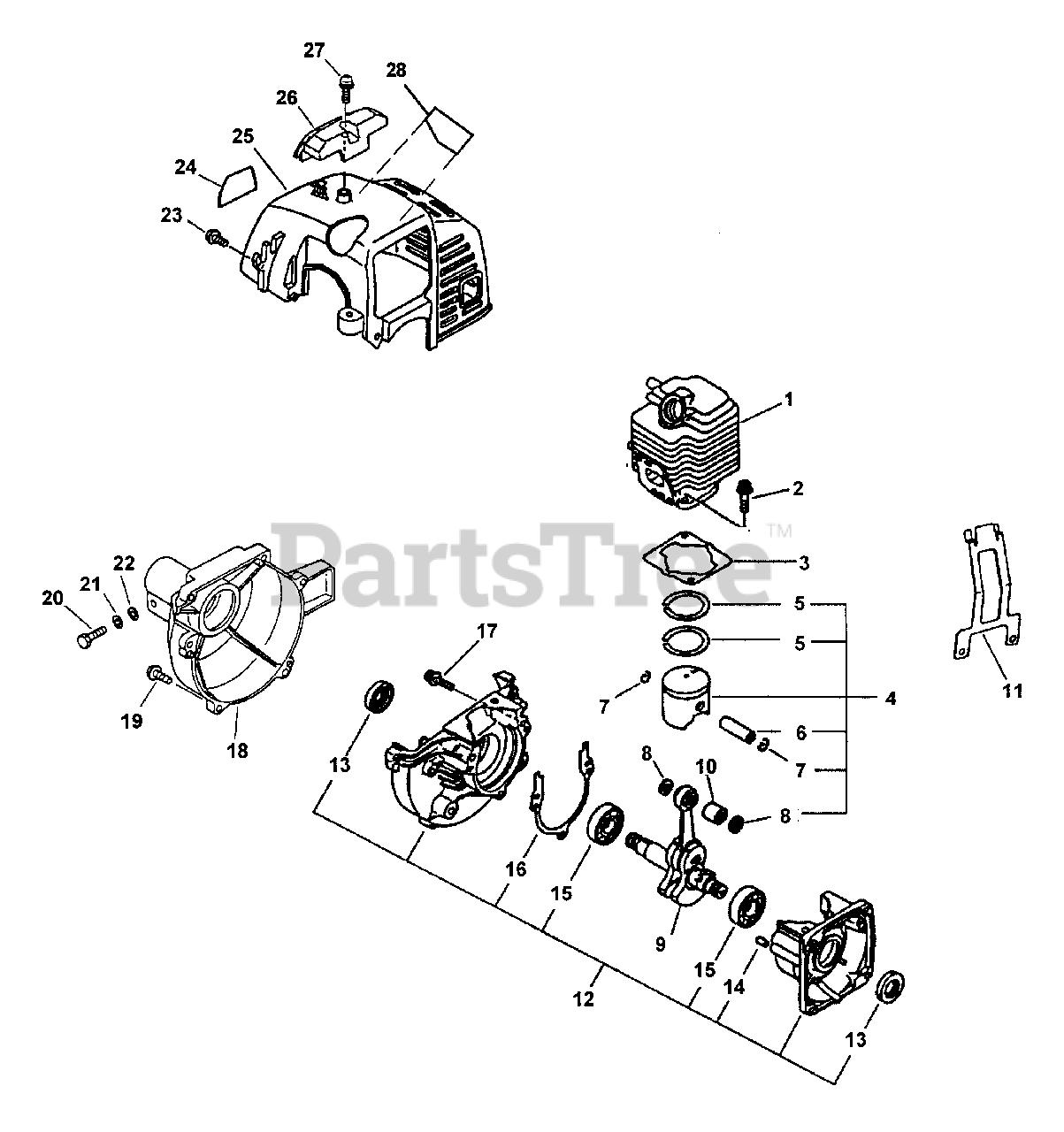

PPF-2110 - Echo Pole Saw (Type 1E) (SN: 001001 - 506099) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Pole Saw (Type 1E)

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10101146831

CYLINDER
(Superseded to 10101106561)

$109.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900044632

$3.99

$

In Stock, Qty 20+

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

9

Echo 10010054130

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 10

$155.99

$

In Stock, only 1 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10158746730

GUARD, ENGINE

$3.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: INCLUDES ITEMS 13 - 17

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

16

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900044632

$

$

Not available

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo 10151144630

CASE, FAN - ORANGE

$43.99

$

Usually ships in 2-4 days

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

20

Echo 90015105025

BOLT - 5X25

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

24

Echo 89011224660

LABEL - MODEL PPF-2110

$1.99

$

Usually ships in 2-4 days

0

25

Echo 10151444531

COVER, ENGINE - ORANGE

$20.99

$

In Stock, only 2 left!

0

26

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0

27

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

28

Echo 89016022660

LABEL - CAUTION
(Superseded to 89016022661)

$7.99

$

In Stock, Qty 5

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

Note: INCLUDES THE FOLLOWING ITEMS

$34.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 20+

0
