PPF-2110 - Echo Pole Saw (Type 1E) (SN: 501890 - 999999) Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

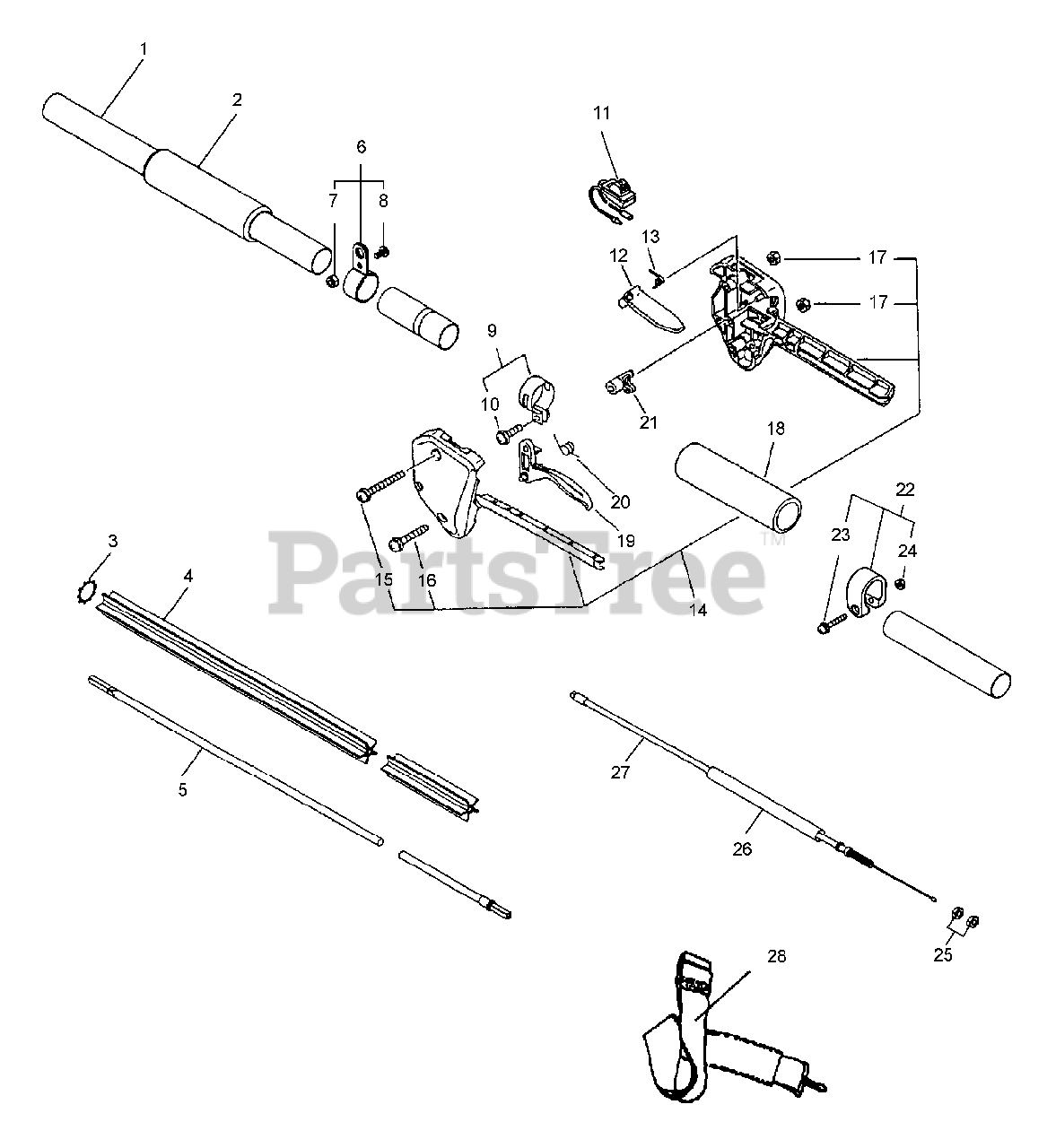

Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 61060924660

MAIN PIPE ASSY
(Superseded to 61060924661)

Note: FOR MODEL (PPF-2100). INCLUDES ITEMS 2 - 4

$83.99

$

In Stock, only 2 left!

0

1

Echo 61020624660

MAIN PIPE ASSY

Note: FOR MODEL (PPF-2110). INCLUDES ITEMS 2 - 4

$204.99

$

Usually ships in 2-4 days

0

2

Echo 35131122060

GRIP, HANDLE

$9.99

$

Usually ships in 2-4 days

0

3

Echo 90003800100

WASHER

$0.99

$

In Stock, Qty 9

0

4

Echo 61021722060

LINER - FLEXIBLE
(Superseded to 61021722061)

$27.99

$

Usually ships in 2-4 days

0

5

Echo 61001322060

DRIVESHAFT - FLEXIBLE

$17.99

$

Usually ships in 2-4 days

0

6

Echo 30060522060

HANGER KIT

Note: Includes ITEMS 7 & 8

$6.99

$

Usually ships in 2-4 days

0

7

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

8

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

$11.99

$

In Stock, only 2 left!

0

10

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

11

Echo 16340155631

SWITCH ASSY, ON-OFF

$10.99

$

In Stock, only 2 left!

0

12

Echo 17809052632

LEVER, THROTTLE LOCKOUT

$3.99

$

In Stock, Qty 15

0

13

Echo 17801352630

SPRING, TORSION

$2.99

$

In Stock, Qty 10

0

14

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes ITEMS 15-17

$5.99

$

In Stock, only 3 left!

0

15

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

16

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

19

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

20

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

21

Echo 17801252730

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 4 left!

0

22

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 23 & 24

$11.99

$

In Stock, only 2 left!

0

23

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

26

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

27

Echo 17800156730

CABLE, THROTTLE

$12.99

$

In Stock, only 1 left!

0

28

Echo 30100022060

STRAP ASSY, SHOULDER

$35.99

$

In Stock, only 2 left!

0
