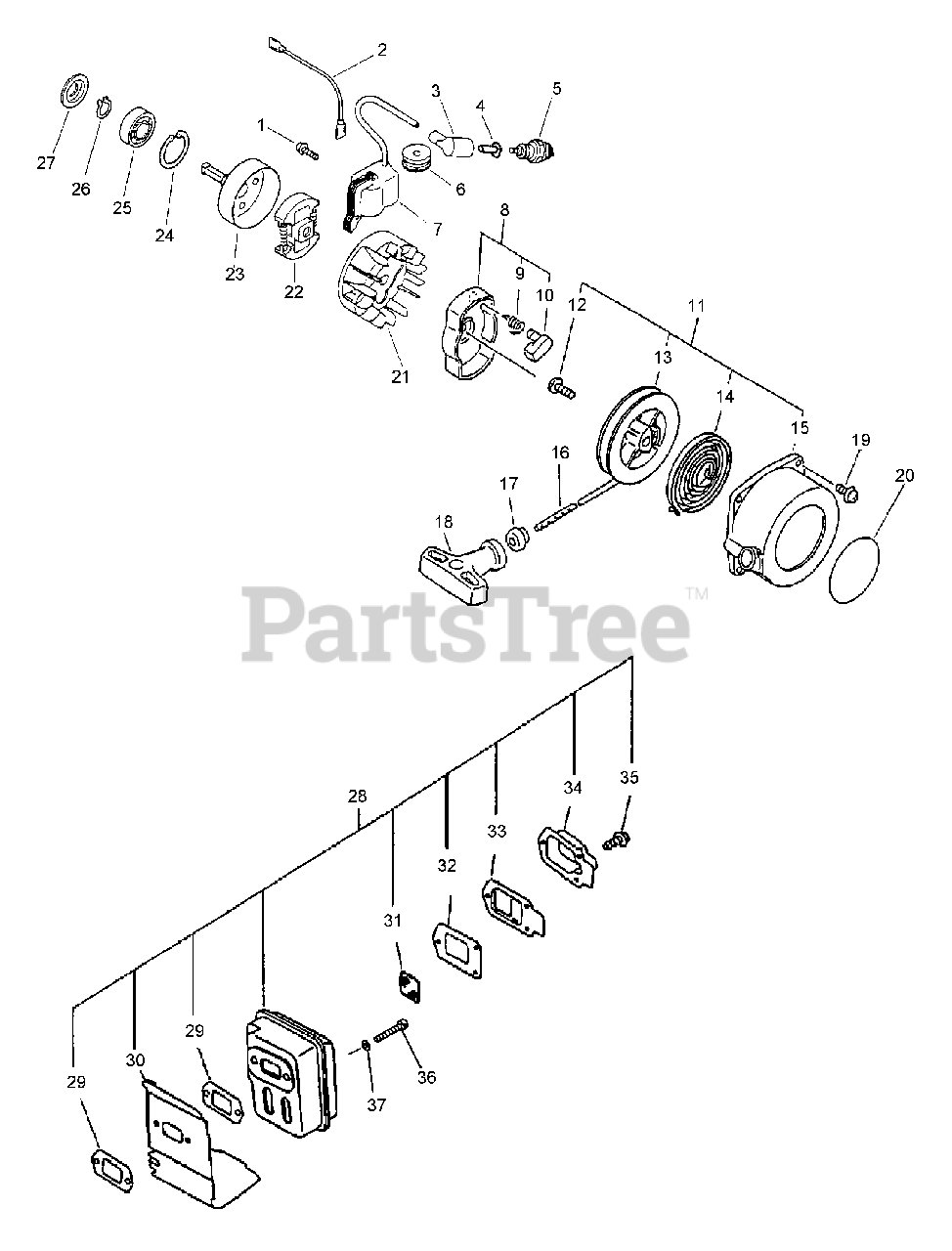

PPF-2110 - Echo Pole Saw (Type 1E) (SN: 501890 - 999999) Ignition, Starter, Clutch, Muffler Parts Diagram

Pole Saw (Type 1E)

Ignition, Starter, Clutch, Muffler Parts Diagram

  • Title

1

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

3

Echo 15901210230

CAP, SPARK PLUG

$13.99

$

Usually ships in 2-4 days

0

4

Echo 15901605330

ADAPTER, SPARK PLUG CAP

$1.99

$

Usually ships in 2-4 days

0

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

5

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

6

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

7

Echo 15662652730

COIL, IGNITION
(Superseded to 15662652731)

$

$

Not available

8

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 9 & 10

$19.99

$

In Stock, only 3 left!

0

9

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

10

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

11

Echo 17720042033

STARTER ASSY

Note: Includes ITEMS 12-18

$58.99

$

In Stock, Qty 12

0

12

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

13

Echo 17721544430

REEL, ROPE

$10.99

$

In Stock, Qty 11

0

14

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 9

0

15

Echo 17723242032

CASE, STARTER

$24.99

$

In Stock, only 2 left!

0

16

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

17

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

18

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

20

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

21

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

22

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

23

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

24

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

25

Echo 90081406201

BEARING, BALL - 6201
(Superseded to 9405406201)

$14.99

$

Usually ships in 2-4 days

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 17505304920

RETAINER, PIPE

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14580054130

MUFFLER ASSY
(Superseded to 14580054131)

Note: INCLUDES ITEMS 29 - 35

$73.99

$

Usually ships in 2-4 days

0

29

Echo V104000160

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900005063

$2.49

$

In Stock, Qty 20+

0

30

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

Note: USE GASKET KIT P/N 88900005063

$5.99

$

In Stock, only 2 left!

0

31

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

32

Echo 14586642031

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900005063

$2.99

$

In Stock, Qty 6

0

33

Echo 14587642030

GASKET, EXHAUST - INNER

$4.99

$

In Stock, only 3 left!

0

34

Echo 14586354130

GUIDE, EXHAUST - OUTER

$4.49

$

Usually ships in 2-4 days

0

35

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

36

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

37

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

$41.99

$

In Stock, only 2 left!

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
