PPF-2110 - Echo Pole Saw (Type 1E) (SN: 501890 - 999999) Intake, Air Filter, Fuel System Parts Diagram

Pole Saw (Type 1E)

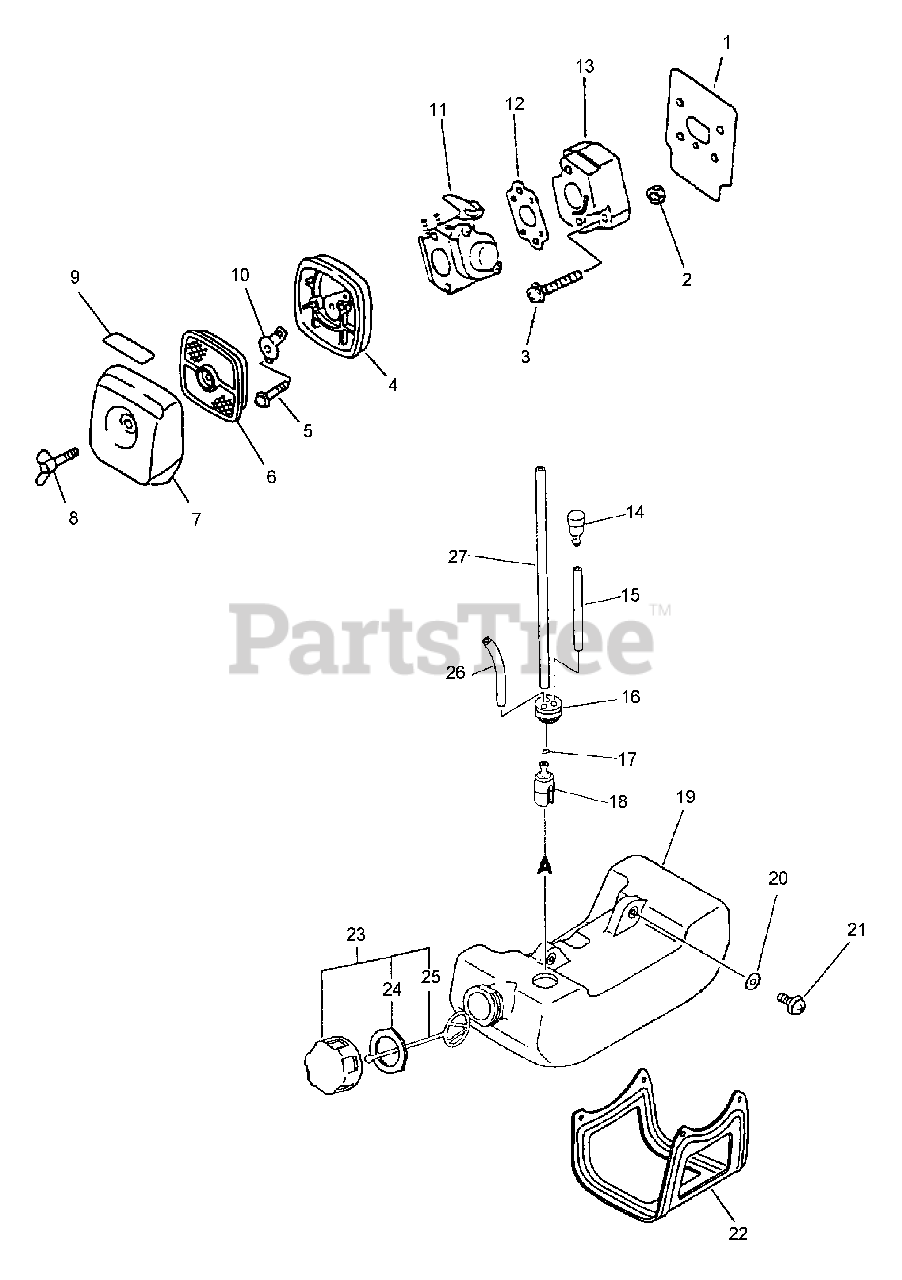

Intake, Air Filter, Fuel System Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: USE GASKET KIT P/N 88900005063

$2.49

$

In Stock, Qty 20+

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

4

Echo 13030744530

CASE, AIR FILTER
(Superseded to 13030706960)

$21.99

$

In Stock, only 2 left!

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.99

$

In Stock, Qty 20+

0

7

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.99

$

In Stock, Qty 20+

0

8

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

9

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 9

0

10

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

11

Echo 12520013311

CARBURETOR C1U-K52
(Superseded to 12520013312)

$87.99

$

In Stock, Qty 20+

0

12

Echo 13001642031

GASKET, INTAKE

Note: USE GASKET KIT P/N 88900005063

$1.49

$

In Stock, Qty 20+

0

13

Echo 13001742031

INSULATOR, INTAKE

$10.99

$

In Stock, Qty 5

0

14

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

15

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

16

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

17

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

19

Echo 13100546831

FUEL TANK ASSY

$16.99

$

Usually ships in 2-4 days

0

20

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

22

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

23

Echo 13100408960

CAP ASSY
(Superseded to P100006620)

Note: Includes ITEMS 24-25

$7.99

$

Usually ships in 2-4 days

0

24

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

25

Echo 13105152430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

26

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

27

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0
