PPF-225 - Echo Pole Saw (SN: U68414001001 - U68414999999) Fuel System Parts Diagram

Pole Saw

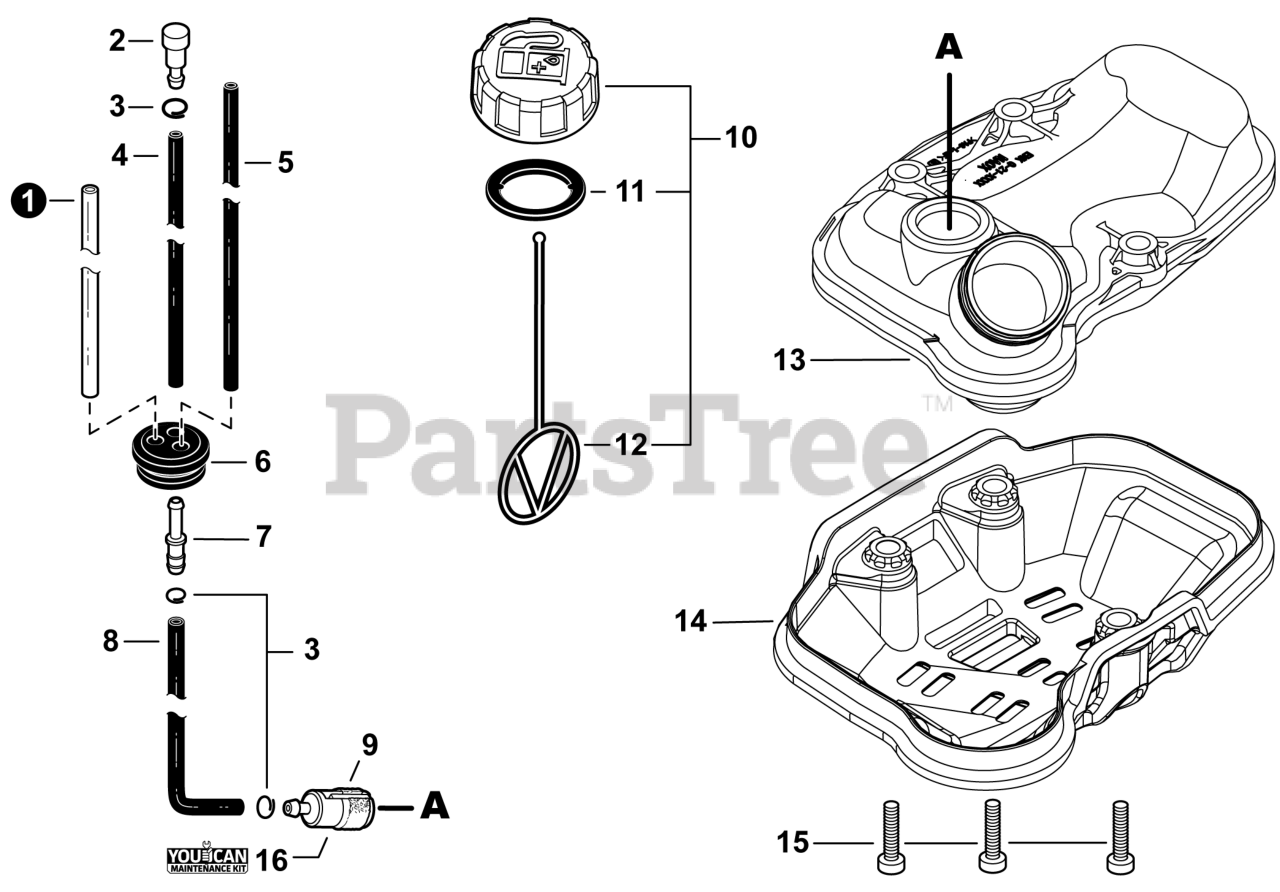

Fuel System Parts Diagram

  • Title

1

Echo 13201049730

PIPE, FUEL 3x6x85 YELLOW

$2.49

$

In Stock, Qty 15

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001211

PIPE, FUEL 3x5x90 BLACK

$0.99

$

In Stock, Qty 20+

0

5

Echo V471005630

PIPE, FUEL 3x5.5x78 BLACK

$3.49

$

In Stock, only 4 left!

0

6

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V470002460

PIPE, FUEL 3x5x90L BLACK

$5.49

$

Usually ships in 2-4 days

0

9

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

10

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 11-12

$5.99

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

13

Echo A350002790

TANK ASSY, FUEL

$10.99

$

Usually ships in 2-4 days

0

14

Echo A175000410

GUARD, FUEL TANK

$4.49

$

Usually ships in 2-4 days

0

15

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

16

Echo 90152Y

TUNE-UP KIT - YOUCANT

$20.99

$

In Stock, Qty 20+

0
