PPF-280 - Echo Pole Saw (SN: E09511001001 - E09511999999) Gear Case Parts Diagram

Pole Saw

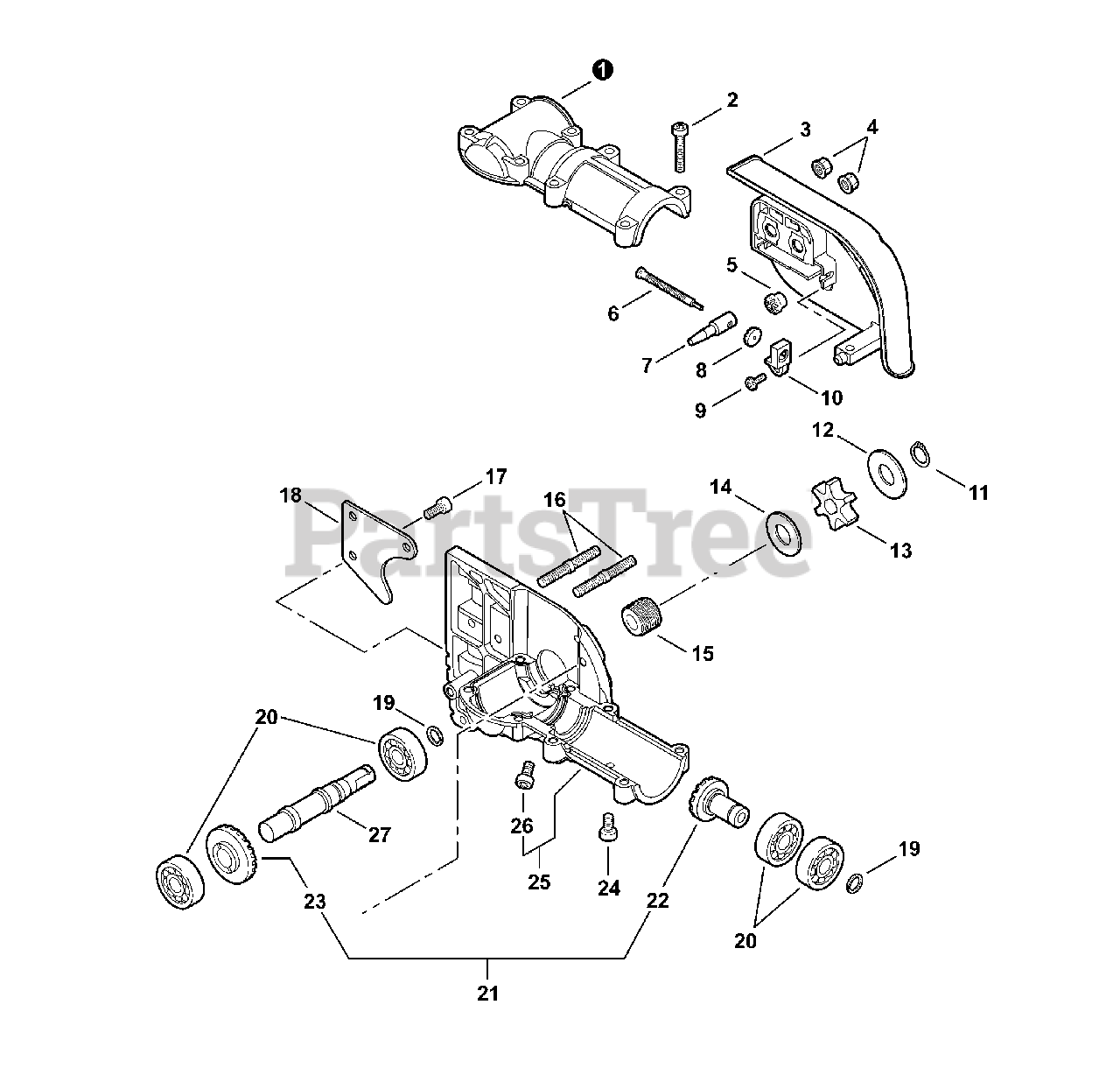

Gear Case Parts Diagram

  • Title

1

Echo C531000010

COVER, GEAR CASE

$104.99

$

Usually ships in 2-4 days

0

2

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$8.99

$

In Stock, only 3 left!

0

4

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

5

Echo V651000320

GEAR - 14 TOOTH

$2.49

$

In Stock, Qty 20+

0

6

Echo V203000041

BOLT 5

$6.99

$

In Stock, Qty 15

0

7

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

8

Echo V651000310

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 20+

0

9

Echo V252000040

SCREW 4

$1.99

$

In Stock, Qty 7

0

10

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

11

Echo V583000090

RING, SNAP

$0.99

$

In Stock, Qty 9

0

12

Echo V307000160

WASHER 10

$0.99

$

In Stock, Qty 13

0

13

Echo C580000070

SPROCKET, DRIVE

$5.99

$

In Stock, Qty 11

0

14

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

15

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, only 2 left!

0

16

Echo V224000040

BOLT, STUD 6

$1.49

$

In Stock, Qty 18

0

17

Echo V253000200

SCREW 5×10

$0.99

$

In Stock, Qty 6

0

18

Echo C649000140

HOOK

$2.99

$

Usually ships in 2-4 days

0

19

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

20

Echo 9404206001

BEARING, BALL

$11.99

$

In Stock, only 2 left!

0

21

Echo P021009731

GEAR SET
(Superseded to P021009732)

Note: Includes Items 22-23

$89.99

$

Usually ships in 2-4 days

0

22

Echo V651000230

GEAR, BEVEL

$37.99

$

Usually ships in 2-4 days

0

23

Echo V651000201

GEAR, BEVEL - 23 TOOTH
(Superseded to P021009732)

$89.99

$

Usually ships in 2-4 days

0

24

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

25

Echo C531000460

CASE, GEAR

Note: Includes Item 26

$69.99

$

In Stock, only 1 left!

0

26

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

27

Echo C534000430

SHAFT, GEAR

$18.99

$

Usually ships in 2-4 days

0
