PPF-280 - Echo Pole Saw (SN: E20714001001 - E20714999999) Engine Parts Diagram

Pole Saw

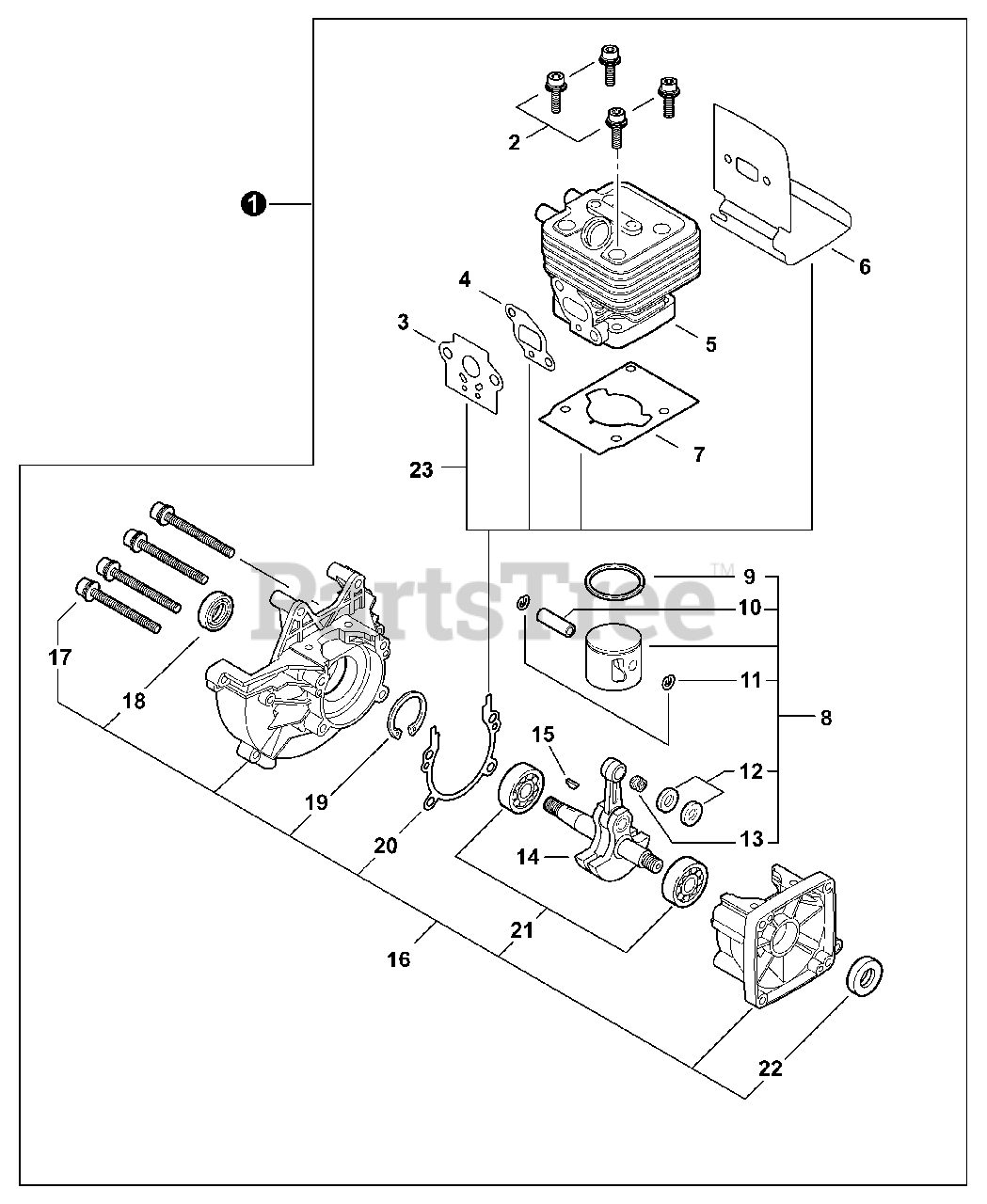

Engine Parts Diagram

  • Title

1

Echo SB1091

SHORT BLOCK

Note: Includes Items 2-22

$266.99

$

In Stock, Qty 10

0

2

Echo 9112805025

SCREW 5×25

$1.99

$

Usually ships in 2-4 days

0

3

Echo V103000160

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

4

Echo V103000380

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

5

Echo A130000800

CYLINDER

$125.99

$

In Stock, Qty 5

0

6

Echo V104000810

HEAT SHIELD, EXHAUST

$9.99

$

In Stock, only 2 left!

0

7

Echo V100000201

GASKET, CYLINDER

$6.49

$

In Stock, Qty 9

0

8

Echo P021047610

PISTON KIT

Note: Includes Items 9-13

$74.99

$

In Stock, only 3 left!

0

9

Echo A101000170

RING, PISTON

$11.99

$

In Stock, only 3 left!

0

10

Echo 10001335430

PIN, PISTON 6×9×27.8

$7.49

$

Usually ships in 2-4 days

0

11

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 13

0

12

Echo V306000520

WASHER, THRUST

$1.99

$

Usually ships in 2-4 days

0

13

Echo 10001216131

BEARING, NEEDLE 9

$13.99

$

In Stock, only 3 left!

0

14

Echo A011001370

CRANKSHAFT ASSY

$140.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 8

0

16

Echo P021010741

CRANKCASE KIT

Note: Includes Items 17-22

$162.99

$

Usually ships in 2-4 days

0

17

Echo 9112805028

BOLT 5×28

$1.99

$

Usually ships in 2-4 days

0

18

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 15

0

19

Echo 90070200032

RING, SNAP 32

$2.49

$

In Stock, only 2 left!

0

20

Echo V102000030

GASKET, CRANKCASE

$3.99

$

Usually ships in 2-4 days

0

21

Echo 9403536201

BEARING, BALL 6201

$9.99

$

Usually ships in 2-4 days

0

22

Echo V505000020

SEAL, OIL 12

$7.99

$

In Stock, Qty 16

0

23

Echo P021013800

GASKET KIT - REPOWER

$29.99

$

In Stock, Qty 10

0
