PPF-300 ES - Echo Pole Saw (SN: E06537001001 - E06537999999) Fuel System Parts Diagram

Pole Saw

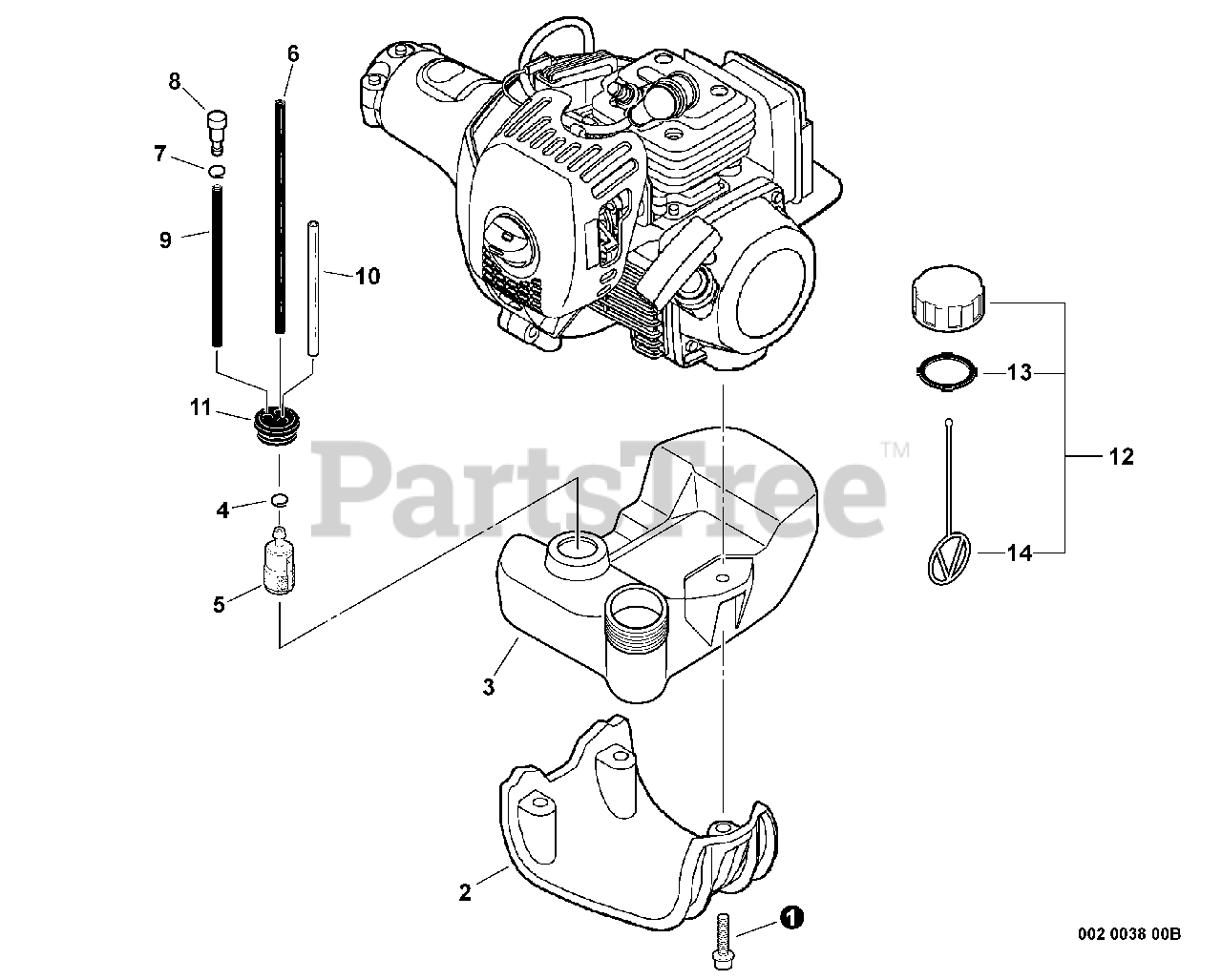

Fuel System Parts Diagram

  • Title

1

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, only 3 left!

0

2

Echo A175000040

GUARD, FUEL TANK

$9.99

$

In Stock, only 1 left!

0

3

Echo A350000900

TANK, FUEL

$35.99

$

In Stock, only 1 left!

0

4

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

5

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$8.49

$

In Stock, Qty 20+

0

6

Echo V470000580

PIPE, FUEL 3×5×195 BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 20+

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

9

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 5

0

10

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

11

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 17

0

12

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 13- 14

$7.49

$

In Stock, Qty 9

0

13

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0
