PPF-300 ES - Echo Pole Saw (SN: E06537001001 - E06537999999) Starter Parts Diagram

Pole Saw

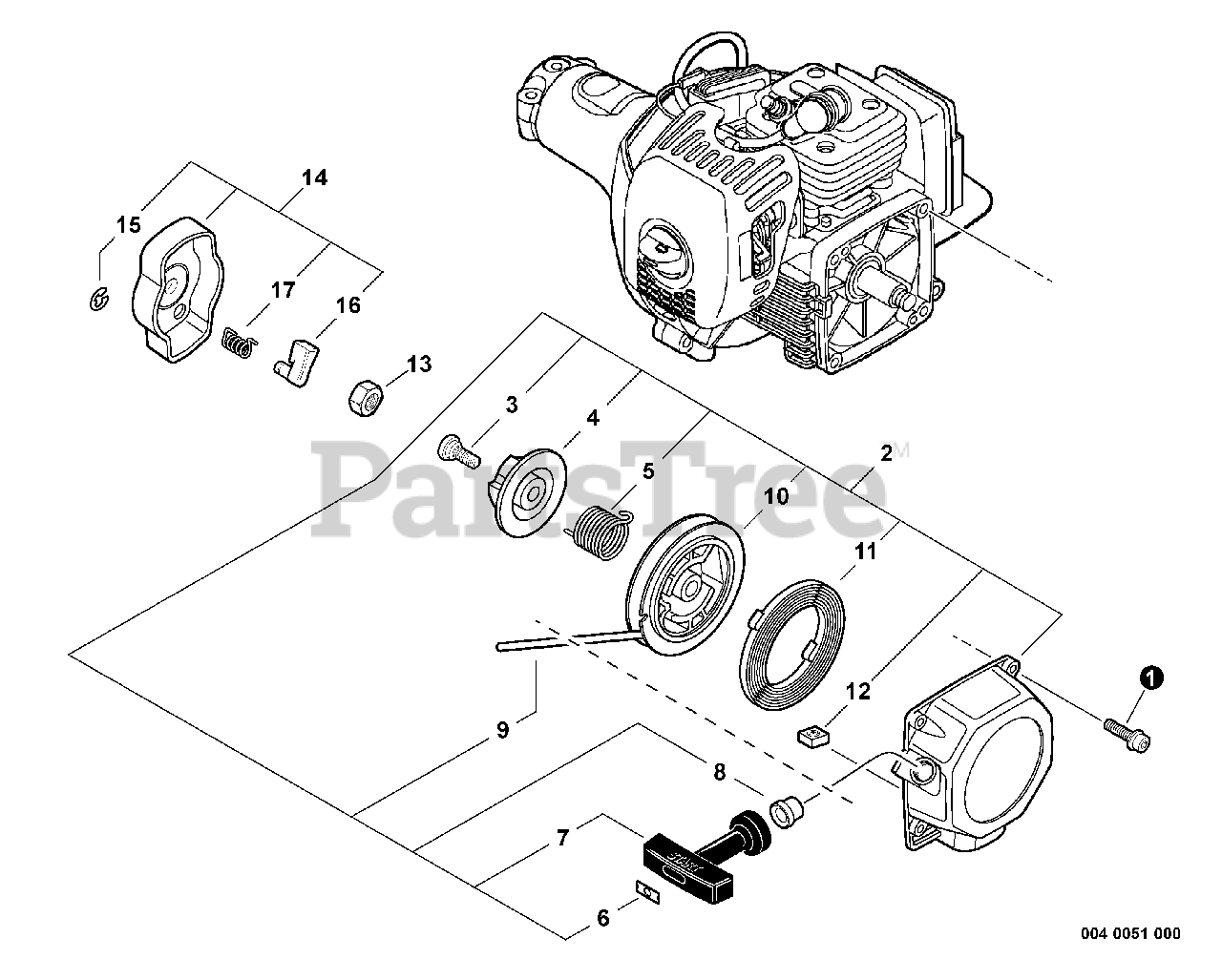

Starter Parts Diagram

  • Title

1

Echo V203000260

SCREW 5×16

$1.49

$

In Stock, Qty 13

0

2

Echo A051001211

STARTER ASSY
(Superseded to A051001212)

Note: Includes ITEMS 3-12

$96.99

$

Usually ships in 2-4 days

0

3

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

4

Echo P022008280

PLATE, CAM (NLA SEE PB 15-06)
(Superseded to Discontinued)

$

$

Not available

5

Echo P022008270

SPRING, TORSION

$9.49

$

In Stock, only 4 left!

0

6

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

7

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 3 left!

0

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo P022022110

ROPE, STARTER 3×700

Note: RePower BULK OPTION: 99944440000

$

$

Currently unavailable

10

Echo A506000080

REEL, ROPE
(Superseded to P021039550)

$30.99

$

In Stock, only 2 left!

0

11

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

12

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

14

Echo A052000180

PAWL ASSY, STARTER

Note: Includes ITEMS 15-17

$10.99

$

In Stock, Qty 9

0

15

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 5

0

16

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, Qty 5

0

17

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0
