PPFD-2400 - Echo Pole Saw (Type 1E) (SN: 001001 - 501000) Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

Pole Saw (Type 1E)

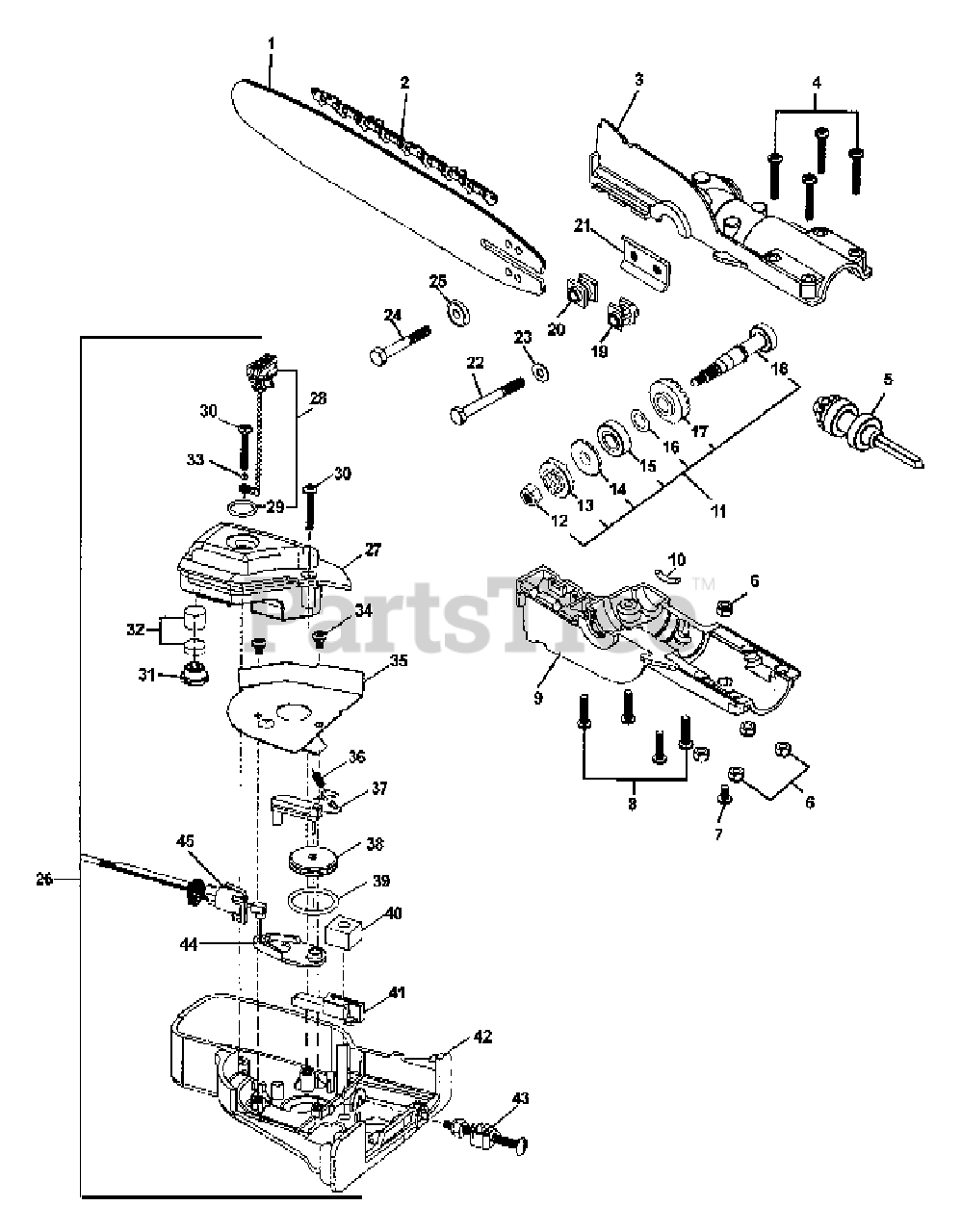

Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

  • Title

1

Echo 1120374401

GUIDE BAR - 12"

Note: GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$

$

Currently unavailable

2

Echo 1907044

SAWING CHAIN - 90SG - 12" -- MICRO-LITE

Note: GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$

$

Currently unavailable

3

Echo 61040722460

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

4

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

5

Echo 61030922360

SHAFT GEAR ASSY
(Superseded to 61030922361)

$63.99

$

In Stock, only 2 left!

0

6

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

7

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

8

Echo 90005300300

SCREW, TORX

$1.49

$

Usually ships in 2-4 days

0

9

Echo 61041022360

CASE, GEAR - LOWER

$13.99

$

Usually ships in 2-4 days

0

10

Echo 10491022360

CUSHION

$1.99

$

Usually ships in 2-4 days

0

11

Echo 61030622360

GEAR SHAFT ASSY

Note: Includes ITEMS 12-18

$136.99

$

In Stock, only 1 left!

0

12

Echo 90003000200

NUT, HEX

$0.99

$

In Stock, only 2 left!

0

13

Echo 30281022360

SPROCKET, DRIVE

$30.99

$

Usually ships in 2-4 days

0

14

Echo 30281222360

SPACER, SPROCKET

$9.49

$

Usually ships in 2-4 days

0

15

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

16

Echo 10013222060

WASHER 12

$0.99

$

Usually ships in 2-4 days

0

17

Echo 61031122360

GEAR, BEVEL

$20.99

$

Usually ships in 2-4 days

0

18

Echo 61036022360

SHAFT, GEAR

$28.99

$

Usually ships in 2-4 days

0

19

Echo 11007622460

SPACER

$9.99

$

Usually ships in 2-4 days

0

20

Echo 11007622360

SPACER
(Superseded to Discontinued)

$

$

Not available

21

Echo 43305522360

BRACKET

$11.99

$

In Stock, only 2 left!

0

22

Echo 90005600200

BOLT

$0.99

$

In Stock, only 2 left!

0

23

Echo 90003500200

WASHER, FLAT

$0.99

$

Usually ships in 2-4 days

0

24

Echo 90005100100

SCREW
(Superseded to V204000090)

$0.99

$

In Stock, Qty 13

0

25

Echo 17802022360

WASHER 6

$3.49

$

Usually ships in 2-4 days

0

26

Echo 43700022360

AUTO-OILER ASSY
(Superseded to 90081)

Note: INCLUDES ITEMS 27 - 45

$220.99

$

In Stock, Qty 9

0

27

Echo 43600522360

OIL TANK ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 28 - 33

$

$

Not available

28

Echo 43600122060

CAP, OIL

Note: Includes ITEM 29

$

$

Not available

29

Echo 43712222060

O-RING

$1.99

$

Usually ships in 2-4 days

0

30

Echo 90005200300

SCREW, TORX

$0.99

$

Usually ships in 2-4 days

0

31

Echo 43724322360

GROMMET, OIL

$1.99

$

In Stock, only 3 left!

0

32

Echo 43620522360

FILTER, OIL

$4.49

$

Usually ships in 2-4 days

0

33

Echo 27021722460

O-RING

$0.99

$

In Stock, Qty 8

0

34

Echo 90005200200

SCREW 8-32×1/4

$0.99

$

Usually ships in 2-4 days

0

35

Echo 69902522360

PLATE, PROTECTION

$26.99

$

Usually ships in 2-4 days

0

36

Echo 10494022360

SPRING, COMPRESSION

$1.49

$

Usually ships in 2-4 days

0

37

Echo 70700022360

LINK, OILER IDLER
(Superseded to Discontinued)

$

$

Not available

38

Echo 43706822360

CAM, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

39

Echo 43712222360

O-RING

$1.99

$

In Stock, only 2 left!

0

40

Echo 11007622560

SPACER
(Superseded to Discontinued)

$

$

Not available

41

Echo 16821822160

PIPE

$2.99

$

In Stock, only 3 left!

0

42

Echo 43760522360

COVER, OILER

$34.99

$

Usually ships in 2-4 days

0

43

Echo 43309522360

TENSIONER ASSY, CHAIN

$16.99

$

In Stock, only 2 left!

0

44

Echo 43704122360

LINK, OILER DRIVE

$5.49

$

Usually ships in 2-4 days

0

45

Echo 43700022460

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available
