PPFD-2400 - Echo Pole Saw (Type 1E) (SN: 001001 - 501000) Intake, Air Filter, Fuel System Parts Diagram

Pole Saw (Type 1E)

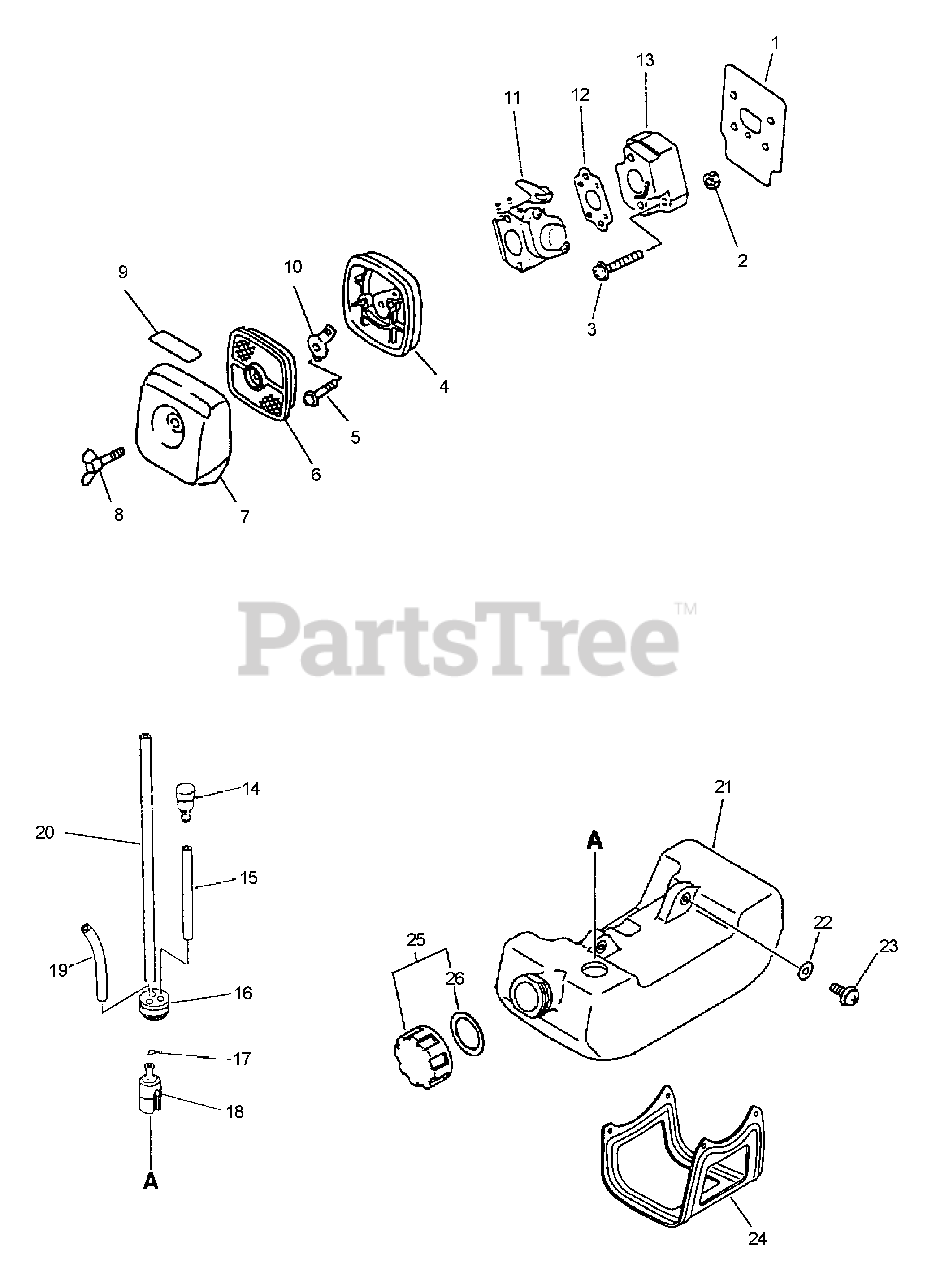

Intake, Air Filter, Fuel System Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900005960

$2.49

$

In Stock, Qty 20+

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

4

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$21.99

$

In Stock, only 2 left!

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT P/N 90008

$7.99

$

In Stock, Qty 20+

0

7

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.99

$

In Stock, Qty 20+

0

8

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

9

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 14

0

9

Echo 89033252730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

$4.49

$

In Stock, Qty 10

0

11

Echo 12300052132

CARBURETOR WT-424B
(Superseded to 12300052133)

$105.99

$

Usually ships in 2-4 days

0

12

Echo 13001005960

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900005960

$1.99

$

In Stock, Qty 12

0

13

Echo 13001742031

INSULATOR, INTAKE

$10.99

$

In Stock, Qty 5

0

14

Echo A356000031

VENT, FUEL TANK

Note: INCLUDED IN KIT P/N 90010

$8.99

$

In Stock, Qty 20+

0

15

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

16

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

17

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN KIT P/N 90008

$6.49

$

In Stock, Qty 20+

0

19

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

20

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

21

Echo 13100546831

FUEL TANK ASSY

$16.99

$

Usually ships in 2-4 days

0

22

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

24

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

25

Echo 13100453530

CAP ASSY
(Superseded to P200000820)

Note: INCLUDES ITEM 26. INCLUDED IN KIT P/N 90010

$8.49

$

In Stock, only 2 left!

0

26

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 889000005960

GASKET KIT

$

$

Currently unavailable

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
