PPSR-2122 - Echo Pole Saw (Type 1E) (SN: 505000 - 999999) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Pole Saw (Type 1E)

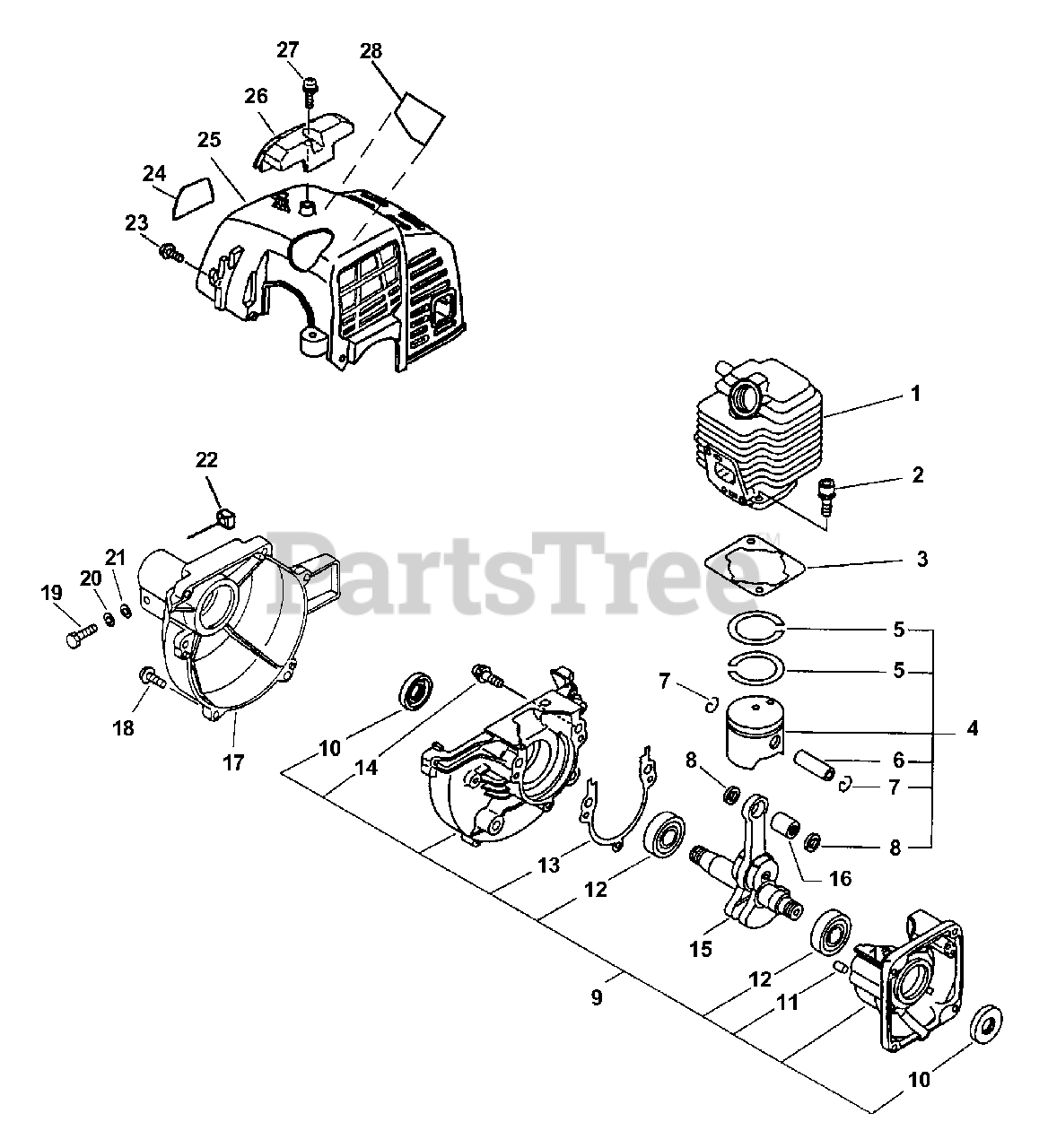

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

3

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN GASKET KIT P/N 88900042032

$4.99

$

In Stock, Qty 13

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 2 left!

0

5

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

9

------------------

CRANKCASE ASSY

Note: INCLUDES ITEMS 10-14. (USE P/N SB1026)

$

$

Not available

10

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

11

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

12

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

13

------------------

GASKET, CRANKCASE

Note: INCLUDED IN GASKET KIT P/N 88900042032

$

$

Not available

14

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

15

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 16. (USE SHORT BLOCK P/N SB1026)

$

$

Not available

16

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

17

Echo 10150744330

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016304018

SCREW - 4X18

$1.49

$

In Stock, Qty 17

0

19

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

21

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 90056550005

NUT - 5 -- SQUARE

$0.99

$

In Stock, Qty 20+

0

23

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 16

0

24

Echo 89011526260

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 10151444531

COVER, ENGINE - ORANGE

$24.99

$

In Stock, only 2 left!

0

26

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

27

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

28

Echo 89016022660

LABEL - CAUTION
(Superseded to 89016022661)

$9.49

$

In Stock, only 3 left!

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900042032

GASKET KIT
(Superseded to 88900042033)

Note: INCLUDES THE FOLLOWING

$19.99

$

In Stock, only 2 left!

0

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

Echo V104000003

GASKET, EXHAUST

$3.49

$

In Stock, Qty 10

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0
