PPSR-2433 - Echo Pole Saw (Type 1E) (SN: 001001 - 503999) Carburetor Parts Diagram

Pole Saw (Type 1E)

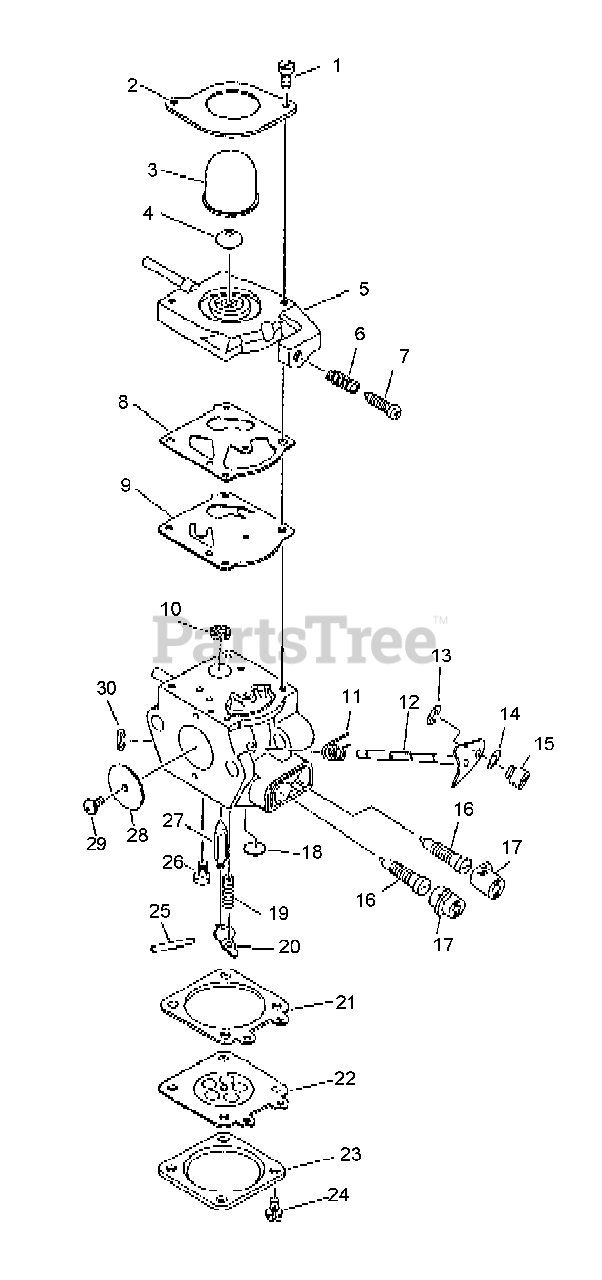

Carburetor Parts Diagram

  • Title

Echo 12300052132

CARBURETOR - WT-424B
(Superseded to 12300052133)

Note: INCLUDES THE FOLLOWING

$113.99

$

In Stock, only 1 left!

0

1

Echo 12311043130

SCREW

$7.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$8.49

$

In Stock, only 2 left!

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$5.49

$

In Stock, Qty 13

0

4

Echo 12317135630

VALVE, CHECK

$4.99

$

In Stock, Qty 6

0

5

Echo 12312443230

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 1 left!

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 1 left!

0

8

GASKET, PUMP

Note: USE REBUILD KIT P/N 12310052130 AND GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

9

DIAPHRAGM, PUMP

Note: USE REBUILD KIT P/N 12310052130 AND GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

10

STRAINER

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

11

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

12

Echo 12311752130

SHAFT, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

13

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

14

Echo 12314926030

WASHER

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

16

Echo 12312052131

NEEDLE, MIXTURE

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

18

PLUG, WELCH

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

19

SPRING, METERING LEVER

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

20

LEVER, METERING

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

21

GASKET, METERING

Note: USE REBUILD KIT P/N 12310052130 AND GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

22

DIAPHRAGM, METERING

Note: USE REBUILD KIT P/N 12310052130 AND GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

23

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

24

SCREW

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

25

SCREW

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

26

PIN, METERING LEVER

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

27

VALVE, INLET NEEDLE

Note: USE REBUILD KIT P/N 12310052130

$

$

Not available

28

Echo 12311652130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

29

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

30

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

Echo 12310052130

REPAIR KIT, CARBURETOR

$27.99

$

In Stock, only 2 left!

0

Echo 12310152130

DIAPHRAGM/GASKET KIT

$15.99

$

In Stock, only 3 left!

0
