PPT-2100 - Echo Pole Saw (Type 1E) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Pole Saw (Type 1E)

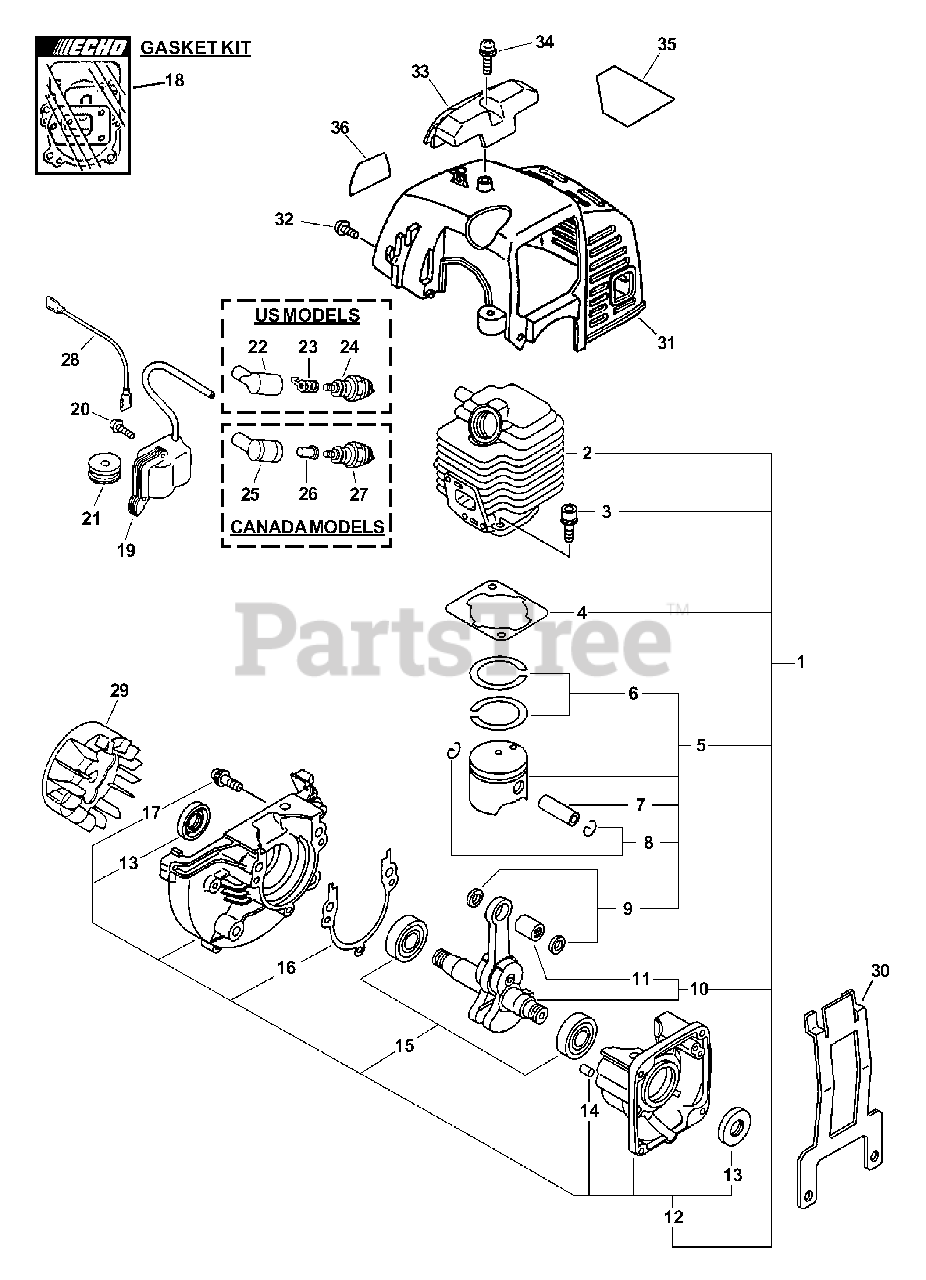

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1026

SHORT BLOCK ES-2100;PB-2100
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10101146831

CYLINDER
(Superseded to 10101106561)

$130.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

5

Echo 10000048732

PISTON KIT

Note: Includes ITEMS 6-9

$77.99

$

In Stock, only 2 left!

0

6

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000001

CRANKSHAFT ASSY
(Superseded to A011000002)

Note: Includes ITEM 11

$177.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-17

$

$

Not available

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

$41.99

$

In Stock, only 2 left!

0

19

Echo 15662652730

COIL, IGNITION
(Superseded to 15662652731)

$

$

Not available

20

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

21

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

22

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

23

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

24

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 15901210230

CAP, SPARK PLUG

Note: CANADA MODELS

$13.99

$

Usually ships in 2-4 days

0

26

Echo 15901605330

ADAPTOR, SPARK PLUG - CAP

Note: CANADA MODELS

$1.99

$

Usually ships in 2-4 days

0

27

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

28

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

29

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

30

Echo 10158746730

GUARD, ENGINE

Note: S/N: 001001-503549 ONLY

$4.99

$

Usually ships in 2-4 days

0

31

Echo 10151444531

COVER, ENGINE - ORANGE

$24.99

$

In Stock, only 2 left!

0

32

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

33

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

34

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

35

Echo 89016022660

LABEL, CAUTION
(Superseded to 89016022661)

$9.49

$

In Stock, only 3 left!

0

36

Echo 89006824661

LABEL, MODEL
(Superseded to X547000910)

$

$

Not available
