PPT-230 - Echo Pole Saw (SN: 04001001 - 04999999) Carburetor -- RB-K57B Parts Diagram

Pole Saw

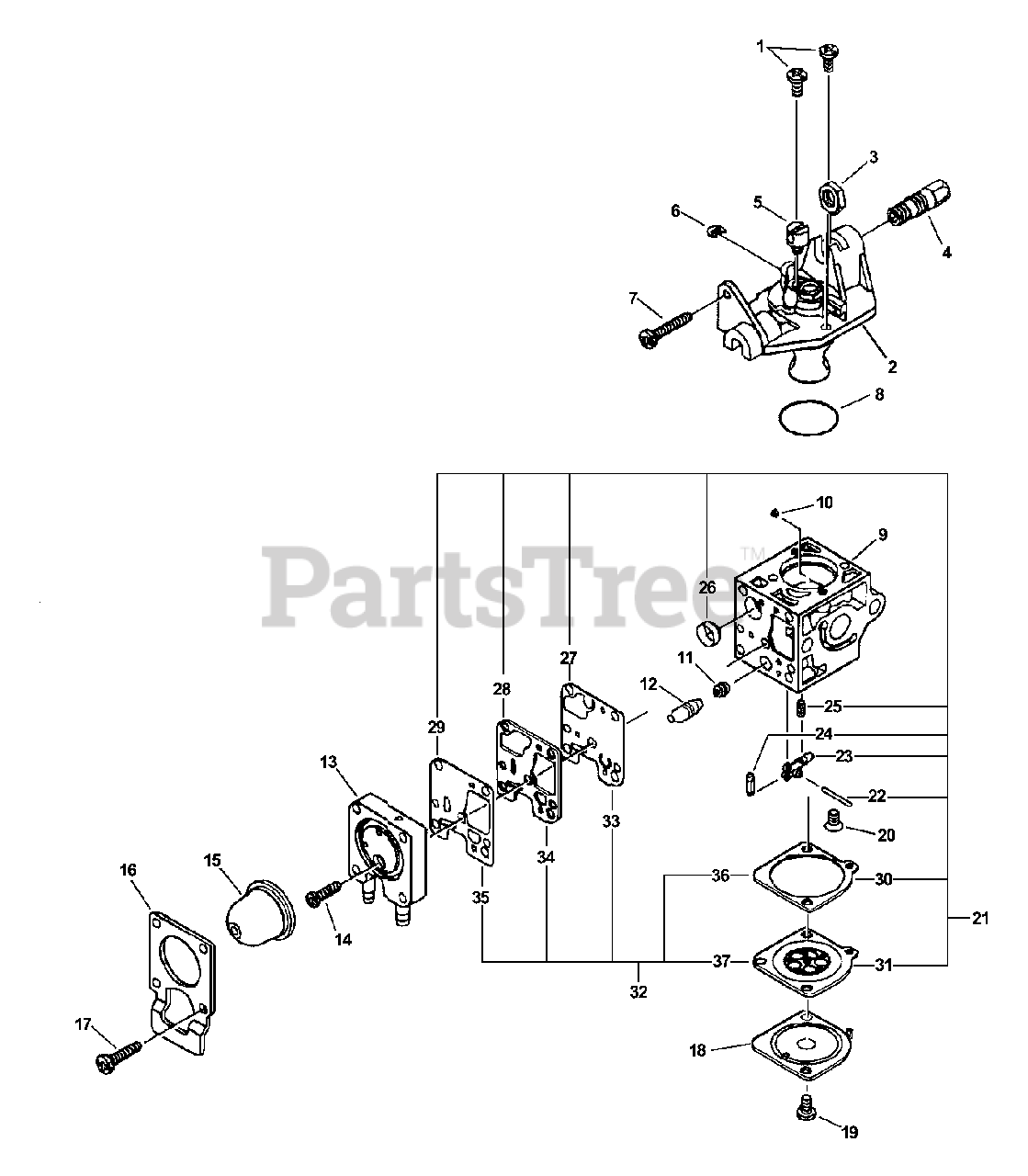

Carburetor -- RB-K57B Parts Diagram

  • Title

Echo A021000062

CARBURETOR - RB-K57B
(Superseded to A021000063)

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo P005000360

ROTOR COVER ASSY

$38.99

$

Usually ships in 2-4 days

0

3

Echo P005000120

NUT

$4.49

$

In Stock, only 2 left!

0

4

Echo P005000110

ADJUSTER, THROTTLE CABLE

$4.49

$

Usually ships in 2-4 days

0

5

Echo P005000180

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

6

Echo P005000190

E-RING

$0.99

$

In Stock, only 3 left!

0

7

Echo P005000100

SCREW, IDLE ADJUST

$6.49

$

In Stock, only 2 left!

0

8

Echo P005000280

O-RING

$4.49

$

In Stock, only 3 left!

0

9

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

10

Echo P005000290

GUIDE, ROLLER

$1.99

$

Usually ships in 2-4 days

0

11

Echo P005000380

JET, MAIN

$3.99

$

Usually ships in 2-4 days

0

12

Echo P005000370

PLUG KIT

$

$

Not available

13

Echo P005000240

BASE, PURGE

$24.99

$

Usually ships in 2-4 days

0

14

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

15

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

16

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 14

0

17

Echo P005000260

SCREW, PURGE BULB RETAINER
(Superseded to 12531061830)

$0.99

$

In Stock, Qty 20+

0

18

Echo 12534252130

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

19

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

20

Echo P005000020

SCREW, METERING LEVER PIN
(Superseded to 12533942030)

$0.99

$

In Stock, Qty 11

0

21

Echo P005000350

REBUILD KIT

Note: INCLUDES ITEMS 22-31

$16.99

$

In Stock, only 1 left!

0

22

PIN, METERING LEVER

$

$

Not available

23

LEVER, METERING

$

$

Not available

24

VALVE, INLET NEEDLE

$

$

Not available

25

SPRING, METERING LEVER

$

$

Not available

26

STRAINER

$

$

Not available

27

DIAPHRAGM, PUMP

$

$

Not available

28

GASKET, PUMP

$

$

Not available

29

DIAPHRAGM, SURGE

$

$

Not available

30

GASKET, DIAPHRAGM

$

$

Not available

31

DIAPHRAGM, METERING

$

$

Not available

32

Echo P005000340

GASKET / DIAPHRAGM KIT

Note: INCLUDES ITEMS 33-37

$9.49

$

In Stock, only 2 left!

0

33

DIAPHRAGM, PUMP

$

$

Not available

34

GASKET, PUMP

$

$

Not available

35

DIAPHRAGM, SURGE

$

$

Not available

36

GASKET, DIAPHRAGM

$

$

Not available

37

DIAPHRAGM, METERING

$

$

Not available
