PPT-230 - Echo Pole Saw (SN: 06001001 - 06999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Pole Saw

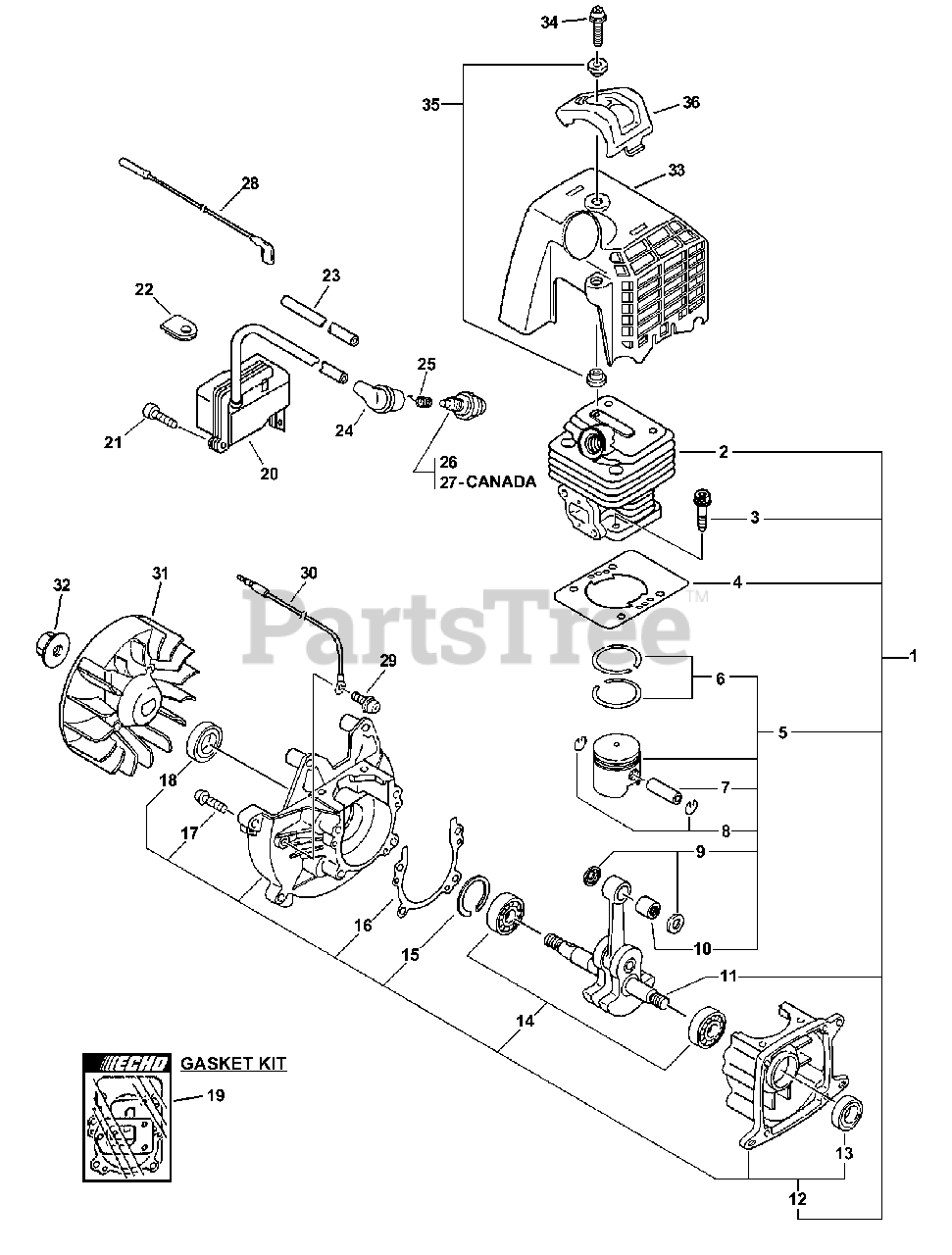

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1061

SHORT BLOCK -- SB1061

Note: INCLUDES ITEMS 2-18

$208.99

$

Usually ships in 2-4 days

0

2

Echo A130000341

CYLINDER

$184.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000060

GASKET, CYLINDER

$7.49

$

In Stock, only 2 left!

0

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: Includes ITEMS 6-9

$86.99

$

In Stock, only 3 left!

0

6

Echo A101000000

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, Qty 9

0

10

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

11

Echo A011000042

CRANKSHAFT ASSY

$197.99

$

Usually ships in 2-4 days

0

12

Echo P021000940

CRANKCASE KIT
(Superseded to P021000941)

Note: Includes ITEMS 13-18

$233.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

14

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 4 left!

0

15

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

16

Echo 10024255930

GASKET, CRANKCASE

$3.99

$

In Stock, only 4 left!

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL - 12

$4.99

$

In Stock, only 4 left!

0

19

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

20

Echo A411000110

COIL, IGNITION
(Superseded to P021003910)

$71.99

$

In Stock, only 4 left!

0

21

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

22

Echo 15611240630

GROMMET

$1.49

$

In Stock, Qty 20+

0

23

Echo V475002200

TUBE, INSULATOR

$1.99

$

In Stock, Qty 10

0

24

Echo 15901203433

CAP, SPARK PLUG

$7.99

$

In Stock, Qty 20+

0

25

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

26

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

27

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

28

Echo 16201056430

LEAD - IGNITION

$7.49

$

In Stock, only 1 left!

0

29

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

30

Echo 16201452930

LEAD - GROUND

$5.49

$

In Stock, only 1 left!

0

31

Echo A409000130

FLYWHEEL
(Superseded to A409001190)

$107.99

$

In Stock, only 3 left!

0

32

Echo 90051500008

NUT - 8 -- FLANGE

$1.99

$

In Stock, only 4 left!

0

33

Echo A160000060

COVER, ENGINE - ORANGE
(Superseded to A160000061)

$10.99

$

In Stock, only 2 left!

0

34

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

35

Echo V353000020

COLLAR - 5

$1.99

$

In Stock, only 2 left!

0

36

Echo A162000000

GUARD - TOP

$11.99

$

In Stock, only 1 left!

0
