PPT-230 - Echo Pole Saw (SN: 06001001 - 06999999) Intake Parts Diagram

Pole Saw

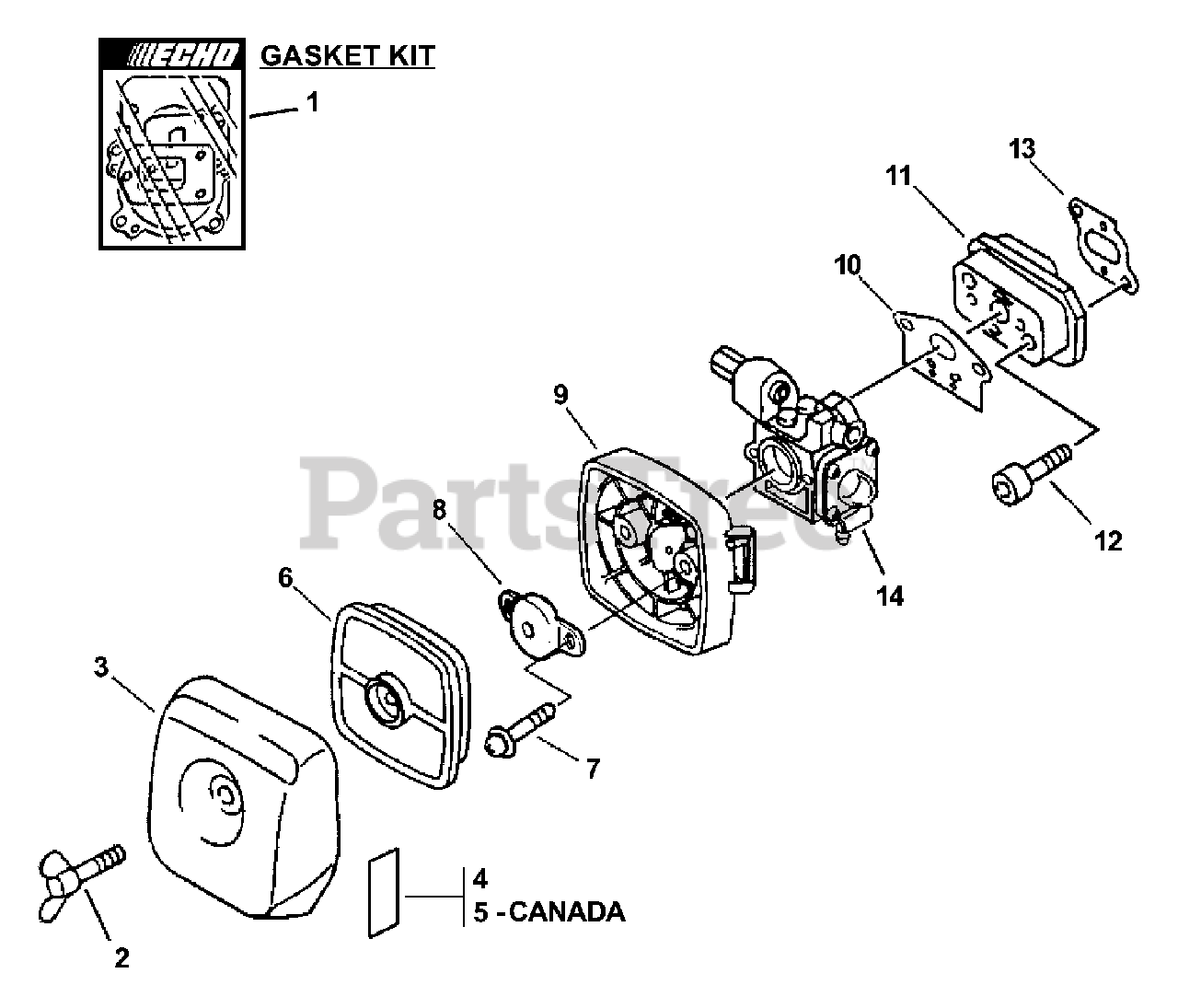

Intake Parts Diagram

  • Title

1

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 13

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

4

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 14

0

5

Echo 89033252730

LABEL, CHOKE

Note: CANADA MODELS

$1.49

$

In Stock, Qty 20+

0

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

7

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, only 3 left!

0

9

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$11.99

$

In Stock, only 1 left!

0

10

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001756431

INSULATOR, INTAKE

$15.99

$

In Stock, only 2 left!

0

12

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001055930

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 5

0

14

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
