PPT-235 E - Echo Pole Saw (SN: E07037001001 - E07037999999) Fuel System Parts Diagram

Pole Saw

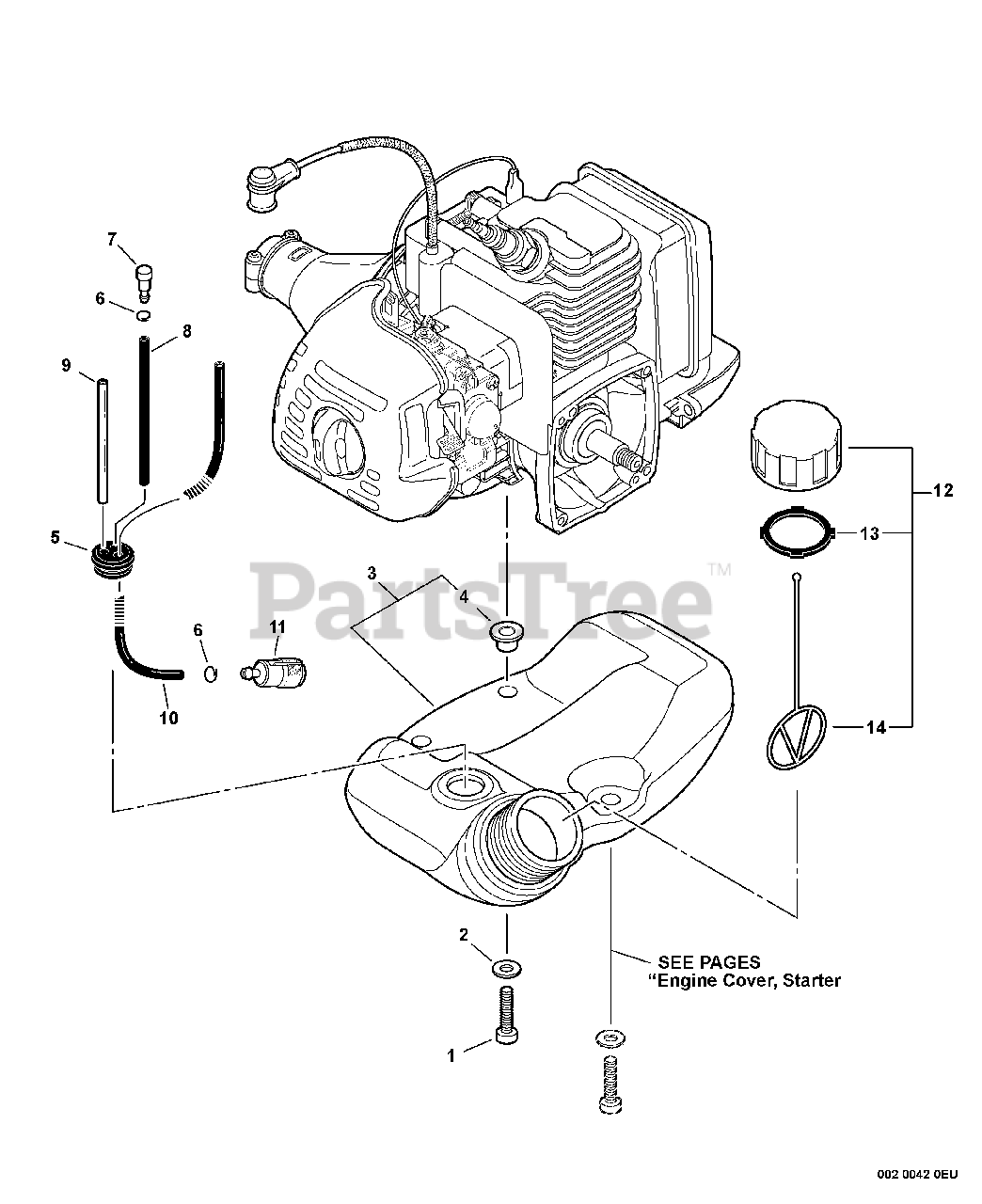

Fuel System Parts Diagram

  • Title

1

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo A350000830

TANK, FUEL

Note: Includes ITEM 4

$

$

Currently unavailable

4

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

5

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

6

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 6

0

7

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

8

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

9

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

10

Echo V470000840

PIPE, FUEL
(Superseded to V470000841)

$5.49

$

In Stock, only 1 left!

0

11

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

12

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes ITEMS 13-14

$

$

Not available

13

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0
