PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Clutch, Fan Case, Fuel System, Starter Parts Diagram

Pole Saw (Type 1E)

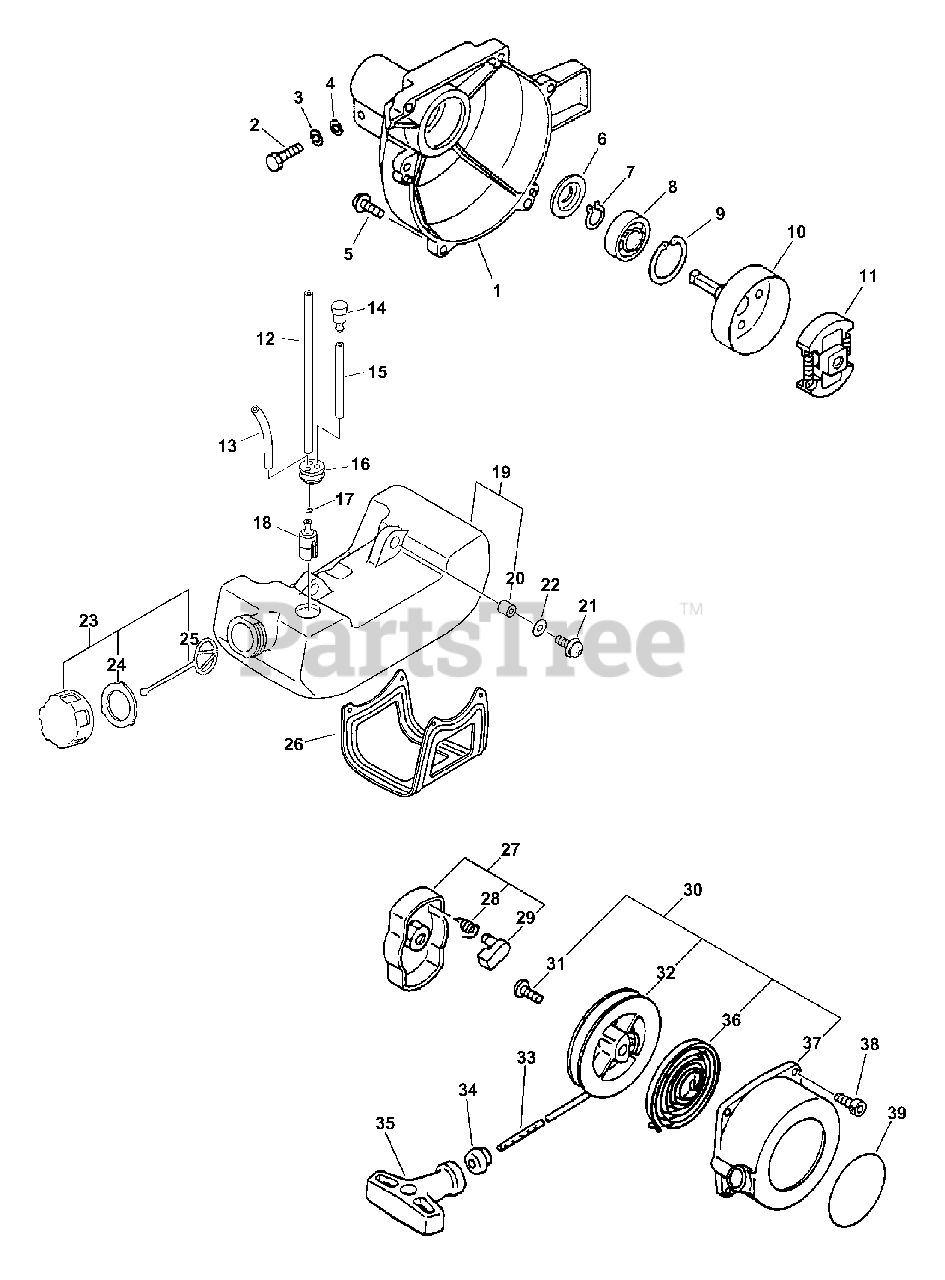

Clutch, Fan Case, Fuel System, Starter Parts Diagram

  • Title

1

Echo 101511-44630

CASE, FAN

$52.99

$

In Stock, only 2 left!

0

2

Echo 900151-05025

BOLT 5×25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

6

Echo 175053-04920

STOPPER, PIPE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

8

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

9

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

10

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

11

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

12

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

13

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

14

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

15

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

16

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

17

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

18

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

19

Echo 13100546831

TANK, FUEL

$18.99

$

In Stock, only 2 left!

0

20

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

21

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

22

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 13100455630

CAP ASSY, FUEL

Note: INCLUDES ITEMS 24-25

$11.99

$

Usually ships in 2-4 days

0

24

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

25

Echo 131051-52430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

26

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

27

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 28-29

$11.99

$

In Stock, Qty 9

0

28

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

29

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

30

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 31-37

$58.99

$

In Stock, Qty 10

0

31

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

32

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

33

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

34

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

35

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

36

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

37

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

38

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

39

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
