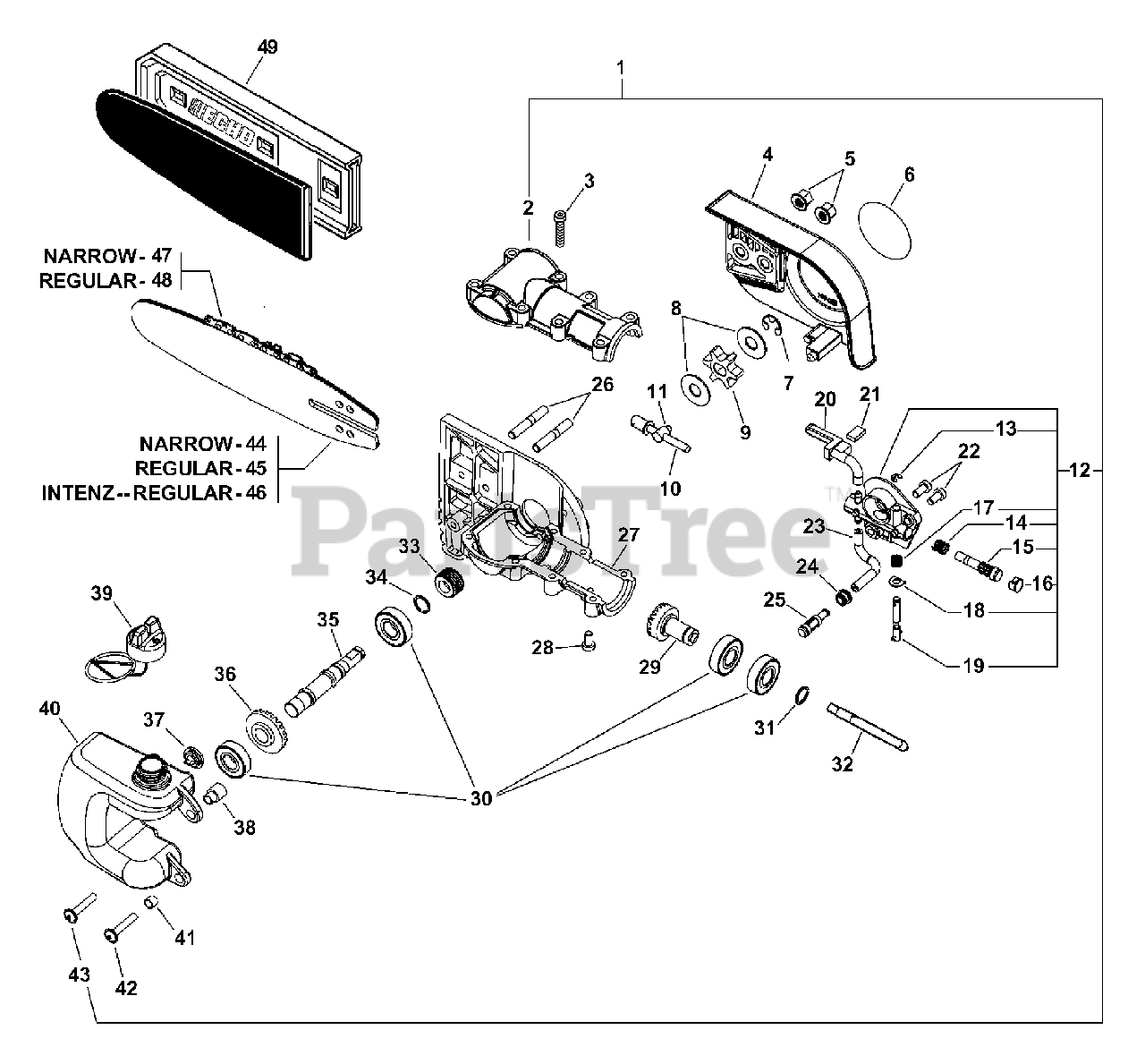

PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 505900 - 999999 Parts Diagram

Pole Saw (Type 1E)

Gear Case, Auto-Oiler, Guide Bar, Chain S/N: 505900 - 999999 Parts Diagram

  • Title

1

Echo 90083

OILER GEAR BOX ASSY
(Superseded to 90093)

Note: INCLUDES ITEMS 2-43

$220.99

$

In Stock, Qty 9

0

2

Echo C531000030

CASE, GEAR - UPPER Ø35

$110.99

$

In Stock, only 2 left!

0

3

Echo V253000000

SCREW M5×.25
(Superseded to 90010905025)

$0.99

$

In Stock, Qty 10

0

4

Echo C300000000

GUARD, SPROCKET
(Superseded to C300000001)

$20.99

$

In Stock, only 2 left!

0

5

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

6

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

7

Echo V583000010

RING, RETAINING Ø0.300

$0.99

$

In Stock, Qty 20+

0

8

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

9

Echo C580000070

SPROCKET, DRIVE

$5.99

$

In Stock, Qty 12

0

10

Echo 43301639131

BOLT 5

$5.49

$

In Stock, Qty 10

0

11

Echo 43301403931

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 5

0

12

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 13-19

$83.99

$

In Stock, only 2 left!

0

13

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

14

Echo 43701938330

SPRING

$4.49

$

Usually ships in 2-4 days

0

15

Echo 43702437330

PLUNGER ASSY

$28.99

$

Usually ships in 2-4 days

0

16

Echo 43706237330

CAP, OIL PUMP

$4.49

$

In Stock, only 3 left!

0

17

Echo 43701537330

SPRING

$4.49

$

Usually ships in 2-4 days

0

18

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

19

Echo 43701639130

ADJUSTER, OILER

$20.99

$

In Stock, only 2 left!

0

20

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, Qty 12

0

21

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, only 2 left!

0

22

Echo V253000010

SCREW M5×.8×10
(Superseded to Discontinued)

$

$

Not available

23

Echo 13011014330

PIPE, IMPULSE 3×6×75

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, only 1 left!

0

24

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

25

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

26

Echo V224000000

BOLT, STUD 6

$2.99

$

In Stock, Qty 9

0

27

Echo C531000040

CASE, GEAR
(Superseded to C051000120)

$98.99

$

Usually ships in 2-4 days

0

28

Echo V253000010

SCREW M5×.8×10
(Superseded to Discontinued)

$

$

Not available

29

Echo V651000040

GEAR, BEVEL
(Superseded to V651000041)

$35.99

$

In Stock, only 2 left!

0

30

Echo 9405206001

BEARING, BALL 6201

$

$

Currently unavailable

31

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

32

Echo 61002522360

CONNECTOR, DRIVE SHAFT
(Superseded to 61002522361)

$6.99

$

In Stock, only 2 left!

0

33

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, only 2 left!

0

34

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

35

Echo C534000020

SHAFT, GEAR
(Superseded to P021005391)

$

$

Not available

36

Echo 61031122060

GEAR, BEVEL
(Superseded to P021011610)

$

$

Not available

37

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

38

Echo V354000010

COLLAR 6

$7.99

$

Usually ships in 2-4 days

0

39

Echo P021000950

CAP ASSY, OIL
(Superseded to P021000951)

$3.49

$

In Stock, only 1 left!

0

40

Echo C200000000

TANK, OIL

$11.99

$

In Stock, only 2 left!

0

41

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

42

Echo V253000030

SCREW 5×16 MM

$1.99

$

Usually ships in 2-4 days

0

43

Echo V253000020

SCREW 5×28

$1.99

$

In Stock, Qty 5

0

44

Echo 1120374401

GUIDE BAR - 12"

Note: GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$

$

Currently unavailable

45

Echo 1121374401

GUIDE BAR - 12"
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$43.99

$

In Stock, Qty 12

0

46

Echo 1122374401

GUIDE BAR - 12" -- INTENZ
(Superseded to 12G0ZD3744C)

Note: GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$43.99

$

In Stock, Qty 12

0

47

Echo 1907044

SAWING CHAIN - 90SG - 12" -- MICRO-LITE

Note: GAUGE: .043" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$

$

Currently unavailable

48

Echo 1917044

SAWING CHAIN - 91VS - 12" -- LOW PROFILE

Note: GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable

$27.99

$

In Stock, Qty 20+

0

49

Echo 89851322360

SCABBARD
(Superseded to X490000050)

$5.49

$

In Stock, only 3 left!

0
