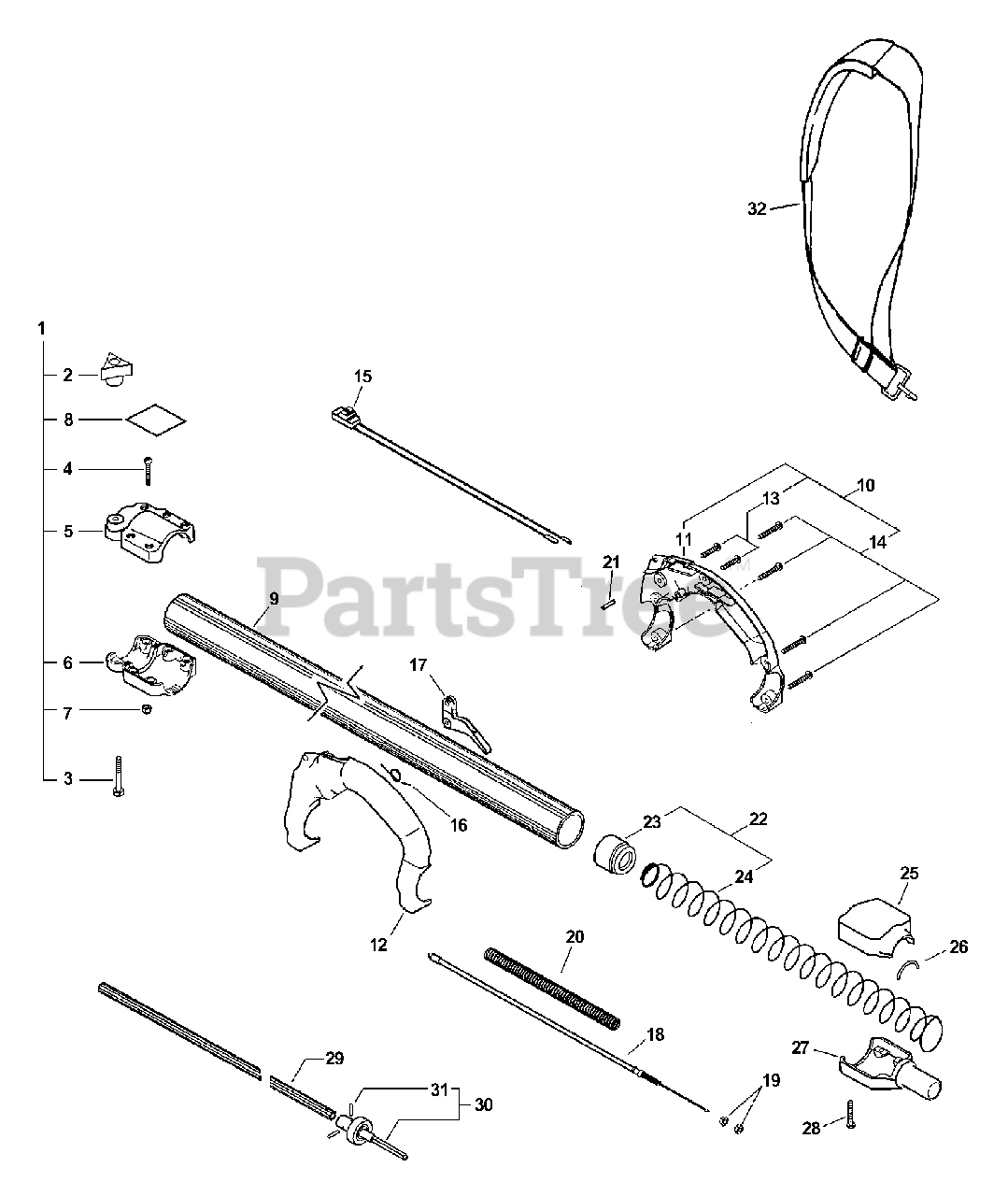

PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Handle, Ignition Switch, Throttle Cable, Driveshaft S/N: 001001-505899 Parts Diagram

Pole Saw (Type 1E)

Handle, Ignition Switch, Throttle Cable, Driveshaft S/N: 001001-505899 Parts Diagram

  • Title

1

Echo 61029522360

CLAMP ASSY

Note: INCLUDES ITEMS 2-8

$42.99

$

Usually ships in 2-4 days

0

2

Echo 13040622360

THUMBSCREW

$6.99

$

In Stock, Qty 10

0

3

Echo 90005100100

SCREW
(Superseded to V204000090)

$0.99

$

In Stock, Qty 13

0

4

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

5

Echo 61028222460

COLLAR, UPPER

$19.99

$

In Stock, only 2 left!

0

6

Echo 61028222360

COLLAR, LOWER

$33.99

$

In Stock, only 2 left!

0

7

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

8

Echo 89016022360

LABEL - CAUTION
(Superseded to 89007522760)

$9.49

$

Usually ships in 2-4 days

0

9

Echo 61022222360

PIPE, MAIN 1.5 ID×60" L

$140.99

$

Usually ships in 2-4 days

0

10

Echo 35110022560

REAR HANDLE ASSY
(Superseded to P021004860)

Note: Includes ITEMS 10-14

$

$

Not available

11

Echo 35112922360

HANDLE, REAR - RIGHT
(Superseded to P021004860)

$

$

Not available

12

Echo 35110122360

HANDLE, REAR - LEFT
(Superseded to P021004860)

$

$

Not available

13

Echo 90005300300

SCREW, TORX

$1.49

$

Usually ships in 2-4 days

0

14

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

15

Echo 16340155631

SWITCH ASSY, ON-OFF

$10.99

$

In Stock, only 2 left!

0

16

Echo 17804322360

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

17

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

18

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

19

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

20

Echo 17801622360

TUBE, FLEXIBLE

$2.49

$

Usually ships in 2-4 days

0

21

Echo 88996022660

PIN, LOCATING 0.17 OD×0.75 L

$0.99

$

In Stock, Qty 19

0

22

Echo 43330722460

BUSHING ASSY, FLOATING

Note: INCLUDES ITEMS 23-24

$20.99

$

In Stock, only 2 left!

0

23

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0

24

Echo 10494022560

SPRING, COMPRESSION

$12.99

$

Usually ships in 2-4 days

0

25

Echo 61081022360

CAP, MAIN PIPE
(Superseded to P021003540)

$14.99

$

In Stock, only 2 left!

0

26

Echo 10491022460

CUSHION

$2.49

$

In Stock, only 2 left!

0

27

Echo 61024822360

COUPLING, MAIN PIPE
(Superseded to C510000050)

$30.99

$

In Stock, only 2 left!

0

28

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

29

Echo C504000260

DRIVESHAFT

$55.99

$

In Stock, only 2 left!

0

30

Echo P021006370

SHAFT CONNECTOR KIT

Note: INCLUDES ITEM 31

$42.99

$

In Stock, only 2 left!

0

31

Echo V645000000

PIN 0.098"×0.687"

$0.99

$

In Stock, Qty 10

0

32

Echo 30100022060

STRAP ASSY, SHOULDER

$35.99

$

In Stock, only 2 left!

0
