PPT-2400 - Echo Pole Saw (Type 1E) (Original Version) Intake, Exhaust Parts Diagram

Pole Saw (Type 1E)

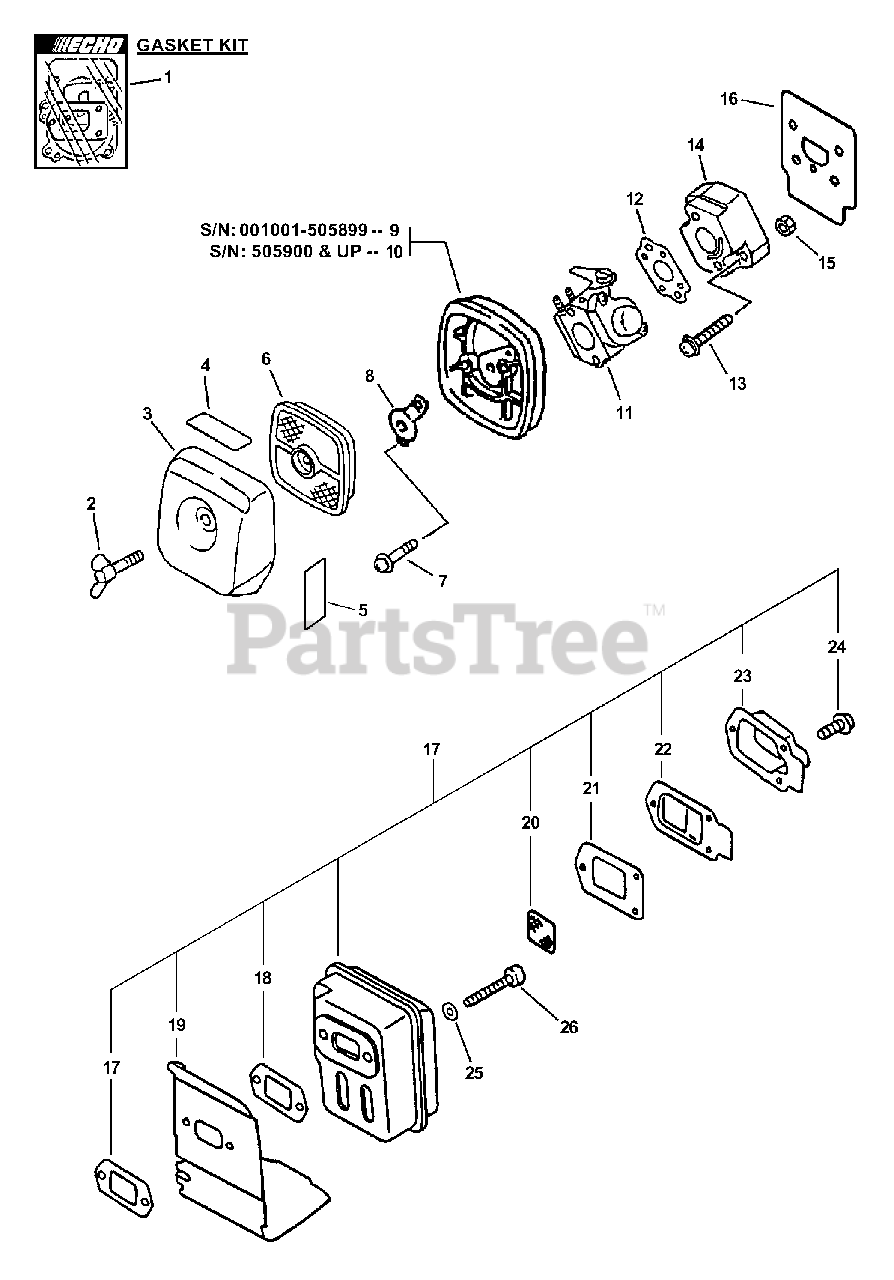

Intake, Exhaust Parts Diagram

  • Title

1

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

4

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 17

0

5

Echo 89033452730

LABEL, METERING
(Superseded to Discontinued)

$

$

Not available

6

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

7

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

$4.99

$

In Stock, Qty 7

0

9

Echo 13030706761

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

Note: S/N: 001001-505899

$23.99

$

In Stock, only 2 left!

0

10

Echo 13030744530

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

Note: S/N: 505900 & UP

$23.99

$

In Stock, only 2 left!

0

11

Echo 12300052132

CARBURETOR - WT-424B
(Superseded to 12300052133)

$113.99

$

In Stock, only 1 left!

0

12

Echo 13001005960

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 6

0

13

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

14

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 12

0

17

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: INCLUDES ITEMS 18-24

$

$

Not available

18

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

19

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

20

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

21

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, only 2 left!

0

22

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

23

Echo 14581852130

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

24

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

25

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

26

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0
