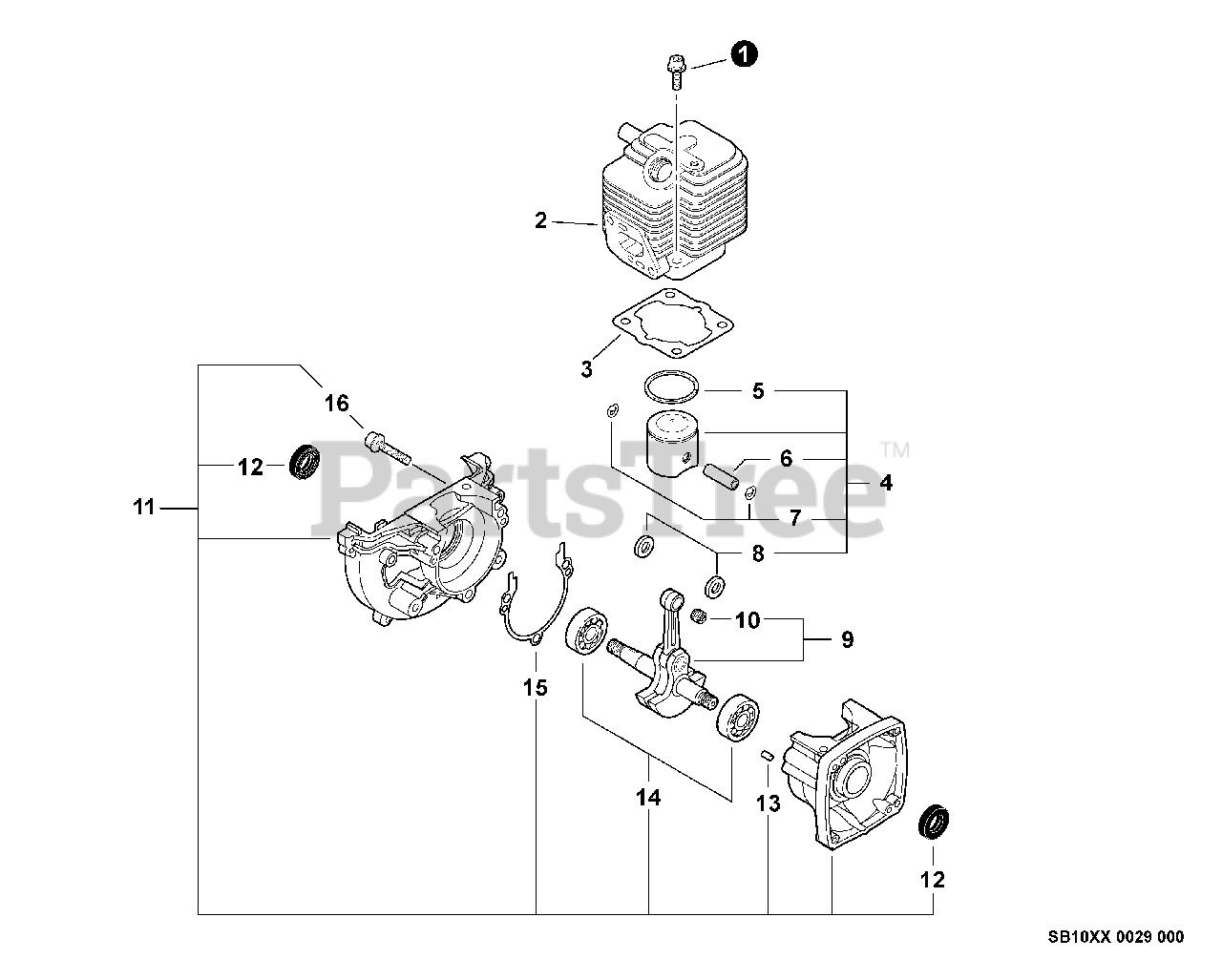

PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Engine Parts Diagram

Pole Saw (Type 1E)

Engine Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

2

Echo 10101108961

CYLINDER

$282.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

4

Echo 10000052130

PISTON KIT

Note: Includes ITEMS 5-7

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001121230

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 10

$186.99

$

Usually ships in 2-4 days

0

10

Echo V553000060

BEARING, NEEDLE - 8

$12.99

$

In Stock, only 2 left!

0

11

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes ITEMS 12-16

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0
