PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Fuel System Parts Diagram

Pole Saw (Type 1E)

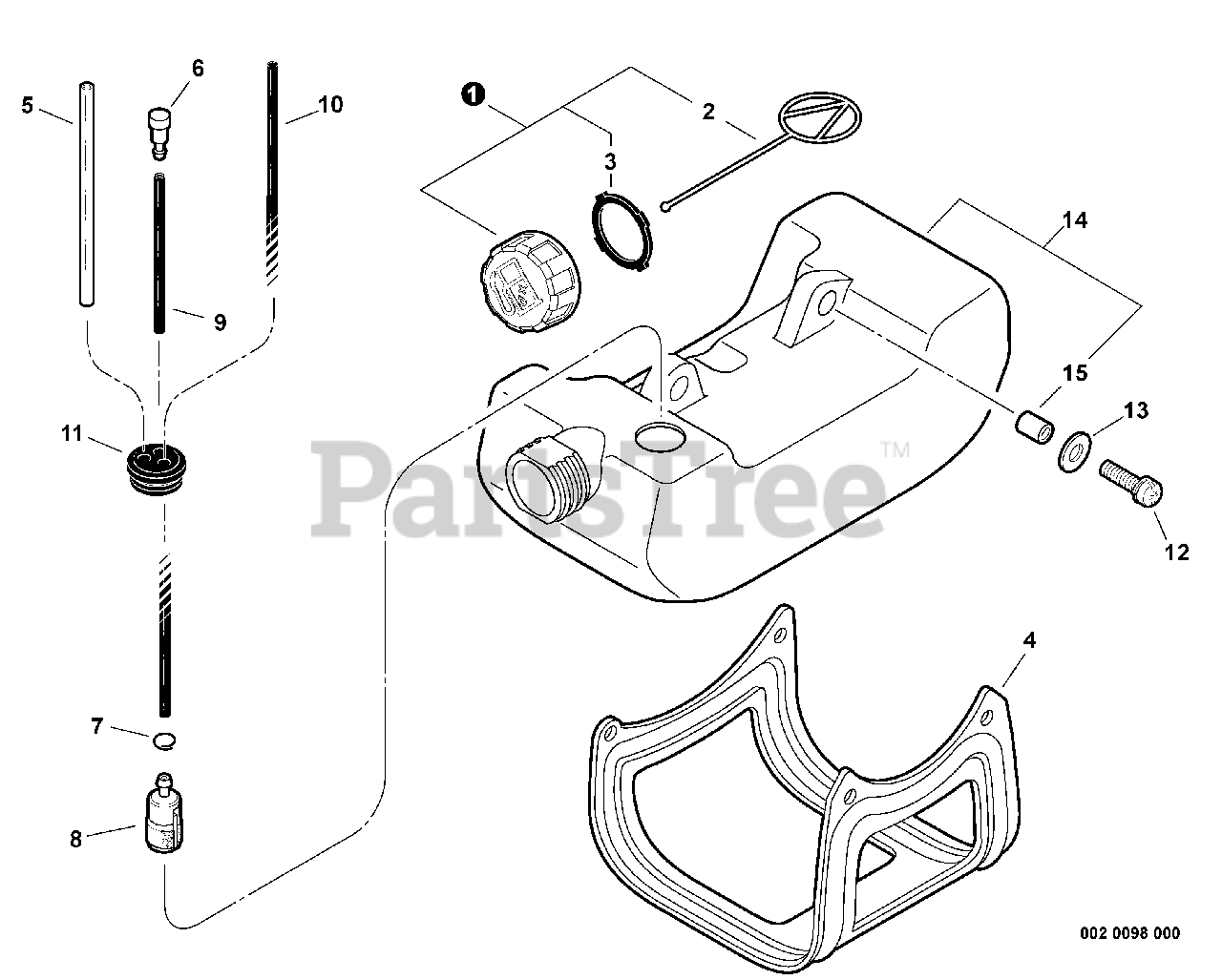

Fuel System Parts Diagram

  • Title

1

Echo 131004-08960

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$

$

Not available

2

Echo 131051-52430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

5

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 8

0

6

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

7

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

8

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$6.49

$

In Stock, Qty 20+

0

9

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

10

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

$1.99

$

In Stock, Qty 20+

0

11

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

12

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

13

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 13100546831

TANK, FUEL

Note: Includes ITEM 15

$18.99

$

In Stock, only 2 left!

0

15

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0
