PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Fuel System Parts Diagram

Pole Saw (Type 1E)

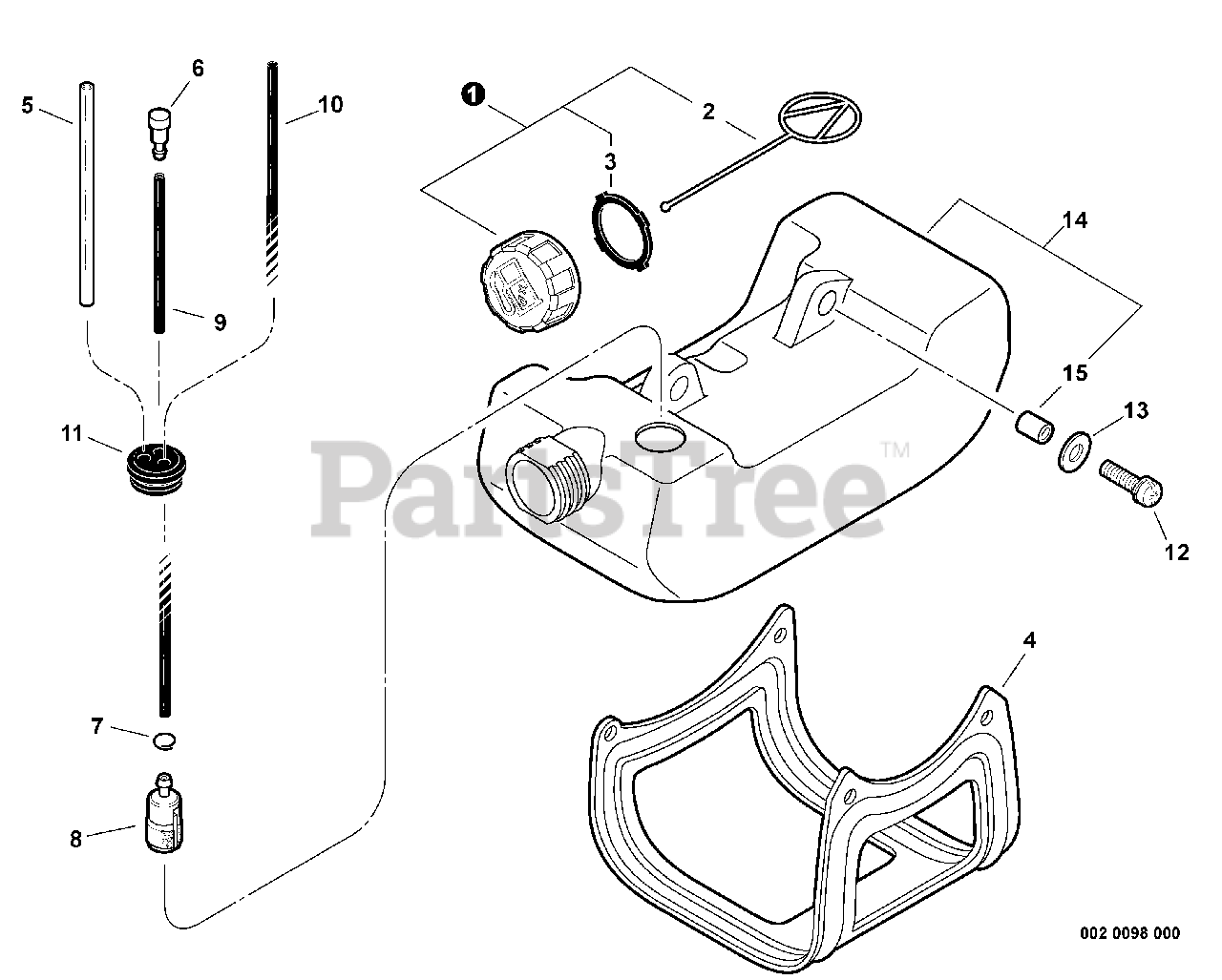

Fuel System Parts Diagram

  • Title

1

Echo 13100408960

CAP ASSY
(Superseded to P100006620)

Note: Includes ITEMS 2-3

$7.99

$

Usually ships in 2-4 days

0

2

Echo 13105152430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

5

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$6.49

$

In Stock, Qty 20+

0

9

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

10

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

$1.99

$

In Stock, Qty 20+

0

11

Echo 13211546730

GROMMET

$2.49

$

In Stock, Qty 20+

0

12

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13100546831

FUEL TANK ASSY

Note: Includes ITEM 15

$16.99

$

In Stock, only 2 left!

0

15

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 8

0
