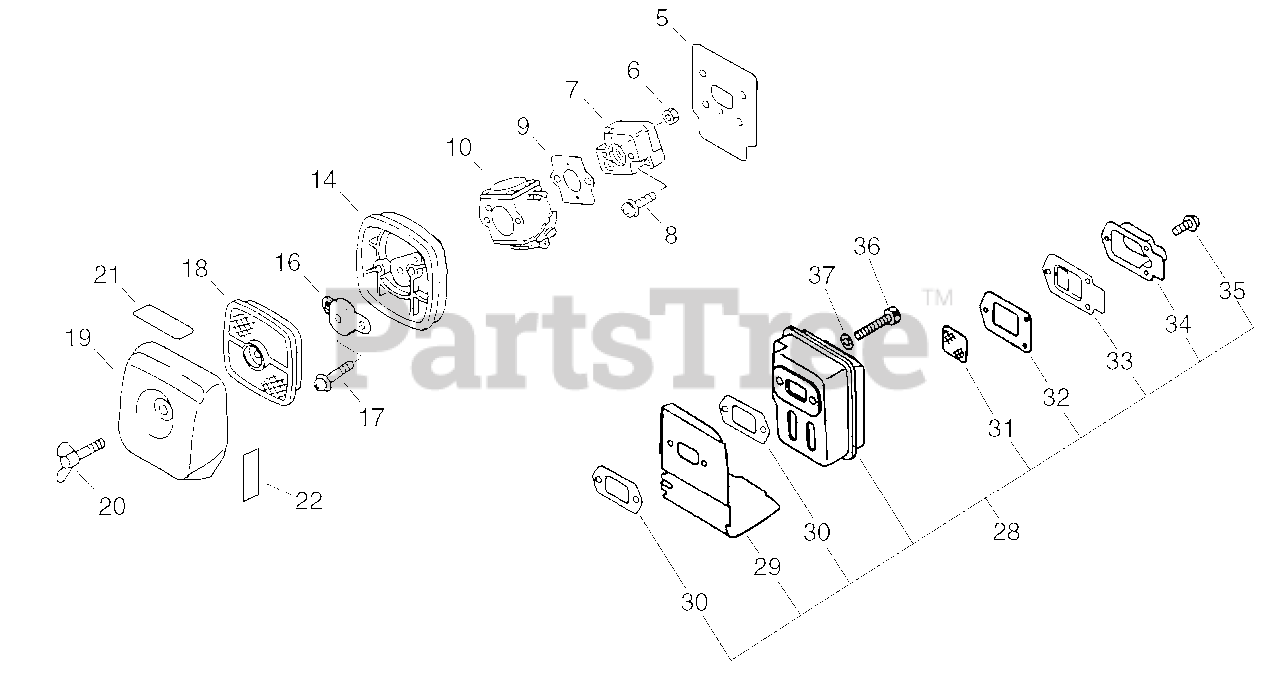

PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Intake, Exhaust Parts Diagram

Pole Saw (Type 1E)

Intake, Exhaust Parts Diagram

  • Title

5

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 7

0

8

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 5

0

9

Echo 13001005960

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 6

0

10

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

14

Echo 13030706761

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

$23.99

$

In Stock, only 2 left!

0

16

Echo 12901106361

PLATE, PREVENT

$4.99

$

In Stock, Qty 7

0

17

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

18

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$8.99

$

In Stock, Qty 20+

0

19

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

20

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 13

0

21

Echo 89033452730

LABEL, METERING
(Superseded to Discontinued)

$

$

Not available

22

Echo 89033252730

LABEL, CHOKE

$1.49

$

In Stock, Qty 20+

0

28

Echo 14580052633

MUFFLER ASSY

Note: Includes ITEMS 29-35

$

$

Not available

29

Echo A320000251

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0

30

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

31

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

32

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 1 left!

0

33

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

34

Echo 14581852130

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

35

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

36

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

37

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
